Part 2: FPGA Chip
The FPGA development board uses Xilinx's KINTEX UltraScale FPGA
chip, model number XCKU040-2FFVA1156I. The speed class is 2 and the
temperature class is industrial. This model is a FFVA1156 package with 1156
pins and a 1.0mm pitch. The chip naming rules for Xilinx KINTEX UltraScale
FPGA are shown in Figure 2-1 below:

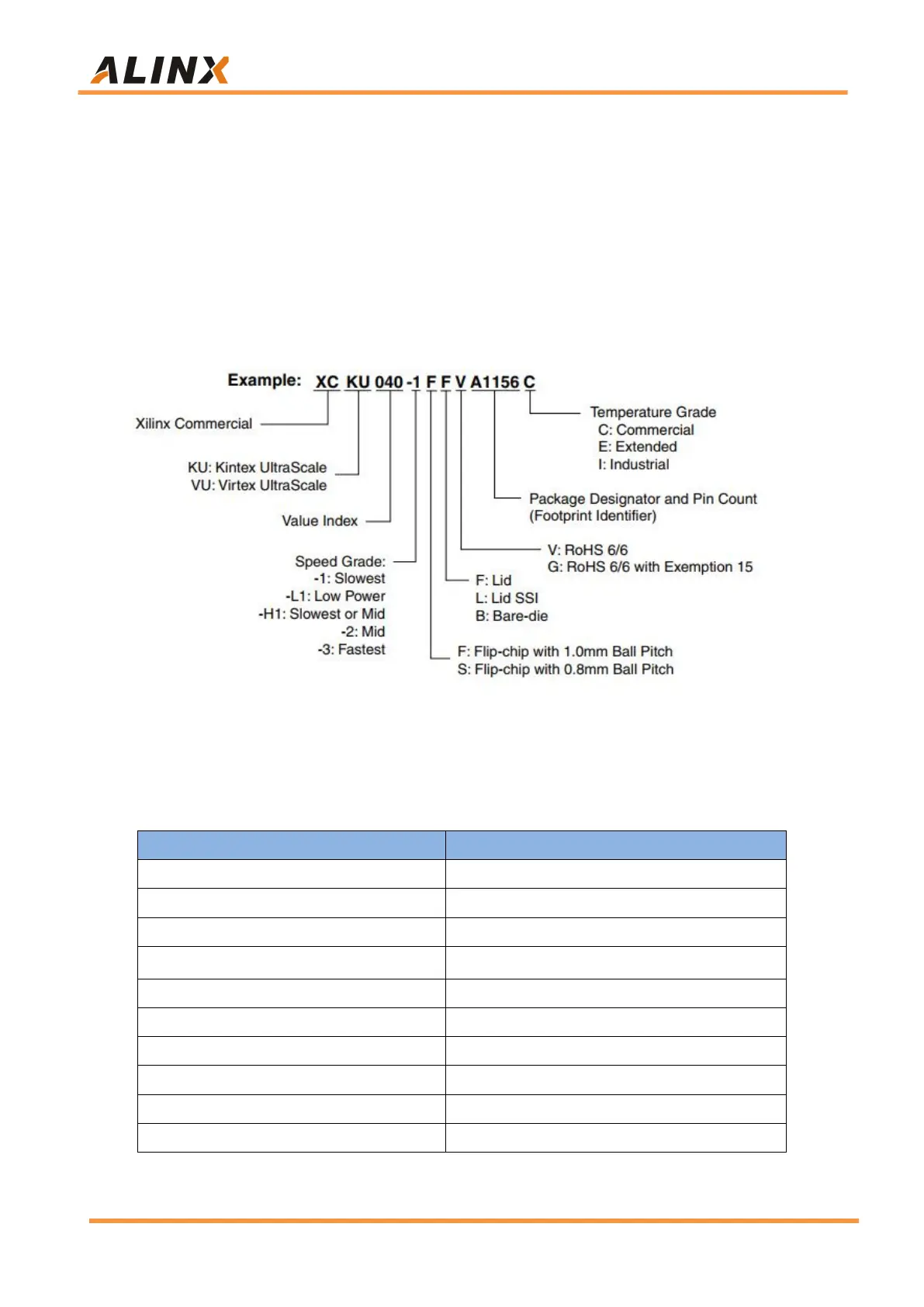

Figure 2-1: The Chip Model Definition of KINTEX UltraScale Series
The main parameters of the FPGA chip XCKU040 are as follows
Name
Specific parameters
Logic Cells
530,250
CLB Look-Up-Tables
242,400
CLB flip-flops
41,600
Block RAM（kb）
21.1
DSP Slices
1,920
PCIe Gen3 x 8
3
XADC
12bit, 1Mbps AD
GTP Transceiver
20, 16.3Gb/s max
Speed Grade
-2
Temperature Grade
Industrial
