Allen-Bradley 1305 Series User Manual

Programming
5-42
This group of parameters contains values that can be helpful in explaining the operation of the drive. Drive
status, direction, control and alarm conditions are included.
Diagnostics
[
Drive Command
]
Parameter # 58
[Drive
Command]
Parameter Type Read Only
This parameter displays the status of the drive commands
This
parameter
displays
the
status
of
the
drive
commands
in an 8-bit binary format.

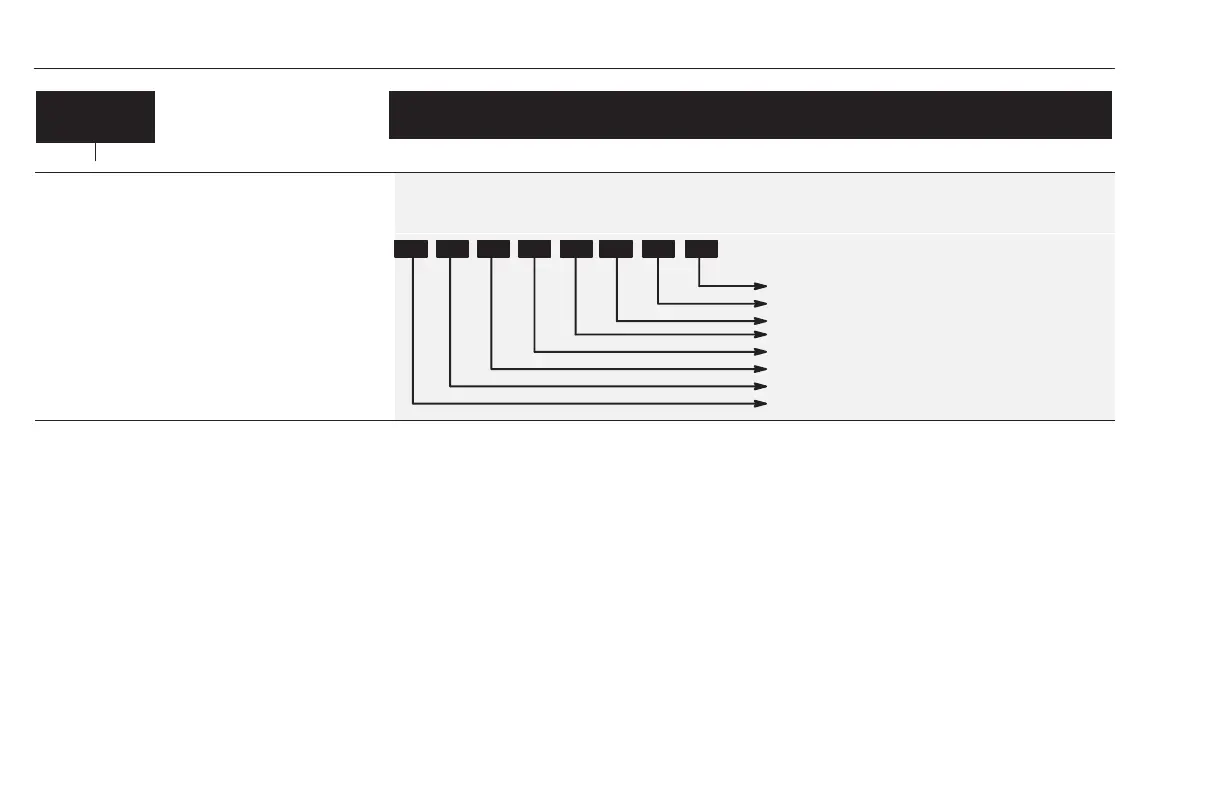

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
“Reverse”
“Decel 2”
Not Used
Not Used
Not Used
“Run”
Not Used
“Accel 2”
Run
Reverse
Accel 2
Decel 2
N/A
N/A
N/A
N/A
