Allen-Bradley 1305 Series User Manual

Installation/Wiring
2-10

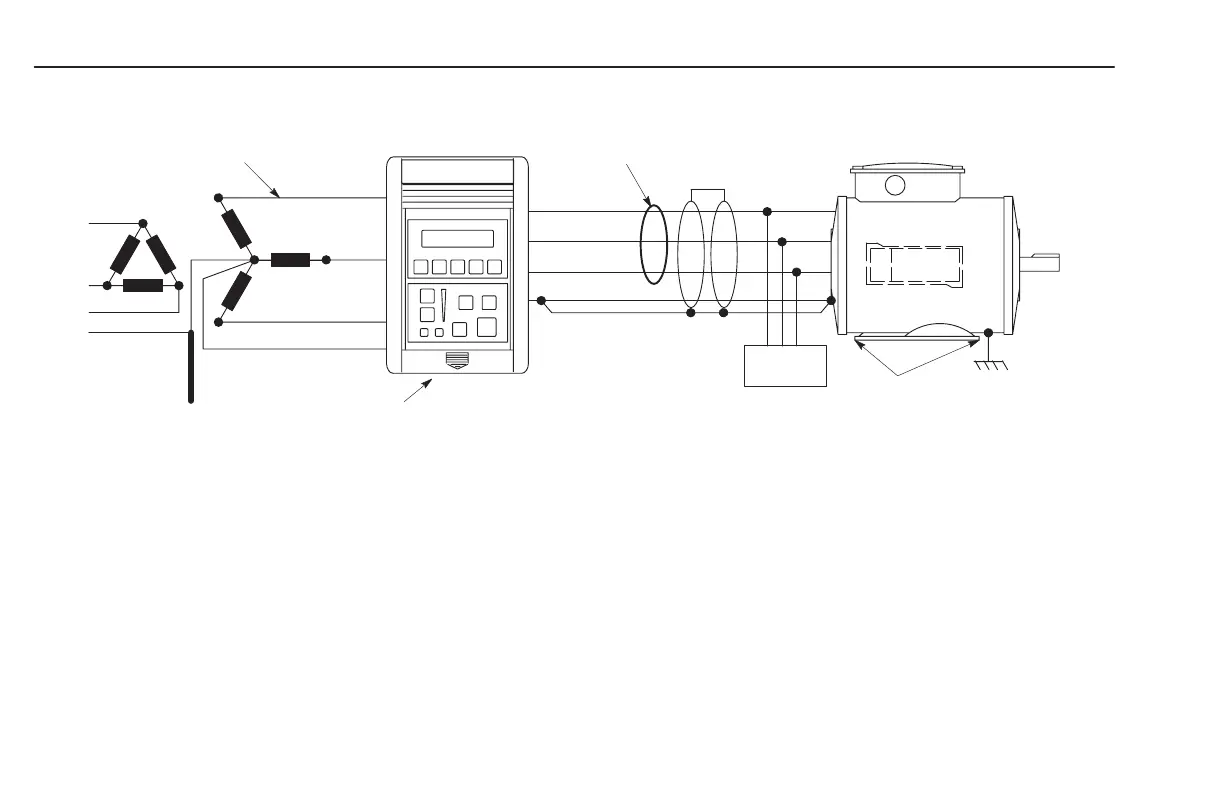

Figure 2.5 Recommended 1305 Grounding for Installation Without EMI Filter (Non–CE)
R(L1)
S(L2)
T(L3)
GRD
U(T1)
V(T2)
W(T3)
GRD
Conduit/4-Wire Cable
Ground Rod
Shield
Shield*
Common
Mode Core*
Motor
Terminator*
Motor
Frame
Ground Per
Local Codes
* These are options that can be installed as needed.
Standard unit has plastic conduit
entry. For installation with EMI
filter (CE), see Appendix D.
