Allen-Bradley 1305 Series User Manual

Human Interface Module
3-9
PROGRAM AND DISPLAY MODES (continued)

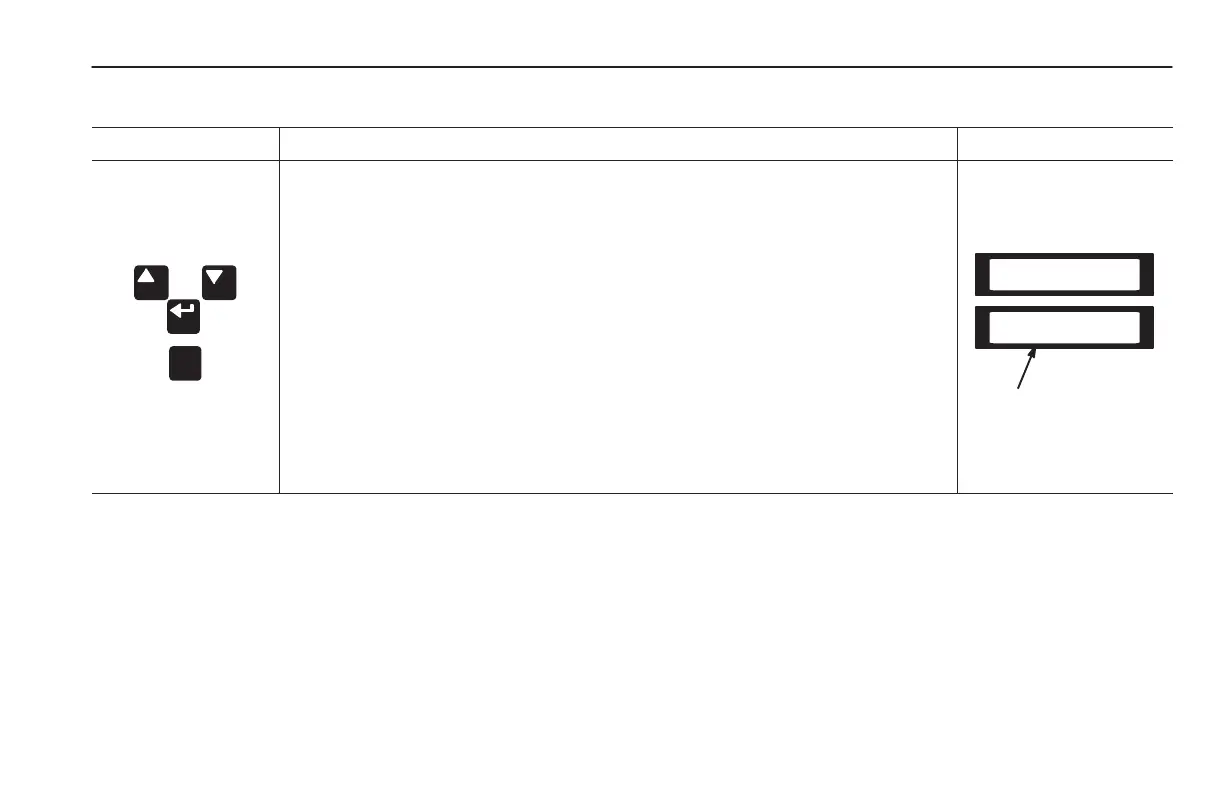

ACTION
DESCRIPTION
HIM DISPLAY
or
SEL
Bit ENUMs ❏ 3. With Series A HIM software versions 3.00 and above, or Series B HIM
software version 1.01 and above, bit ENUMs (16 character text strings)
will be displayed to aid interpretation of bit parameters.
a. From the Choose Group menu, use the Increment/Decrement key to
select the Masks group. Press Enter.
b. Press the SEL key to view the ENUM of the first bit. Pressing this key
again will move the cursor to the left one bit or digit and view the next
bit’s ENUM.
Adapter 4
X1111111
Choose Group
Mask
Flashing
