86 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
Chapter 3 Mount the Kinetix 5700 Drive System

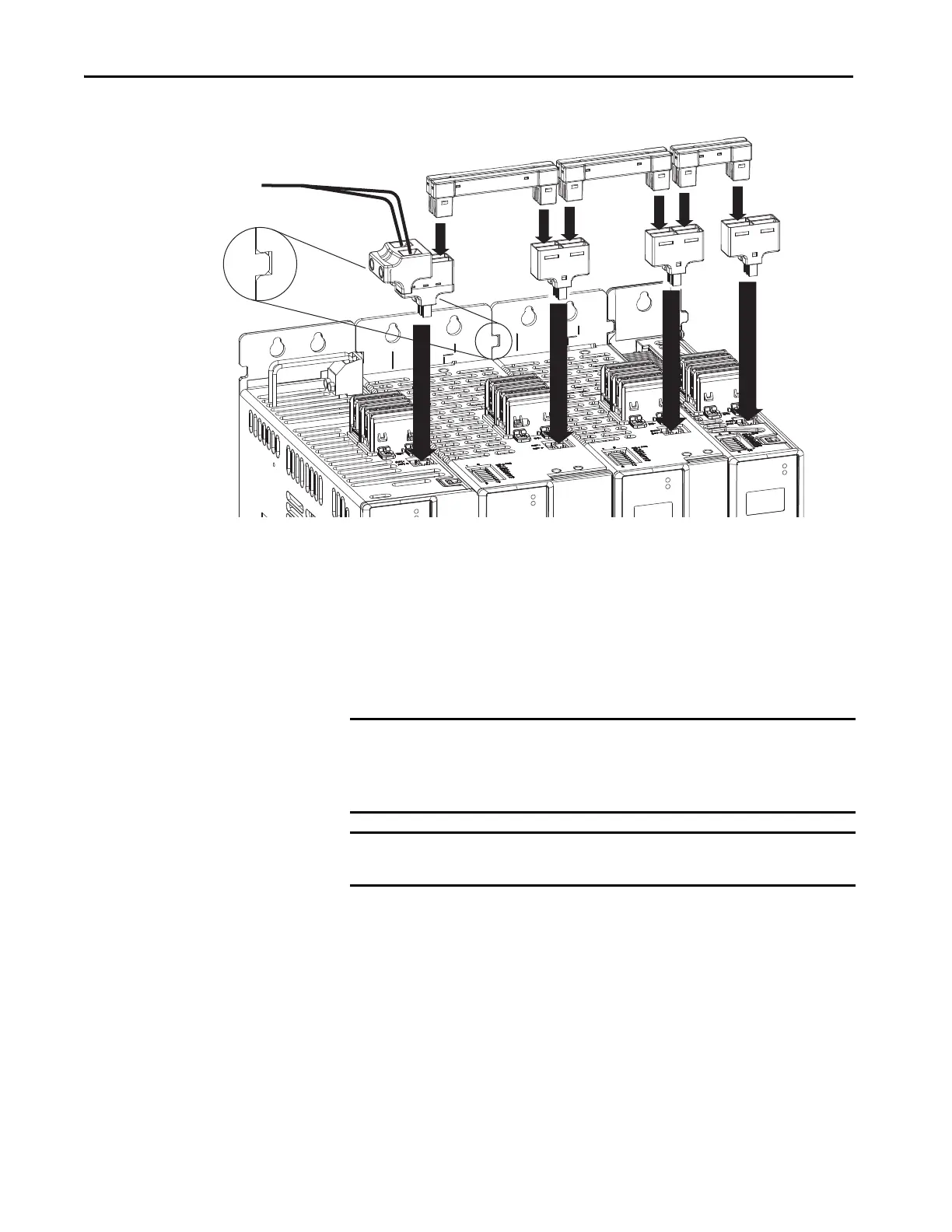

Figure 50 - 24V Connector Example
The three 24V input power components must assemble from left to right
across the drive system.
1. Attach wiring to 24V input wiring connector.
2. Insert input wiring connector and T-connectors into the appropriate
drive module connectors.
3. Insert bus-bars to connect between wiring connector and T-connectors.
The following configurations require more than one 24V input wiring
connector:
• The 40 A maximum current rating is exceeded
• The 2198-RPxxx regenerative bus supply is positioned between the
inverters or accessory modules in any single cluster
• The 2198-RPxxx regenerative bus supply is positioned to the right of
any other module
24V Input Wiring
Connector
24V
T-connectors
Bus-bar
Connectors
24V Input Wiring
Zero-stack Tab
and Cutout Engaged
Kinetix 5700 Drive System
DC-bus power supply is mounted
leftmost followed by drive with
largest amp rating.
100 mm
Bus-bar
85 mm
Bus-bar
55 mm
Bus-bar
IMPORTANT The input wiring connector can be inserted into any drive module (mid-
stream in the drive system) to begin a new 24V control bus when the
maximum current value is reached. However, the input connector must
always extend the 24V DC-bus from left to right.
IMPORTANT Mount the 24V power supply as close to the drive system as possible to
minimize voltage drop on the 24V input power wiring.
