The Kinetix 7000 drive system shown in Figure 3 below illustrates a regenerative
power only configuration with a 8720MC regenerative power supply (RPS). The
harmonic filter and varistor are available separately, but are included with the
RPS unit when ordering the 8720MC-RPS065BM-HV2. In this configuration
the Kinetix 7000 drive provides motoring power and the 8720MC-RPS065
provides regenerative power.

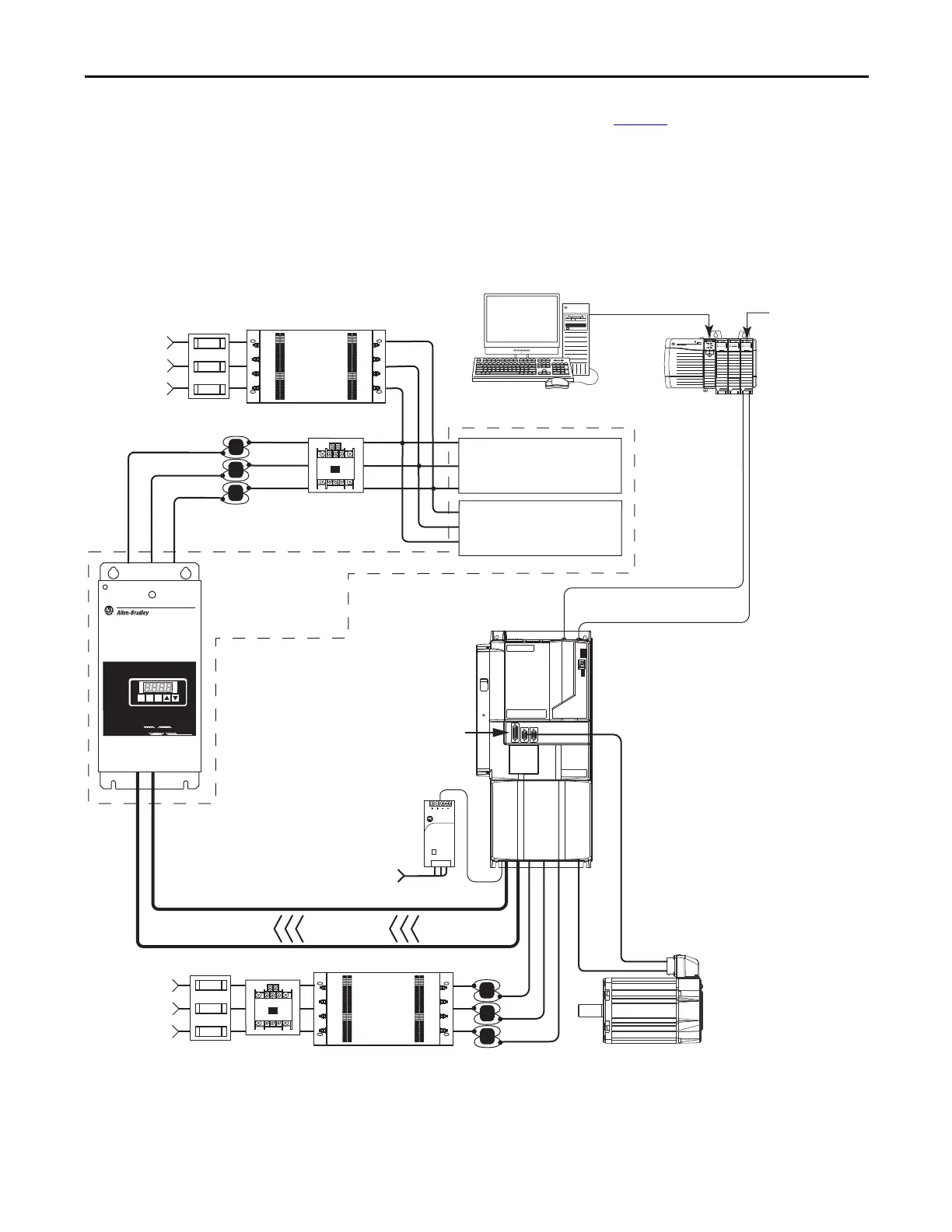

Figure 3 - Kinetix 7000 System Configuration with AC Input and Regenerative Power Supply
1606-XL
Power Supply
Input
Allen-Bradley
R E G E NE R AT IV E P O WE R S U P P LY
REGENERA
TIVE POWER
SUPPLY
8720
8720
MC
MC
RST
PRG
ENT
READY
READY
FAULT
FAULT
PROGRAM
PROGRAM
kW
kW
V
A
Encoder
Feedback
Cable
2090-SCxxx-x
SERCOS Fiber-optic Ring
DC Bus
8720MC-RPS065BM-HV2
Regenerative Power Supply
8720MC-LRxx
Line Reactor
Three-phase
Input Power
8720MC-VA-B Varistor
Included with
8720MC-RPS065BM-HV2.
8720MC-HF-B2 Harmonic Filter
Included with
8720MC-RPS065BM-HV2.
Magnetic
Contactor
Motor
Power
Cable
1606-XLxxx
24V DC
Control Power
8720MC-RFI80
AC Line Filter
(required for CE)
Input
Fusing
Three-phase
Input Power
Magnetic
Contactor
Input
Fusing
1321-3R Type Line Reactor,
3% compatible with
Kinetix 7000 Drive
Regenerative
Power Only
2099-BMxx-S
Kinetix 7000 Drive
2090-K6CK-Dxxx
Low Profile Connector
Kits for I/O, Motor and
Auxiliary Feedback
Control Power
Supply Input
Logix SERCOS
interface Module
ControlLogix Chassis
RSLogix 5000 Software
Logix Controller
Programming Network
Kinetix 7000 High Power
Servo Drive System
2090-XXLF-TCxxxx
AC Line Filter
(required for CE)
HPK-Series Motors, RDD-Series Direct
Drive Motors, MPM-B165xx and MPM-
B215xx, and MPL-B5xxx, MPL-B6xxx,
MPL-B8xxx, and MPL-B9xxx (shown)
Servo Motors
