Allen-Bradley Kinetix 7000 User Manual

Rockwell Automation Publication 2099-UM001D-EN-P - December 2012 29
Install the Kinetix 7000 Drive System Chapter 2

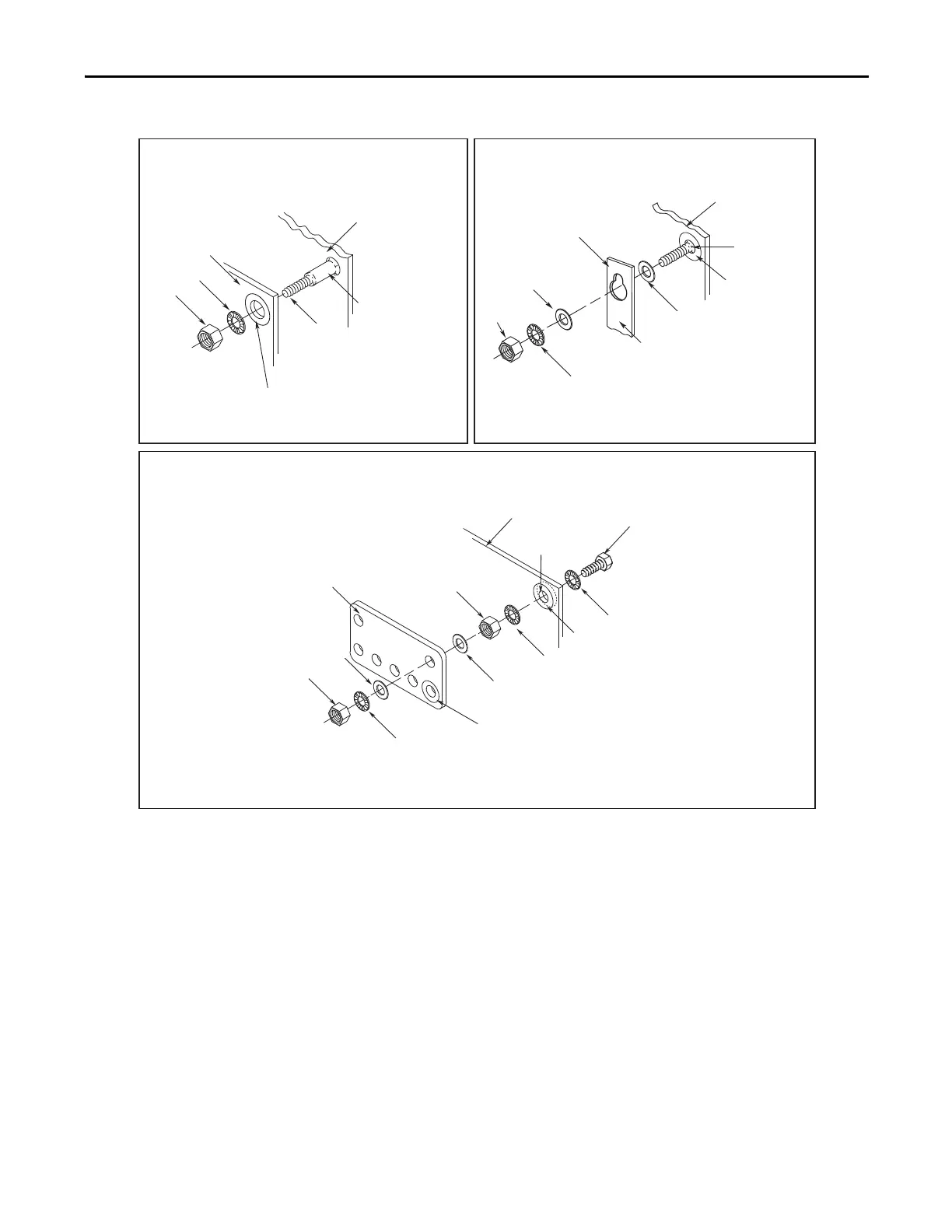

Figure 8 - Recommended Bonding Practices for Painted Panels
Stud-mounting the Subpanel
to the Enclosure Back Wall
Stud-mounting a Ground Bus
or Chassis to the Subpanel
Subpanel
Welded Stud
Scrape Paint
Flat Washer
If the mounting bracket is coated with
a non-conductive material (anodized,
painted, etc.), scrape the material
around the mounting hole.
Star Washer
Nut
Nut
Flat Washer
Mounting Bracket or
Ground Bus
Use a wire brush to remove paint from
threads to maximize ground connection.
Back Wall of
Enclosure
Welded Stud
Subpanel
Star Washer
Use plated panels or scrape paint off
front of panel.
Subpanel
Nut
Nut
Star Washer
Flat Washer
Star
Washer
Star Washer
Scrape paint on both sides of panel
and use star washers.
Tap ped
Hole
Bolt
Flat Washer
Ground Bus or
Mounting Bracket
If the mounting bracket is coated with a non-conductive
material (anodized, or painted for example), scrape the
material around the mounting hole.
Bolt-mounting a Ground Bus or Chassis to the Back-panel
