Design a sequential function chart
Chapter 1
Rockwell Automation Publication 1756-PM006I-EN-P - February 2018 57

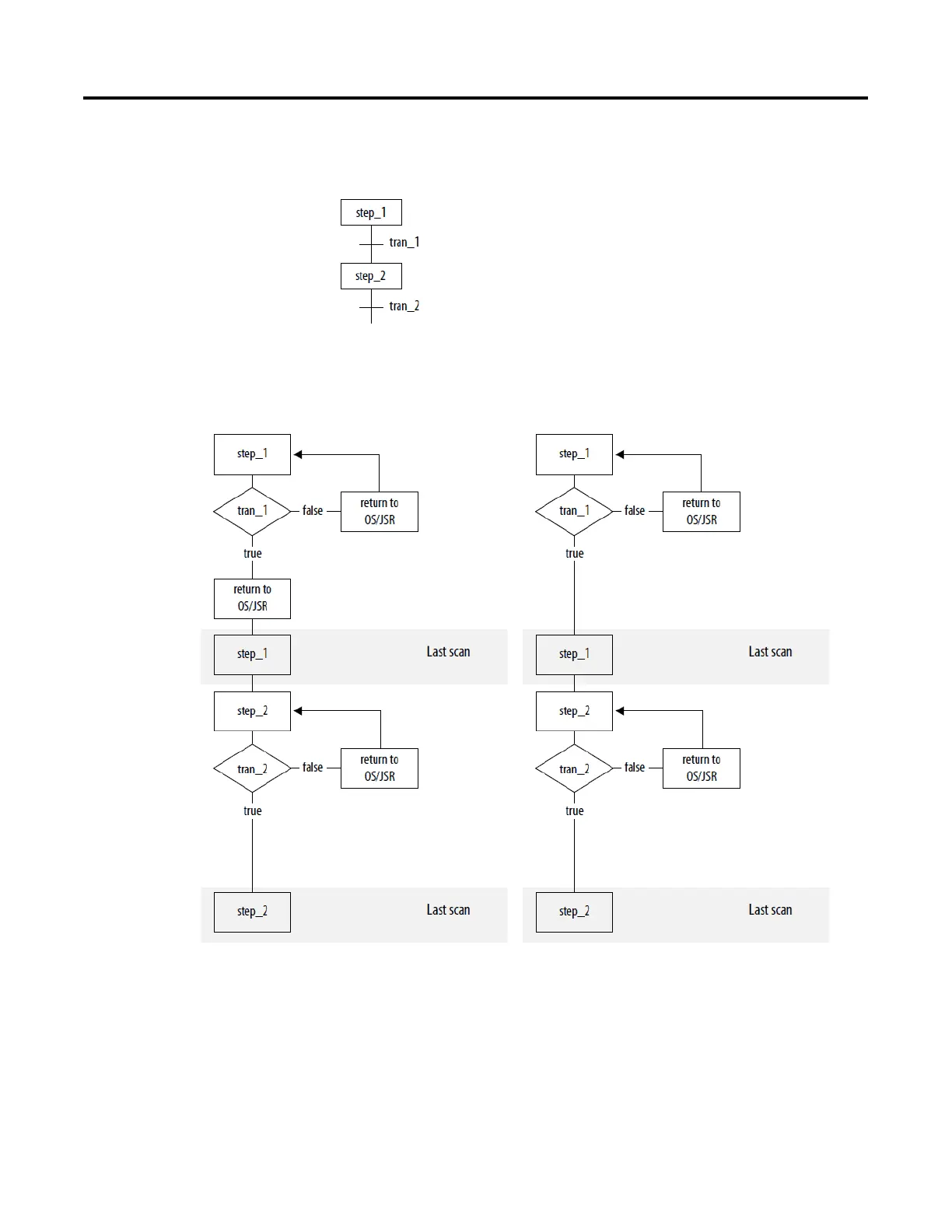

The following diagram shows options for execution control.
This SFC…
…executes like this
Execute current active steps only Execute until FALSE transition
