Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010

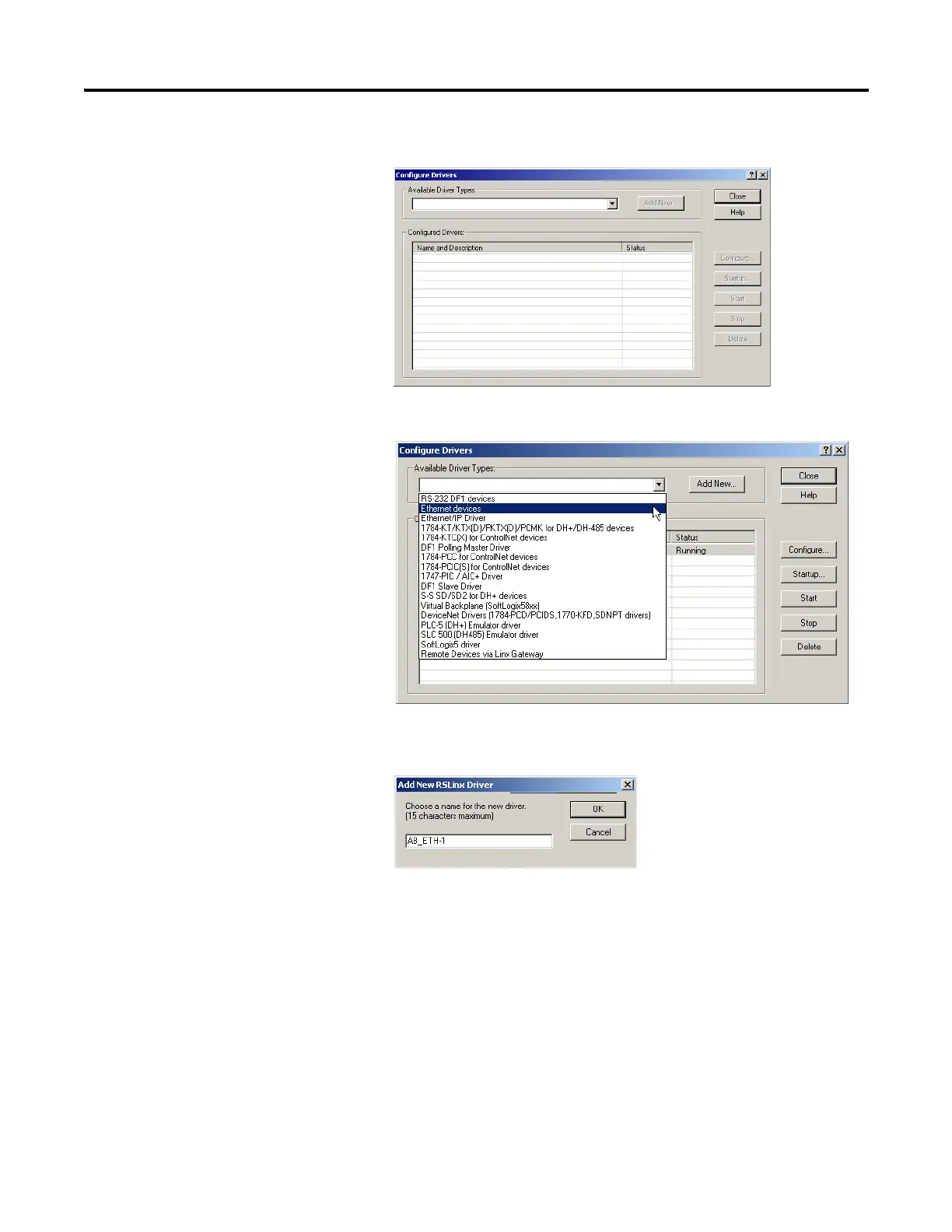

100 Configure the RSLinx Ethernet Communication Driver
2. From the Communications menu, select Configure Drivers.
3. Select Ethernet Devices from the list and click Add/New...
4. Select the default driver name (for example, AB_ETH-1) or type in a
name and click OK.
The Configure driver dialog opens.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
