Publication 1734-UM014A-EN-P - November 2010

Configure the Adapter for Direct Connection in RSLogix 5000 Software 29

Create the Example

Application

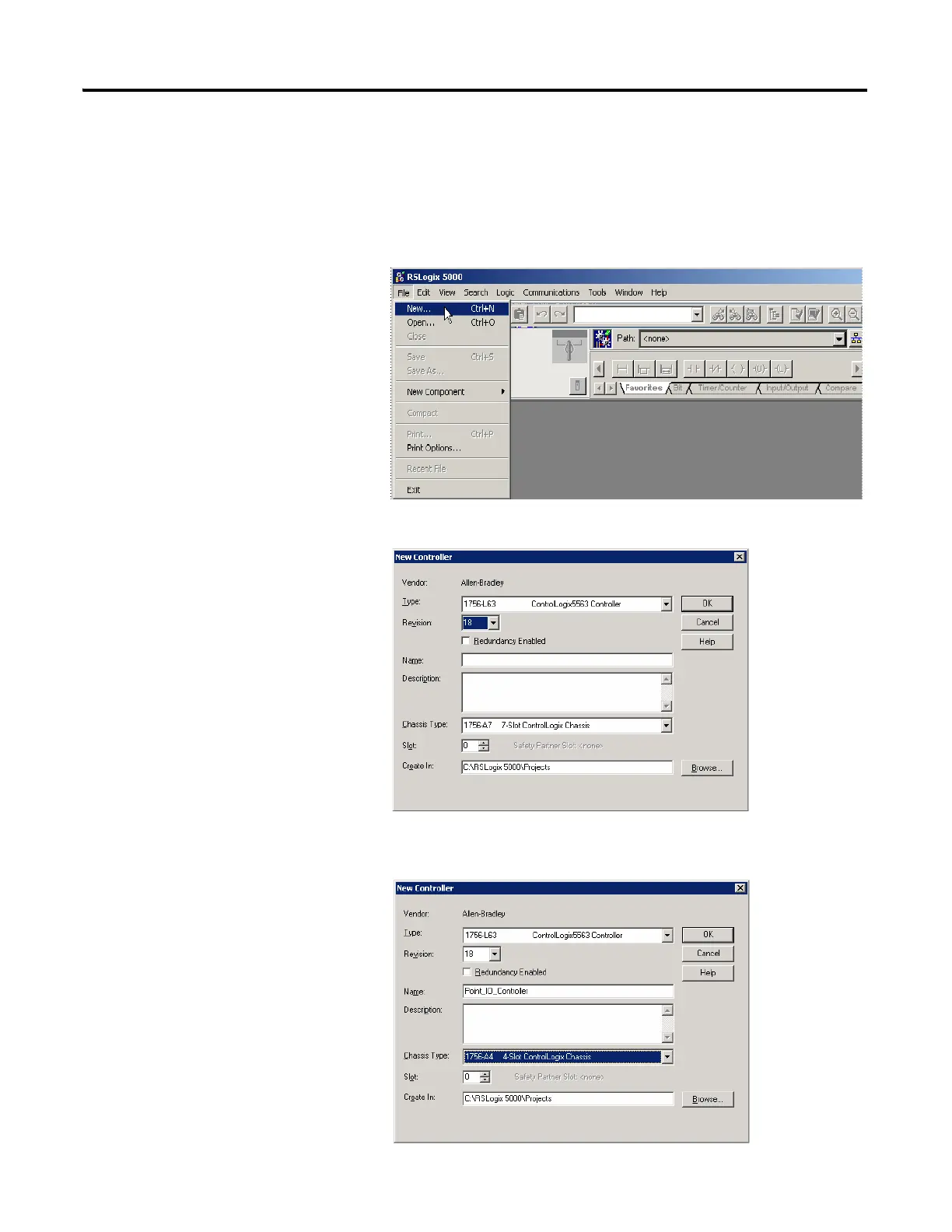

Perform the following steps to create the example application:

1. Start RSLogix 5000 Enterprise Series software to open the

RSLogix 5000 main dialog.

2. From the File menu, select New.

3. The New Controller dialog opens.

4. Enter an appropriate Name for the Controller, for example,

POINT_IO_Controller.
