Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010
Adapter Web Dialogs 89
• Lost/Slot that shows the number of lost packets and the slot number
for the connection, with a slot value of 0 indicating that this is a
rack-optimized connection
• Size of data in bytes
Use the Diagnostic Messaging Page
To use the Diagnostic Messaging page to execute explicit, unconnected
message services, use this procedure.
1. Click Diagnostic Messaging from the tab at the top of the page or panel
on the left.

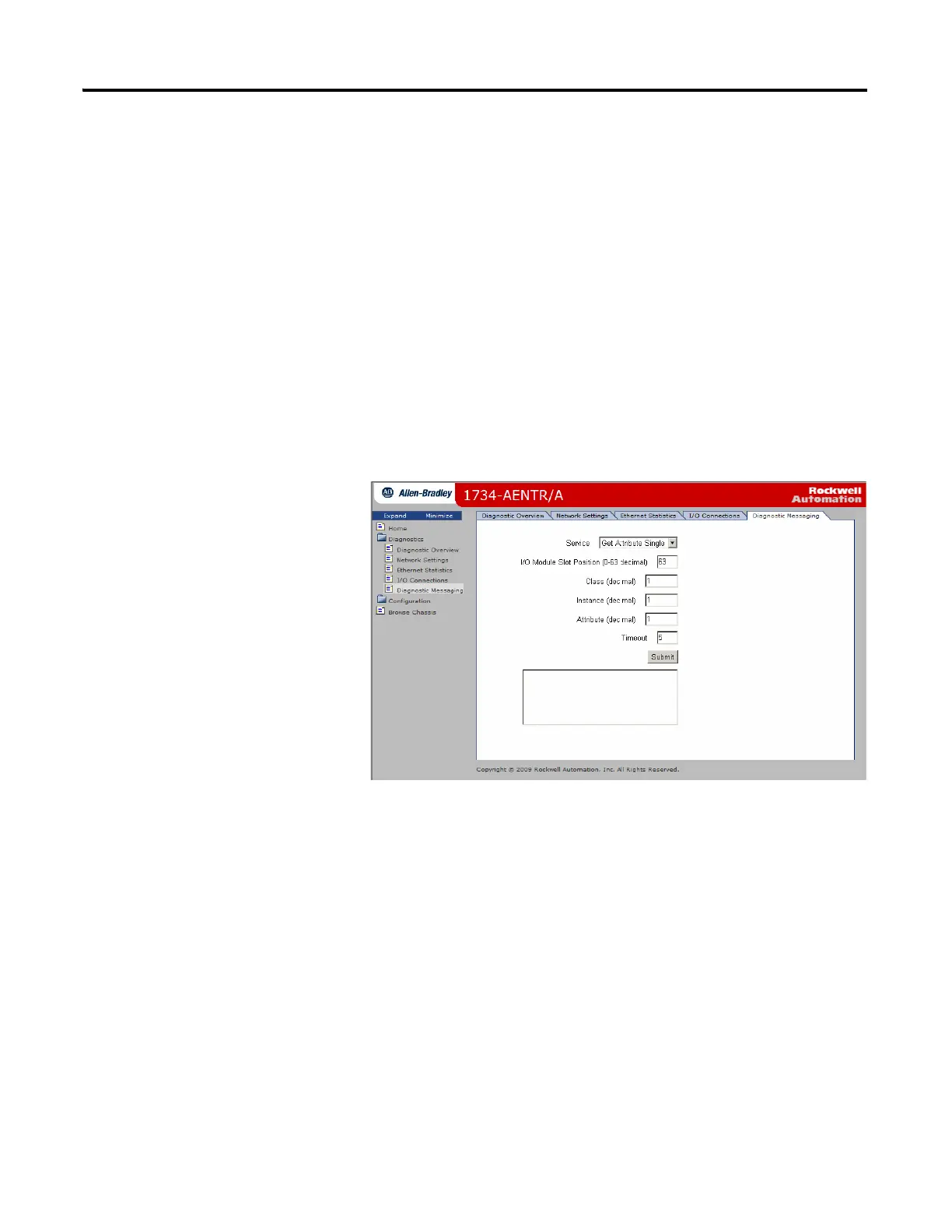

The Diagnostic Messaging page opens.
2. From the Diagnostic Messaging page, enter the following:
• Service – choose either Get Attribute Single or Get Attributes All
• I/O Module Slot Position (0 to 63 decimal)
• Class (decimal)
• Instance (decimal)
• Attribute (decimal)
•Timeout

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
