Publication 1734-UM014A-EN-P - November 2010
Configure the RSLinx Ethernet Communication Driver 103

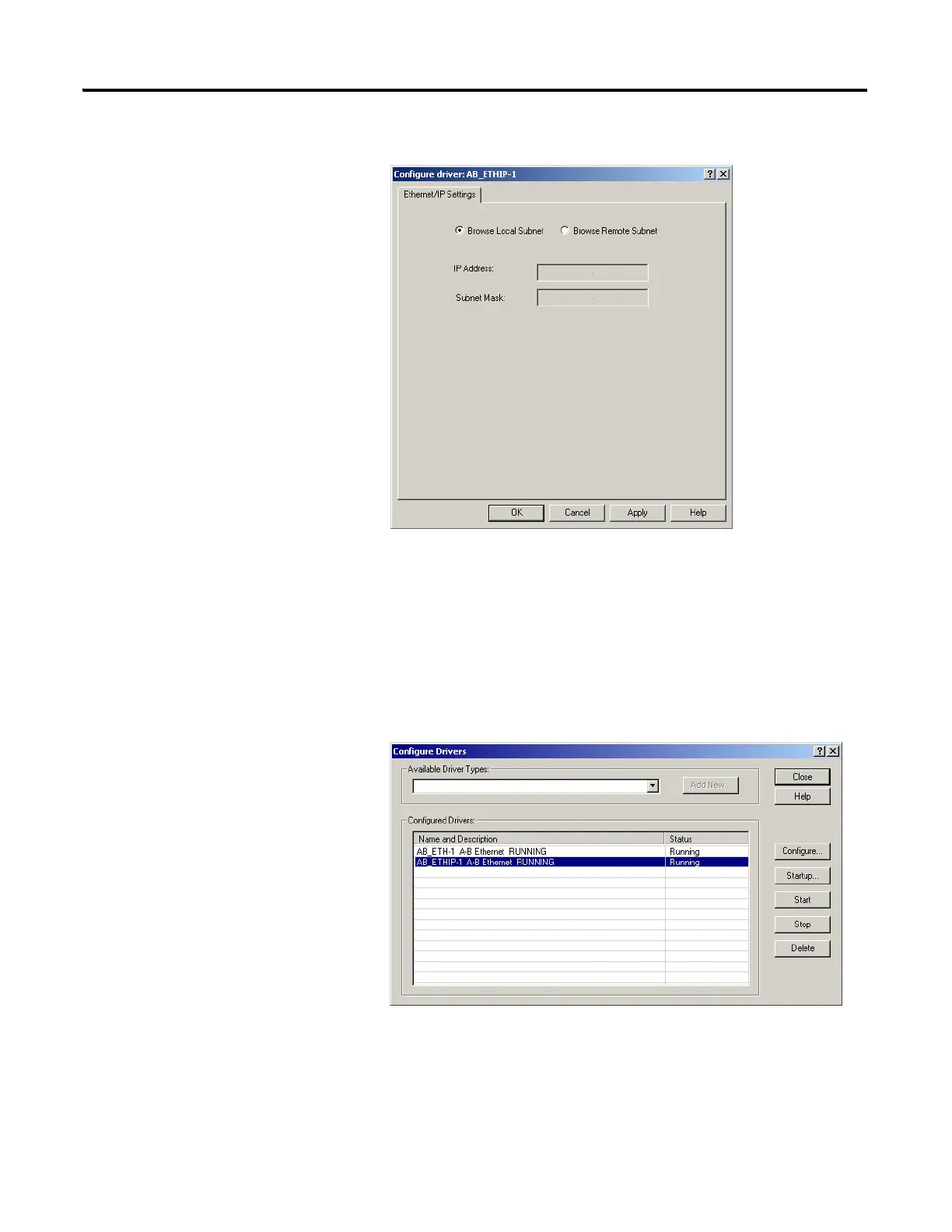

The Configure Driver dialog box opens.
Make sure the Browse Local Subnet button is selected.
The RSLinx software browses your local subnet and automatically reads
the IP address.
4. Click OK.
The AB-ETHIP driver is now configured and appears in the configured
drivers window.
5. Close the RSLinx software
.
