Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010
Install Your Adapter 15
1738-AENTR EtherNet/IP Connectors
1738-AENTR Auxiliary Power Connector
IMPORTANT
Analog modules have earth grounded metal rings. This should be
considered when choosing shielded cables and grounding
techniques.

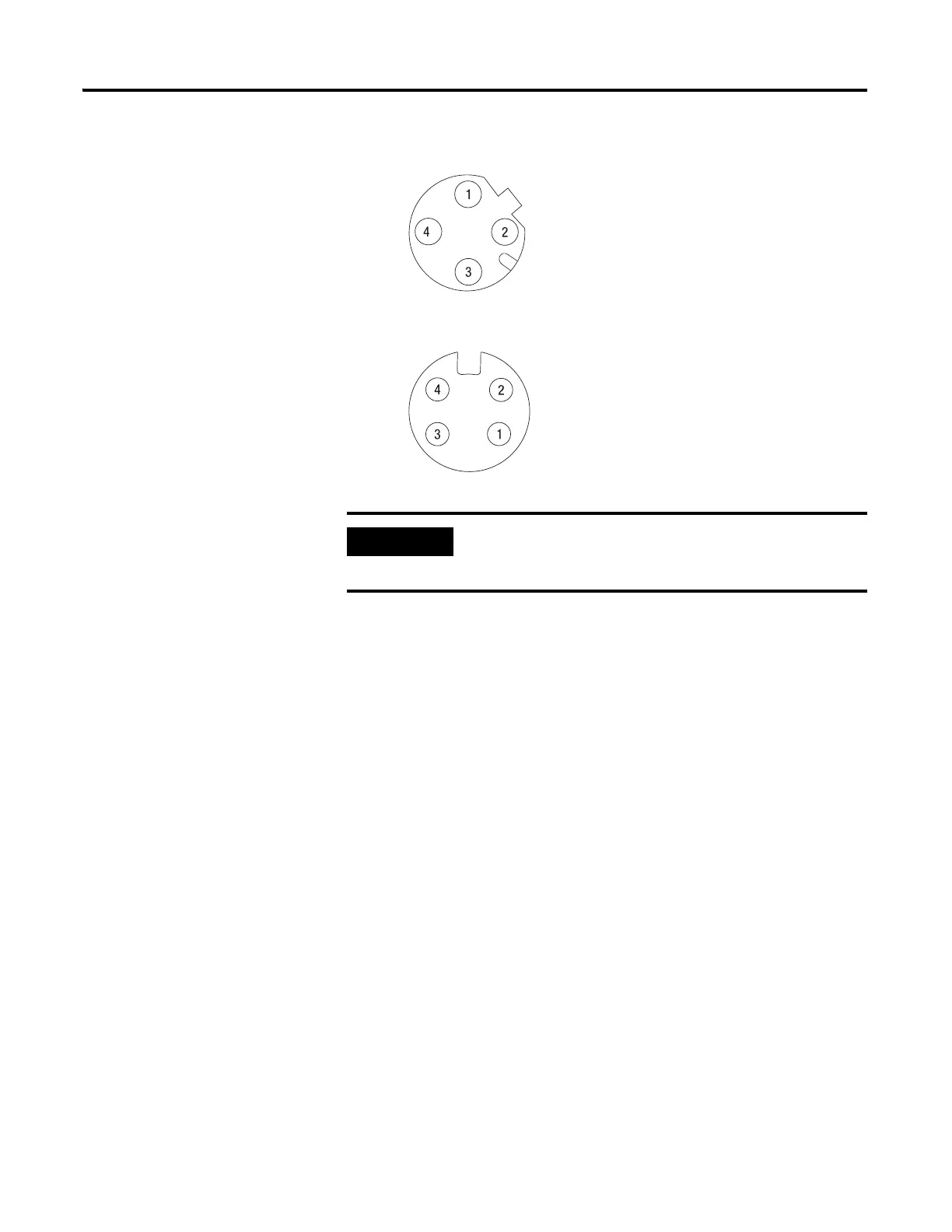

(view into connector)
Pin 1 - Tx +
Pin 2 - Rx +
Pin 3 - Tx -
Pin 4 - Rx -
M12 Female In Connector
43765
(view into connector)
Pin 1 - User power +
Pin 2 - Adapter power +
Pin 3 - Adapter power -
Pin 4 - User power -
43587
M18 Male In Connector

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
