34 Configure the Adapter for Direct Connection in RSLogix 5000 Software

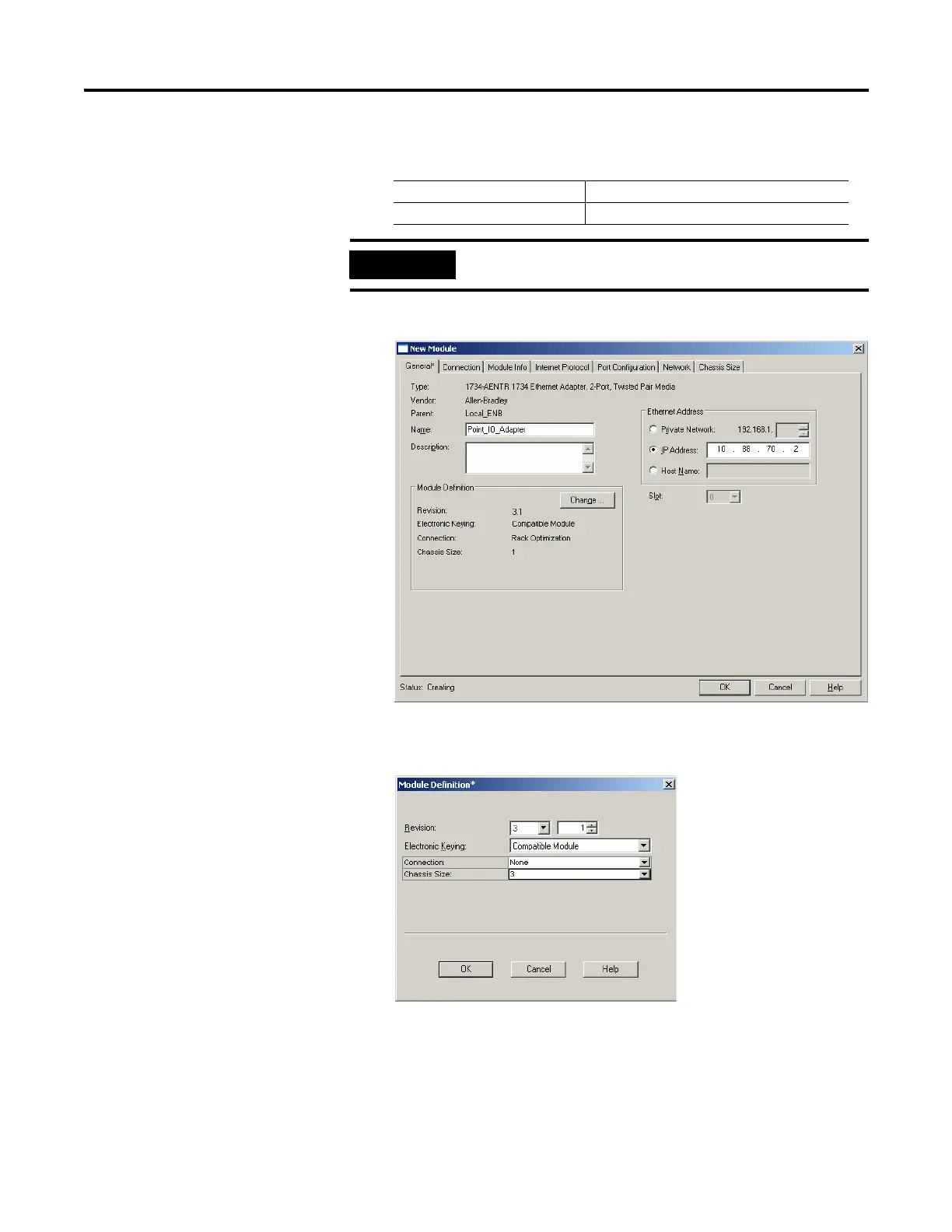

3. Select your adapter from the list, and click OK, noting that we entered
these values on the General Tab of the New Module dialog.
.
The New Module dialog opens.
4. Click Change...
The Module Definition dialog opens.
Name POINT_IO_Adapter
IP Address 10.88.70.2
IMPORTANT
The Slot field appears grey because the slot is automatically 0 for
the 1734-AENTR adapter.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
