Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010

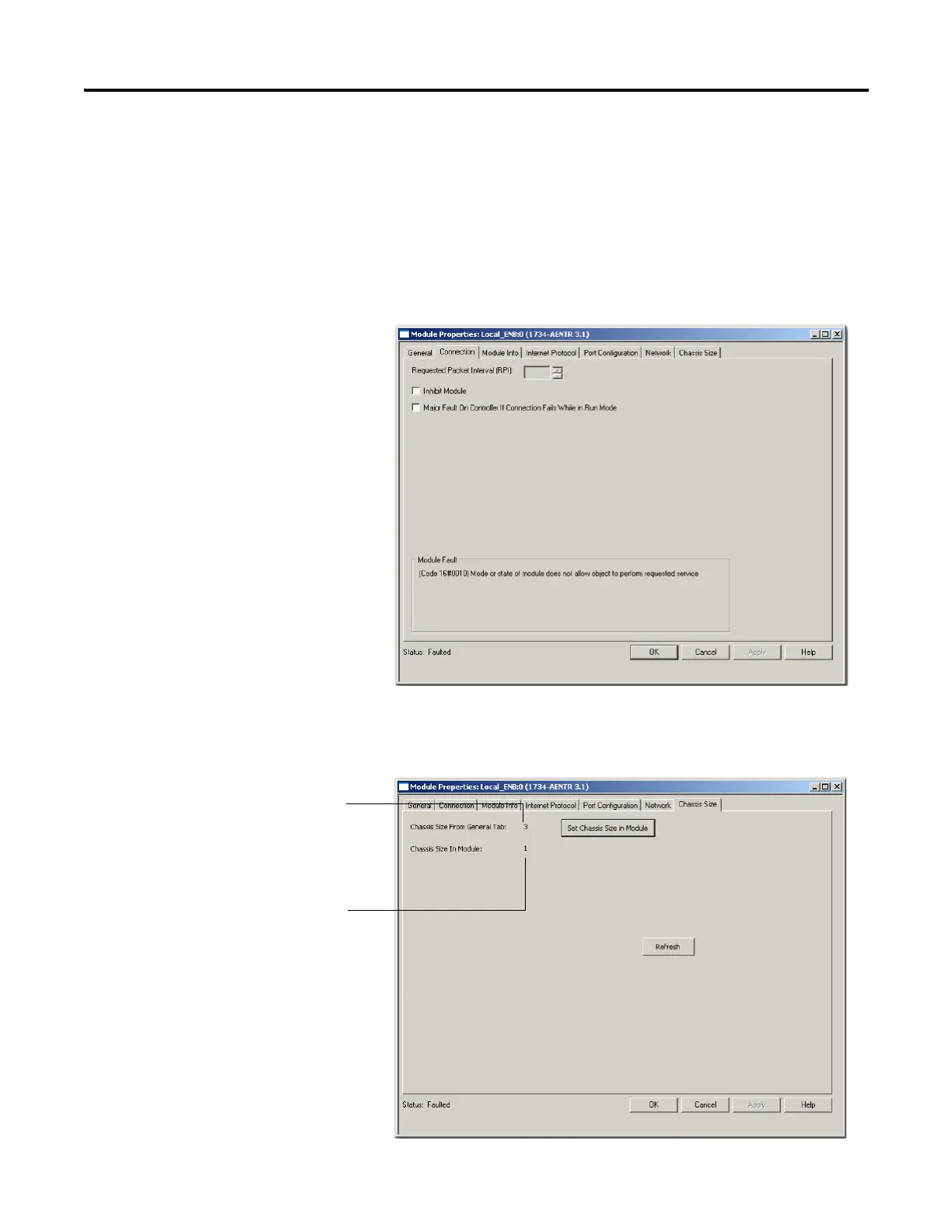

44 Configure the Adapter for Direct Connection in RSLogix 5000 Software
1. Verify that the RSLogix 5000 software is online.
2. In the Project dialog, right-click the 1734-AENTR adapter under I/O
Configuration.
3. Select Properties.
4. Click the Connection tab.
The Module Fault error code displays.
5. Click the Chassis Size tab.
6. Click Set Chassis Size in Module.
Value from
Module Properties
General Tab
Value currently
stored in
1734-AENTR
adapter

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
