Configure the Adapter for Direct Connection in RSLogix 5000 Software 47
The condition where the I/O adapters cannot support the connection due to a

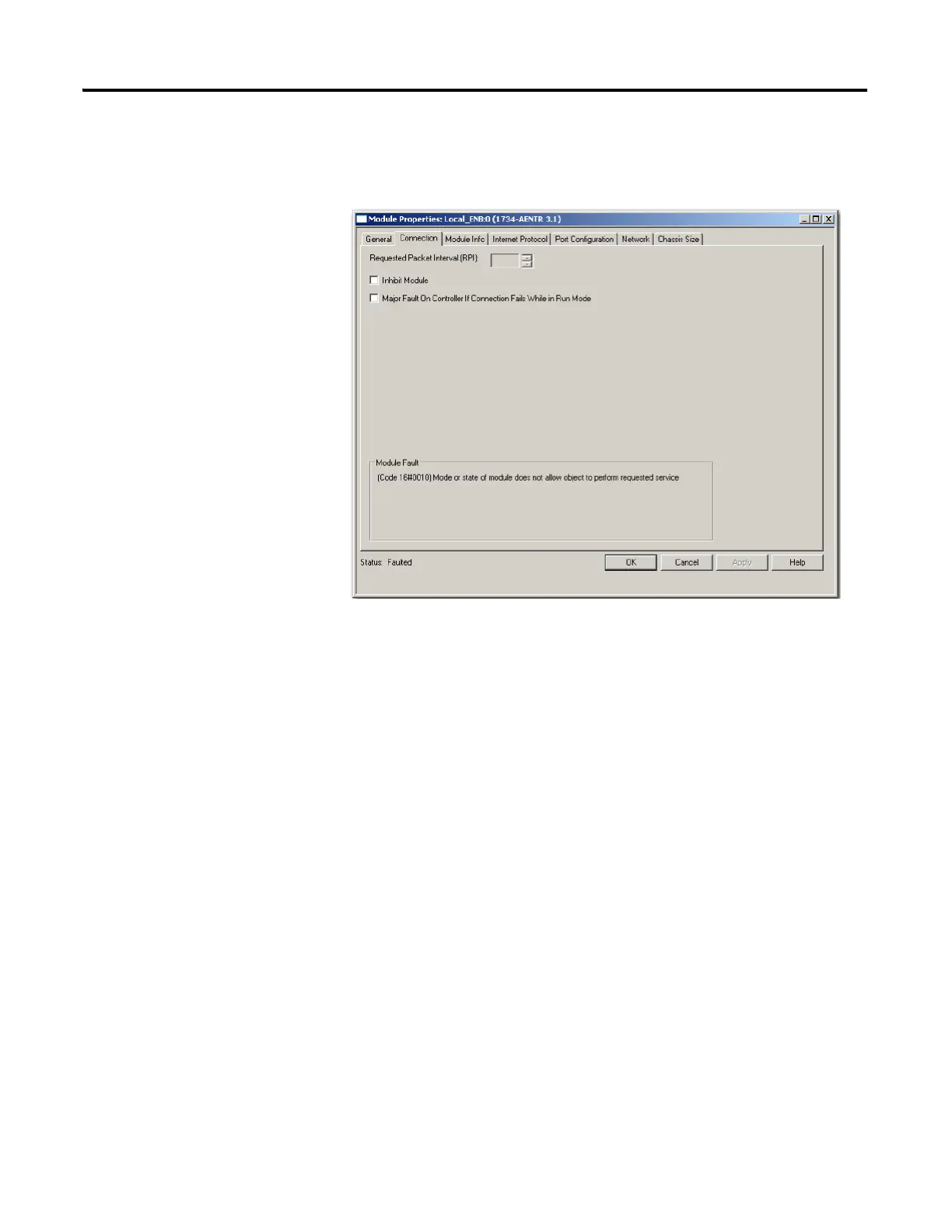

limit of the bandwidth of the microprocessor is shown on the Connection tab
of the Module Properties dialog.
If you encounter this condition, the only action you can take is to alter the
existing connections to reduce the amount of microprocessor bandwidth
consumed. The most likely fixes for this condition include the following:
• Increase the RPI.
• Decrease the number of connections.
• Remove modules from the rack-optimized I/O connection.
• Remove the rack-optimized connection if there are no modules
participating in it.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
