Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 59

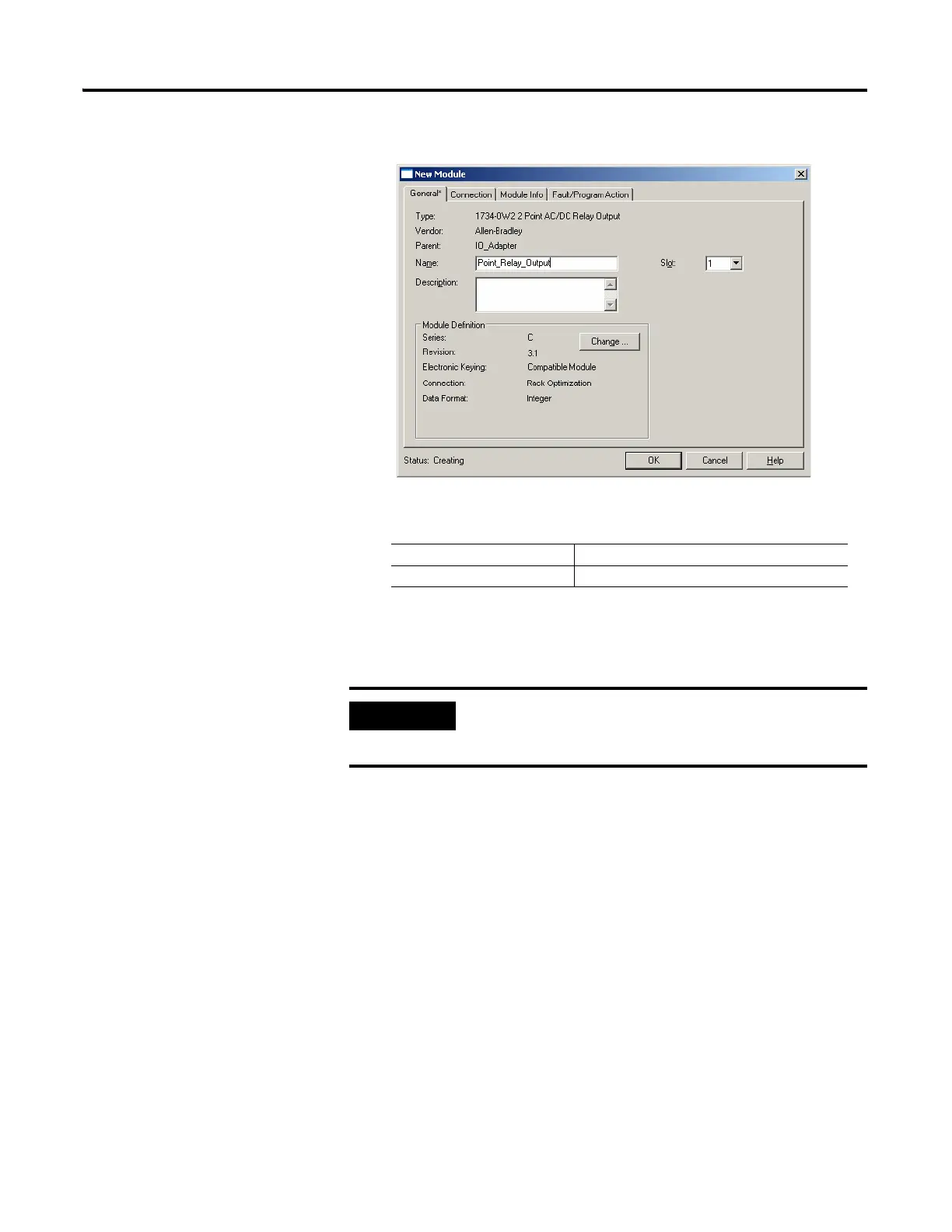

The New Module dialog opens.
4. Click Change... and then enter values for Name and Slot, noting we used
the following values.
5. Note that the requested packet interval (RPI) is the same as was chosen
by the adapter. You use this value for the rack-optimized connection to
the I/O modules.
Name POINT_Relay_Output
Slot 1
IMPORTANT
To avoid overloading the I/O adapter, we recommend that the RPI be
no less than 10 ms for rack connections and 50 ms for direct
connections.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
