Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010
Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 61

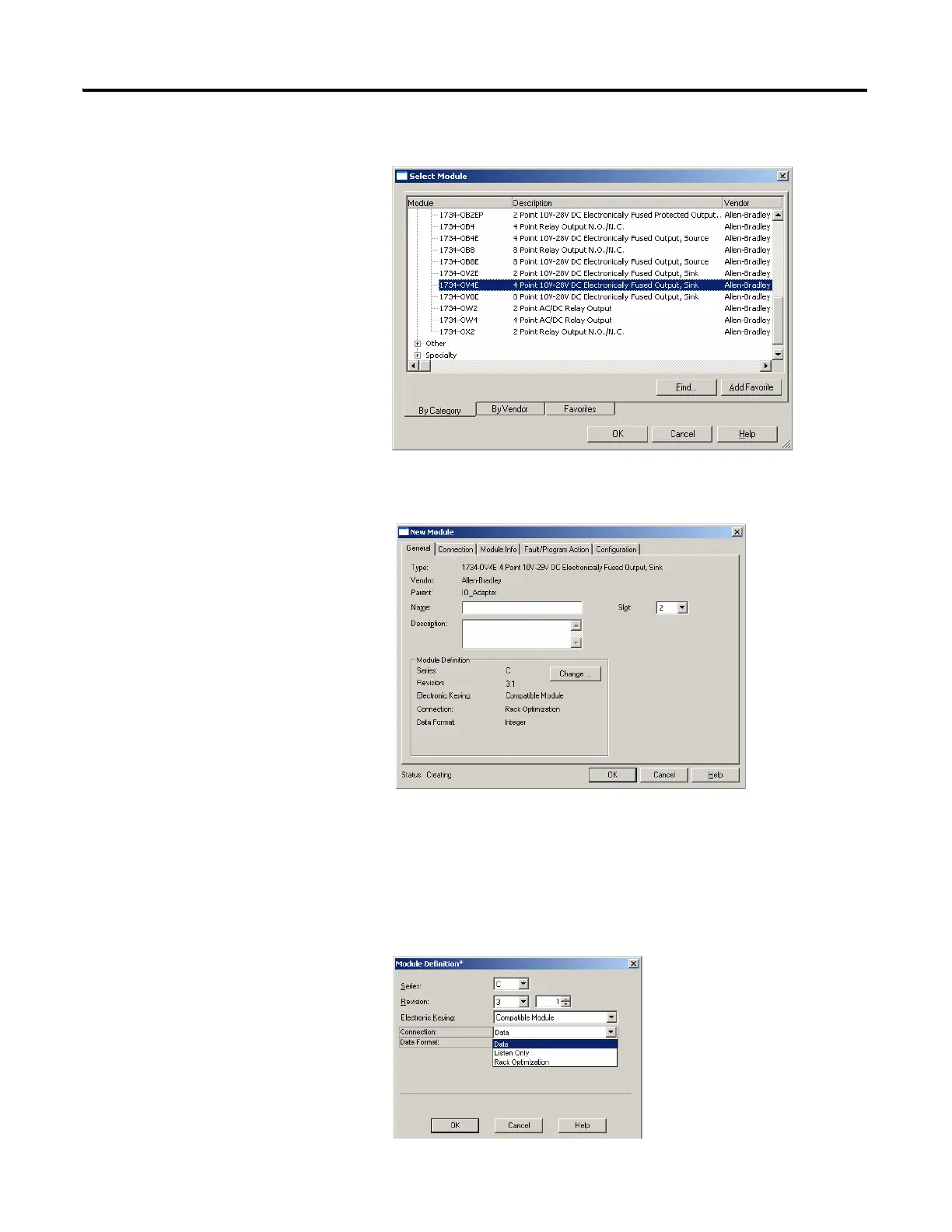

2. Expand the Digital tree.
3. Choose the 1734-OV4E/C module and click OK.
The New Module dialog opens.
.
4. From the New Module dialog, complete the following:
– Enter a value for Name.
– Enter a value for Slot.
– Click Change to modify the module definition values.
The Module Definition dialog opens.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
