Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010

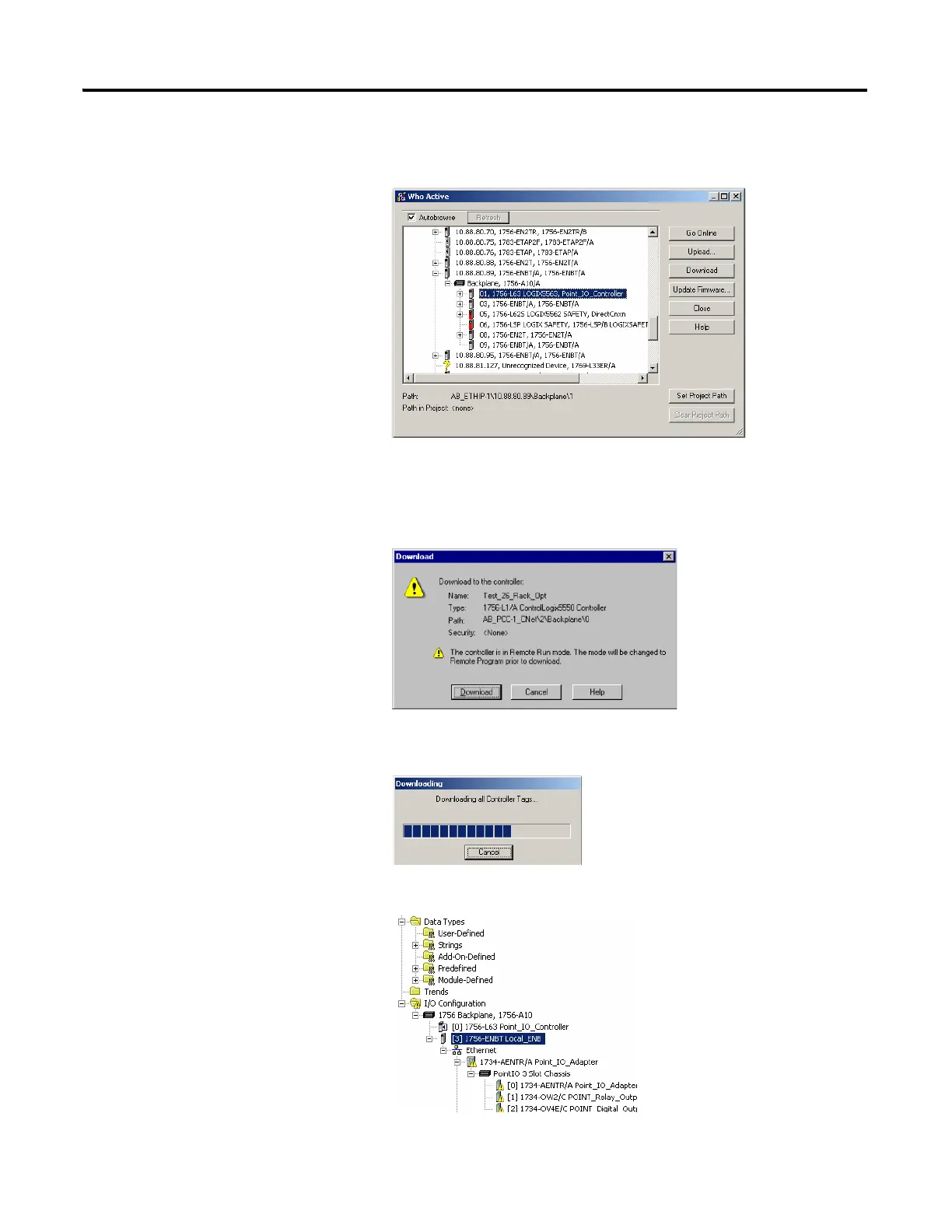

Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 63
2. From the Who Active dialog, navigate to select the slot where the
controller is located in the chassis.
3. Click Set Project Path.
4. Click Download.
The Download dialog opens.
5. From the Download dialog, click Download.
The Downloading dialog displays the download progress.
Notice that the 1756-ENBT Bridge is now online.
If yellow triangles are present, see the following section.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
