Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 65

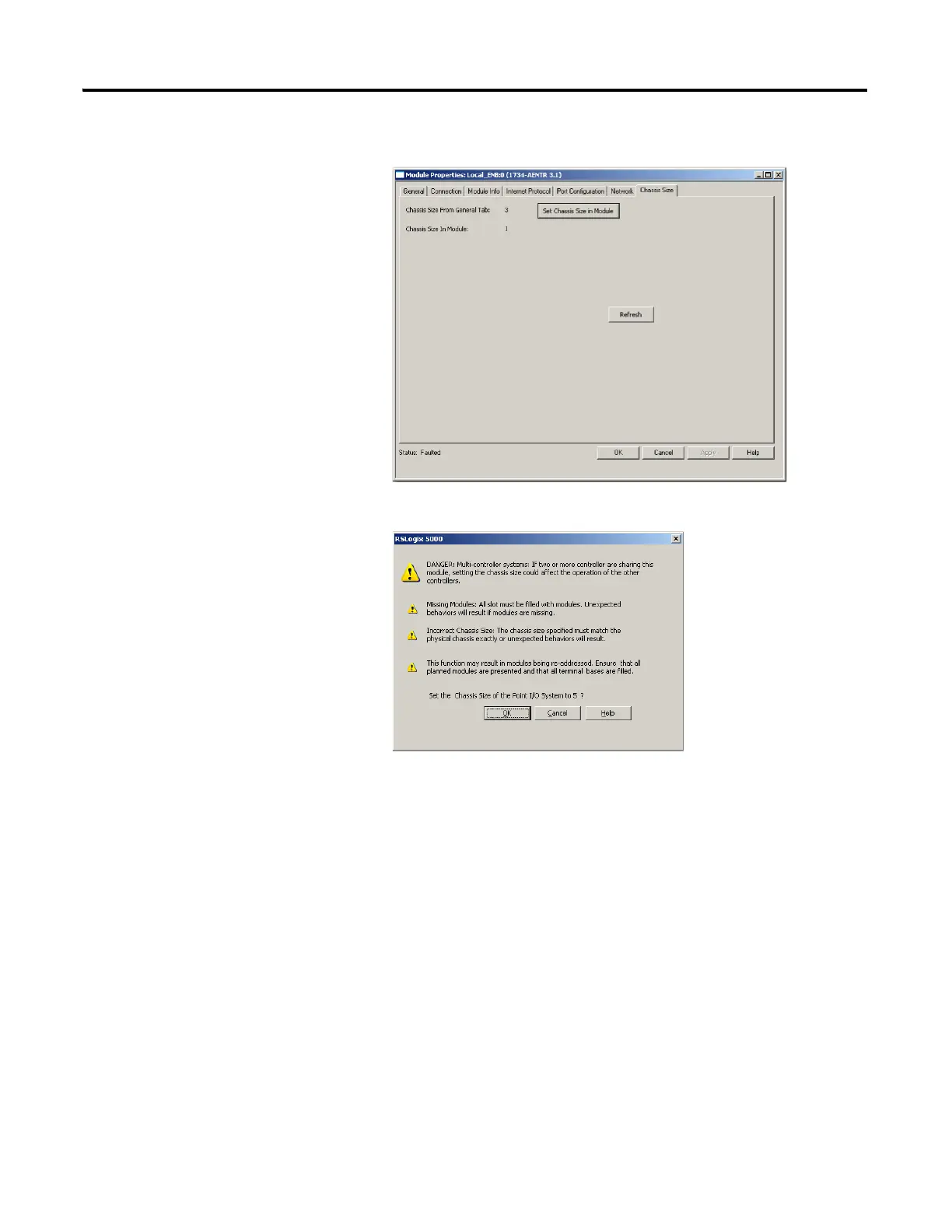

6. Click Set Chassis Size in Module.
7. Read and acknowledge the warning dialog.
8. Click OK to continue.

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
