Allen-Bradley POINT I/O User Manual

Publication 1734-UM014A-EN-P - November 2010
Adapter Web Dialogs 87

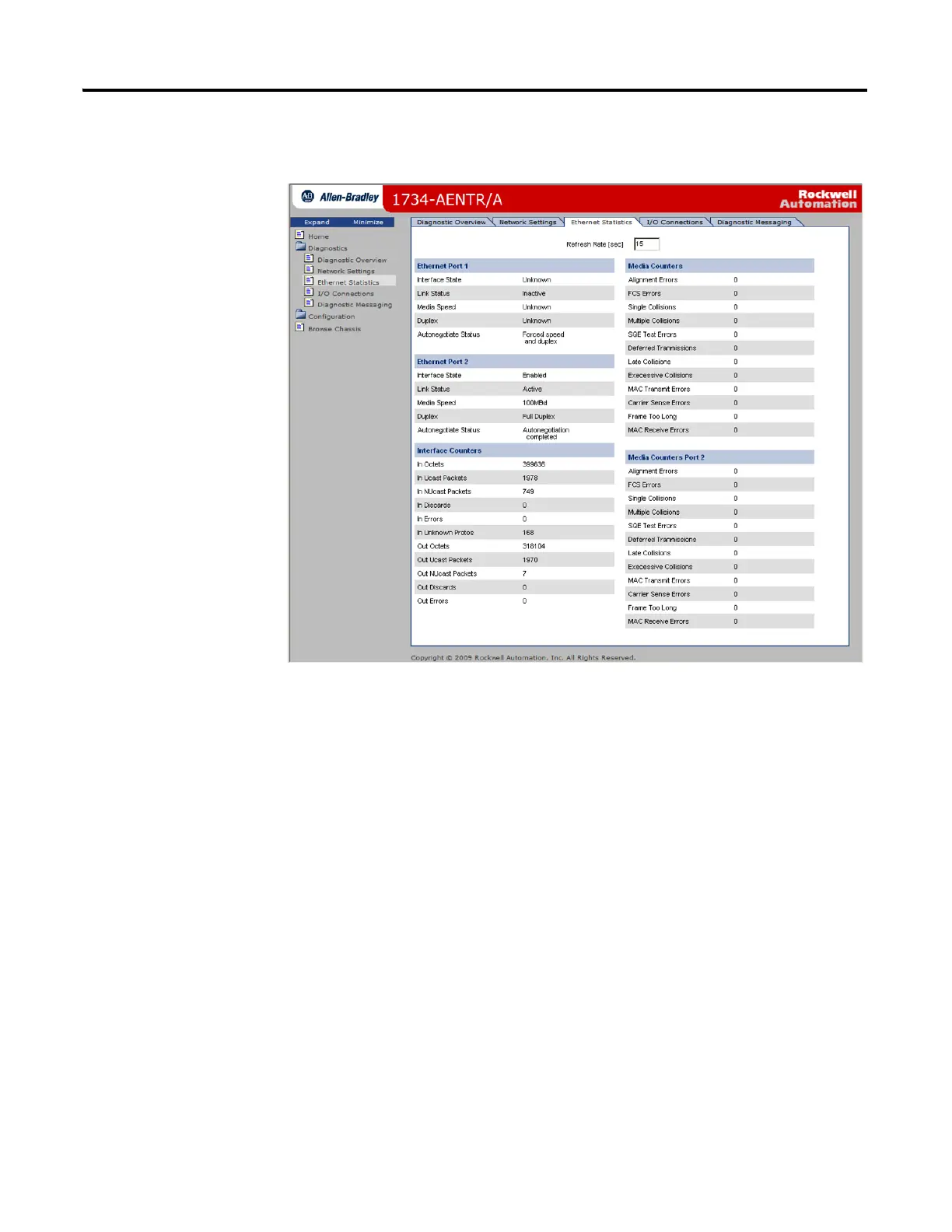

The Ethernet Statistics page opens.
2. From the Ethernet Statistics page, view the following:
• Ethernet Link
– Media Speed, Half or Full Duplex, Autonegotiate Status
• Interface Counters
– In Octets, In UCast Packets, In NUcast Packets,
In Discards, In Errors, In Unknown Protos,
Out Octets, Out Ucast Packets, Out NUcast Packets,
Out Discards, Out Errors
•Media Counters
– Alignment Errors
– FCS Errors
– Single Collisions
– Multiple Collisions
– SQE Test Errors
– Deferred Transmissions
– Late Collisions
– Excessive Collisions
– MAC Transmit Errors

Allen-Bradley POINT I/O Specifications

General

Power Supply	24V DC
Mounting	DIN Rail
Wiring Method	Removable terminal blocks
Communication Protocols	EtherNet/IP, DeviceNet, ControlNet
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Number of Channels	Varies by module (e.g., 8, 16, 32)
Certifications	CE, cUL
Type	Digital and Analog I/O Modules
Output Voltage	24V DC
