22 Rockwell Automation Publication 6000-IN100A-EN-P - August 2020
Chapter 1 Drive Mechanical Installation
For condition 1, installation of standard cabinets and filter cabinets, follow
these instructions:
1. Disassemble the grounding busbar at the front of the cabinet.
2. Disassemble the anchor cover at the front of the cabinet.
3. Drill an anchor hole.
For condition 2 seismic installation, if there is no rear access available, the top
of the drive can be mounted to the wall rather than mounted to the floor at the
back of the cabinet.

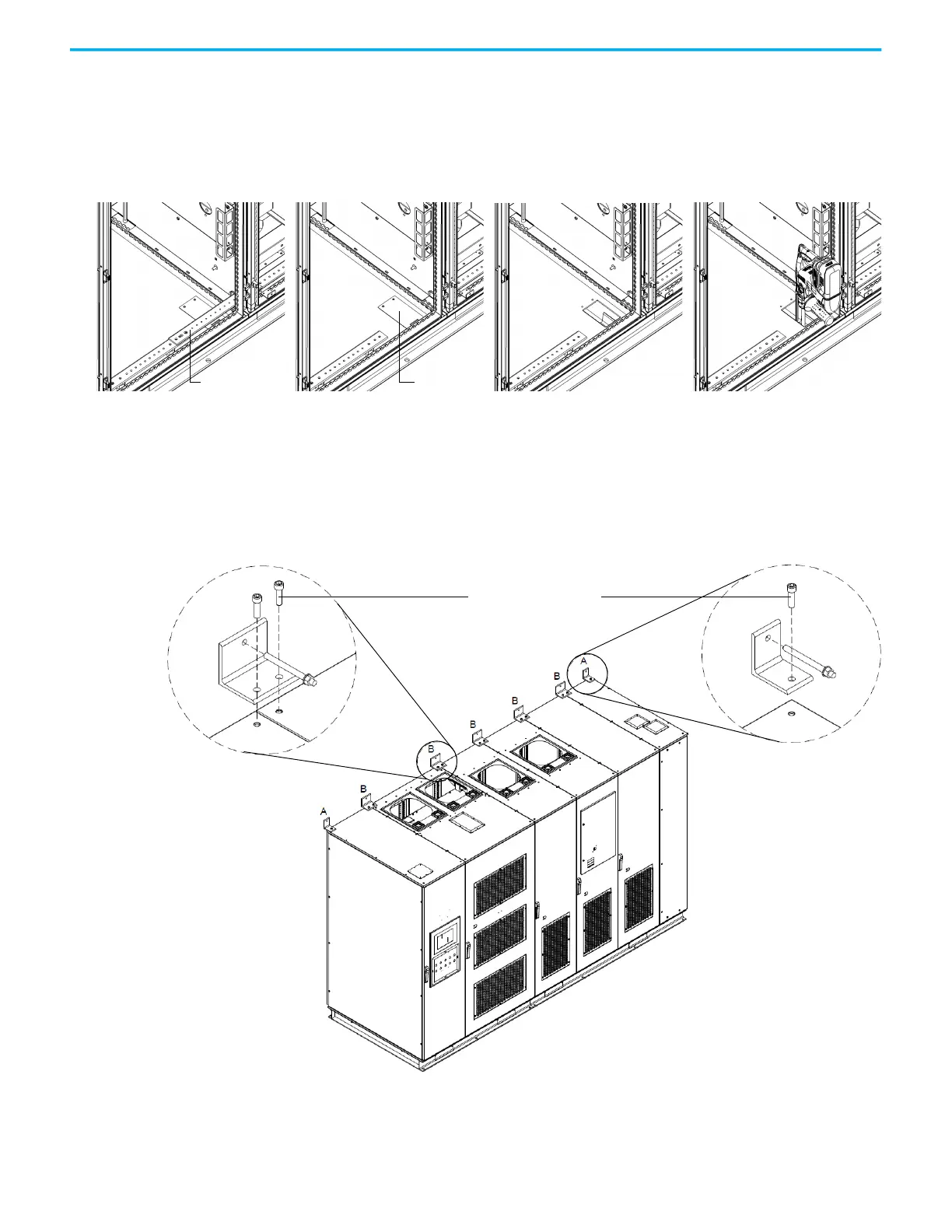

Step 1 Step 3Step 2Standard or filter cabinet
Grounding busbar Anchor cover
Wall bracket B Wall bracket A
M12xL35
Based on bracket thickness
of 11 mm (0.43 in.)
