Chapter 1 Drive Mechanical Installation

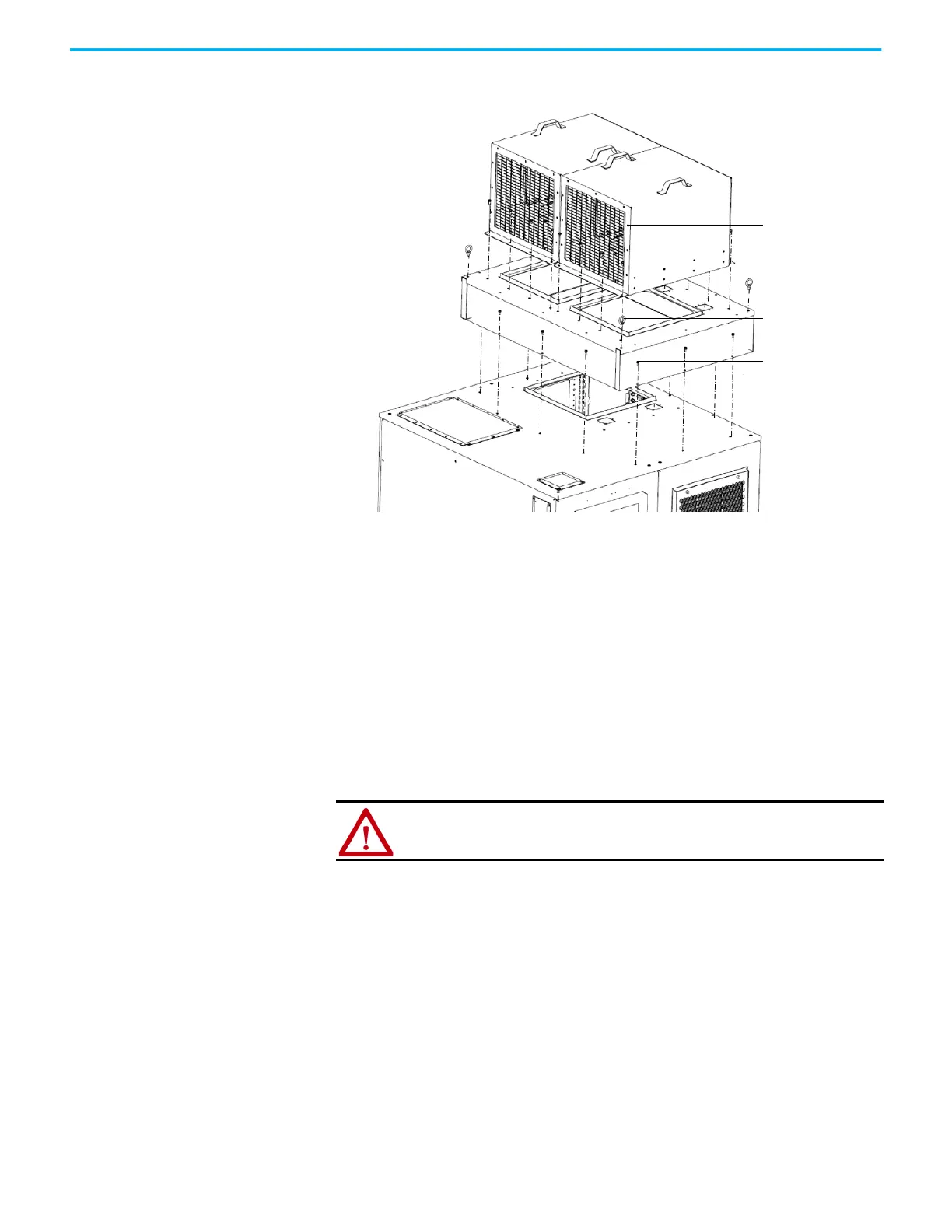

Figure 13 - Install a Mixing Hood with Redundant Fan
Install Power Modules
(if applicable)
Power Modules are available in a wide variety of amperage ratings relating to
the required motor current. Power Modules that are rated up to and including
350 A are mounted in the drive and ship already installed.
Power Modules that are rated above 350 A are shipped separately, therefore site
installation and cable connection is needed. In this case, a lift cart is supplied
and shipped together with the other components.
Power Module Lift Cart
The lift cart’s hydraulic cylinder can be operated by either a hand or foot crank.
The lifting capacity is 400 kg (882 lb).
M16x16 hexagon
combination screw (16)
M16x16 hexagon
combination screw (12)
Eyebolt (4)
ATTENTION: Only authorized personnel should operate the lift cart. Keep
hands and feet away from the lifting mechanism. Do not stand under the lift
tray when in use. Store the lift cart with the tray fully lowered.
