Rockwell Automation Publication 6000-IN100A-EN-P - August 2020 25
Chapter 1 Drive Mechanical Installation
If your application uses noise reduction barriers for the fans, follow these
instructions.
1. Remove the four M6 screws on the left and right sides of the front fan
housing.
2. Place the noise reduction barrier in front of the fan housing.
3. Secure the noise reduction barrier wit h the four M6 screws.

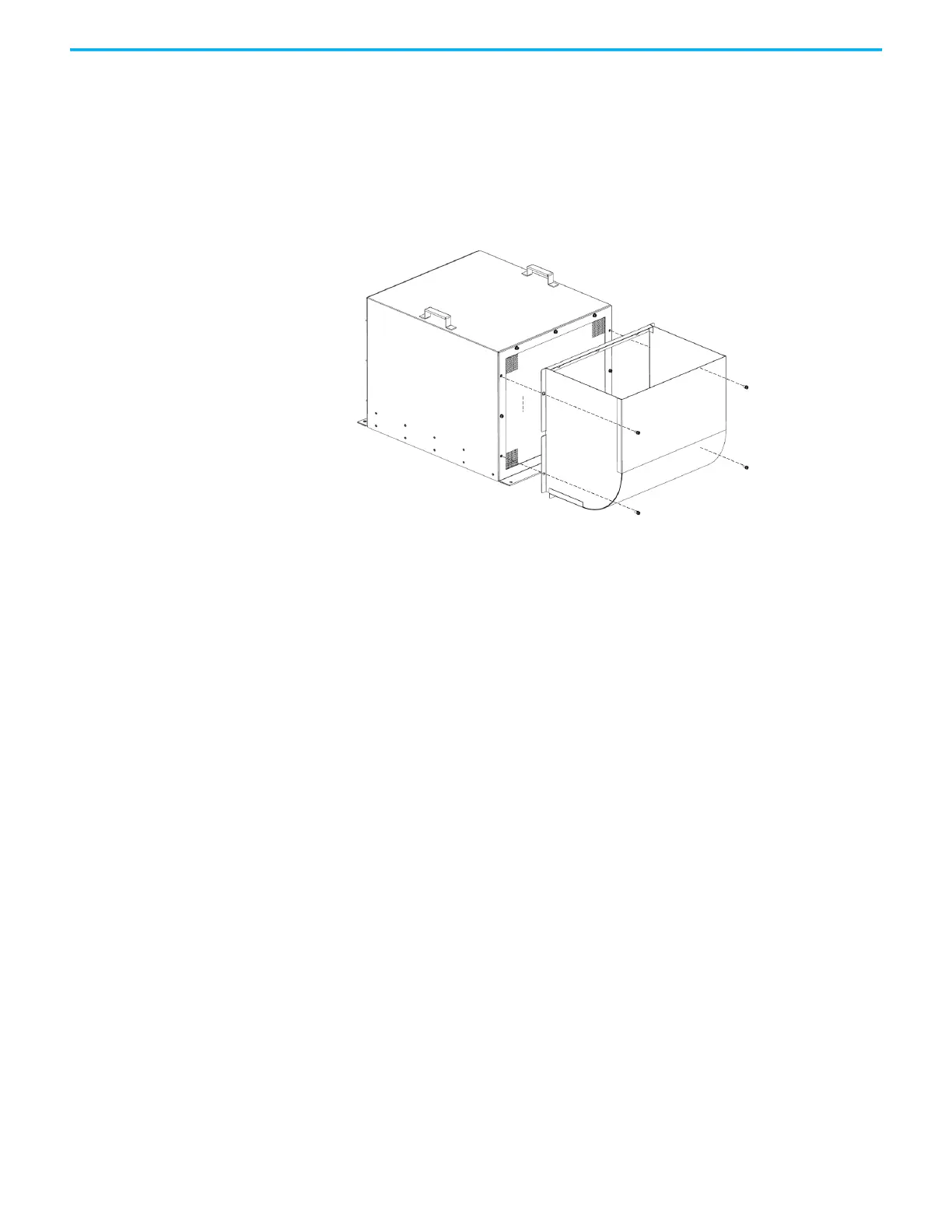

Figure 12 - Install the Noise Reduction Barrier
Install the Mixing Hood for A-Frame Drives
If your application uses a mixing hood with redundant fan, follow these
instructions.
1. Remove the air hood from the skid.
2. Install the four eyebolts at each corner of the air hood.
3. Life the air hood by the four eyebolts and align with the provisions on the
top plate.
4. Secure the air hood with 12 M16x16 hexagon combination screws.
5. Put the fan modules onto the air hood and align with the provisions on
the air hood.
6. Secure the fan modules with 16 M16x16 hexagon combination screws.
