Chapter 1 Drive Mechanical Installation

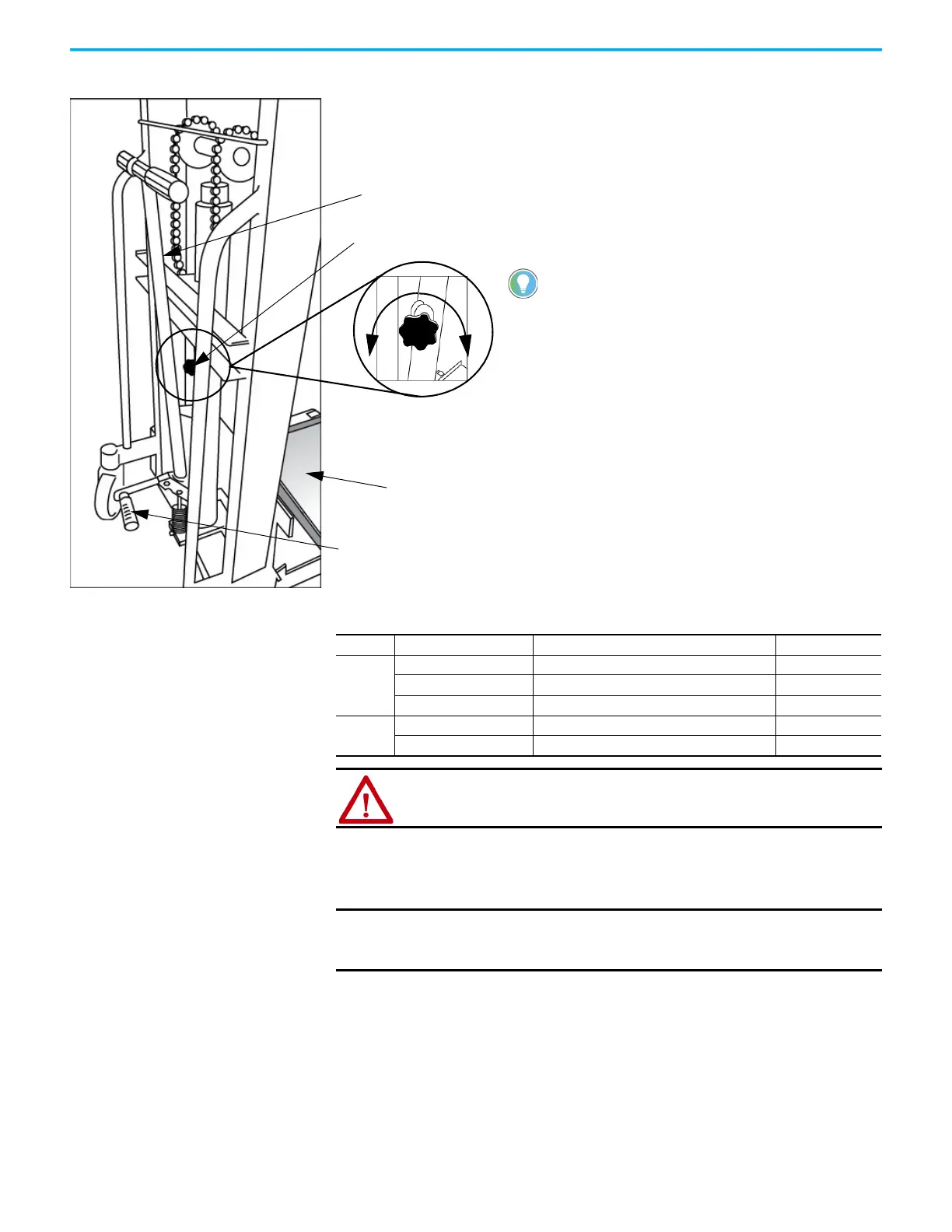

Figure 14 - Lift Cart Procedure
Install Power Modules
1. You can use the lift cart to move and position the Power Module to the
appropriate location in the cabinet.
2. Push the Power Module slowly along the guide rails until it cannot be
pushed in further.
Hand Crank
Foot Crank
Pressure Release Knob
1. Check the lift tray before use to ensure the tray
can be raised and lowered smoothly.
2. Rotate the Pressure Release Knob
counterclockwise to ensure that the tray is in
the lowest position.
3. Move the Power Module on the tray and lift the
module to the appropriate height using the Foot
Crank and complete the installation.
4. Rotate the Pressure Release Knob
counterclockwise to lower the tray to its
original position.
5. Repeat steps 1…4 to complete the installation
for all the Power Modules.
The Foot Crank raises the lift tray faster
than the Hand Crank. Use this to raise the
Power Module to just below the tray
assembly in the drive. Use the Hand Crank
for final precise positioning.
Lift tray
Release
pressure in
cylinder
Seal
pressure in
cylinder
Table 3 - Power Module Specifications
Frame Output Rating (Amps) Dimensions (HxWxD), approx. Weight, approx.
A-Frame
36…70 A 210 x 110 x 569 mm (8.3 x 4.3 x 22.4 in.) 13 kg (28.6 lb)
71…140 A 210 x 190 x 624.5 mm (8.3 x 7.5 x 24.6 in) 25 kg (55 lb)
141…215 A 210 x 215 x 674 mm (8.3 x 8.5 x 26.5 in) 35 kg (77 lb)
B-Frame
201…350 A 552.5 x 244.5 x 663 mm (21.8 x 9.6 x 26.1 in.) 70 kg (154 lb)
351…680 A 471 x 354 x 746 mm (18.5 x 13.9 x 29.4 in.) 95 kg (209 lb)
ATTENTION: Two people are required to handle the Power Modules.
IMPORTANT
The Power Module should be handled carefully. After removing the
packaging, inspect the Power Module to confirm there is no damage and
moisture.
