28 Rockwell Automation Publication 6000-IN100A-EN-P - August 2020
Chapter 1 Drive Mechanical Installation
3. After installing the Power Module in place, use the mounting brackets
and the M6 × 16 large flat pad galvanized nickel screws to fix the four
corners, as shown below.
Install Power Modules for A-Frame Drives

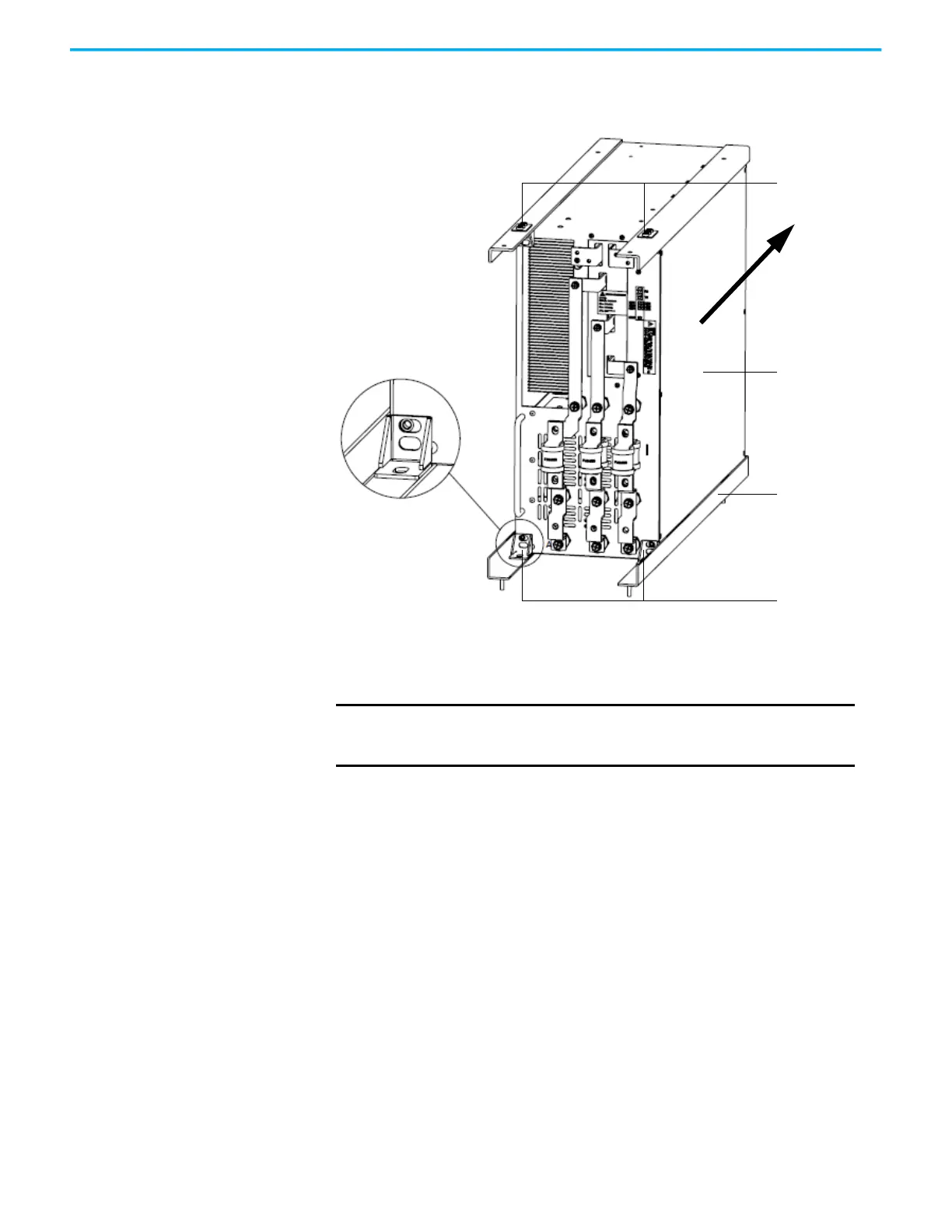

1. Push the Power Module slowly along the guide rails until it cannot be
pushed in further.
2. After installing the Power Module in place:
Mounting brackets
Power Module
Guide rail
Mounting brackets
IMPORTANT
The Power Module should be handled carefully. After removing the
packaging, inspect the Power Module to confirm that there is no
damage and moisture.
