Chapter 1 Drive Mechanical Installation

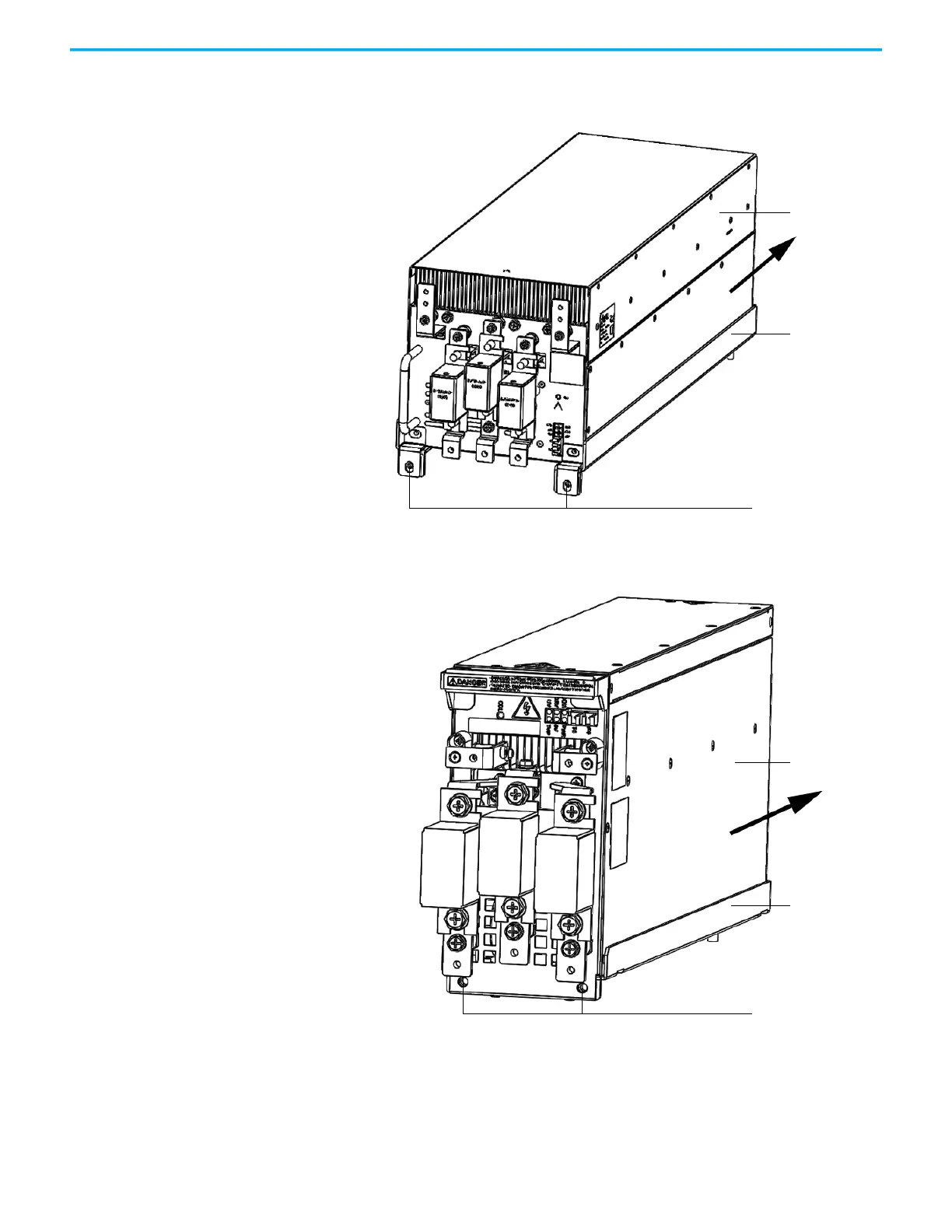

a. For 140/215 A rating – use the mounting brackets and M6x16 large flat
pad galvanized nickel screws to secure the two bottom corners.
b. For 70 A rating – use M16x16 large flat pad galvanized nickel screws to
secure
the two bottom corners directly.
Mounting brackets
Power Module
Guide rail
Secure points
Power Module
Guide rail
