Allied Telesis Rapier Series User Manual

Hardware Reference 13
C613-03020-00 REV K
Rapier 24i
(Figure 12)
■ 24-port 10BASE-T/100BASE-TX (RJ-45 connectors)
■ Two 10/100/1000BASE uplink bays
■ One Network Service Module bay, with support for various WAN interface
cards)
■ One PCI Accelerator Card (PAC) Slot
■ Auto-negotiating Layer 3 Managed Switch
■ Enhanced switching core

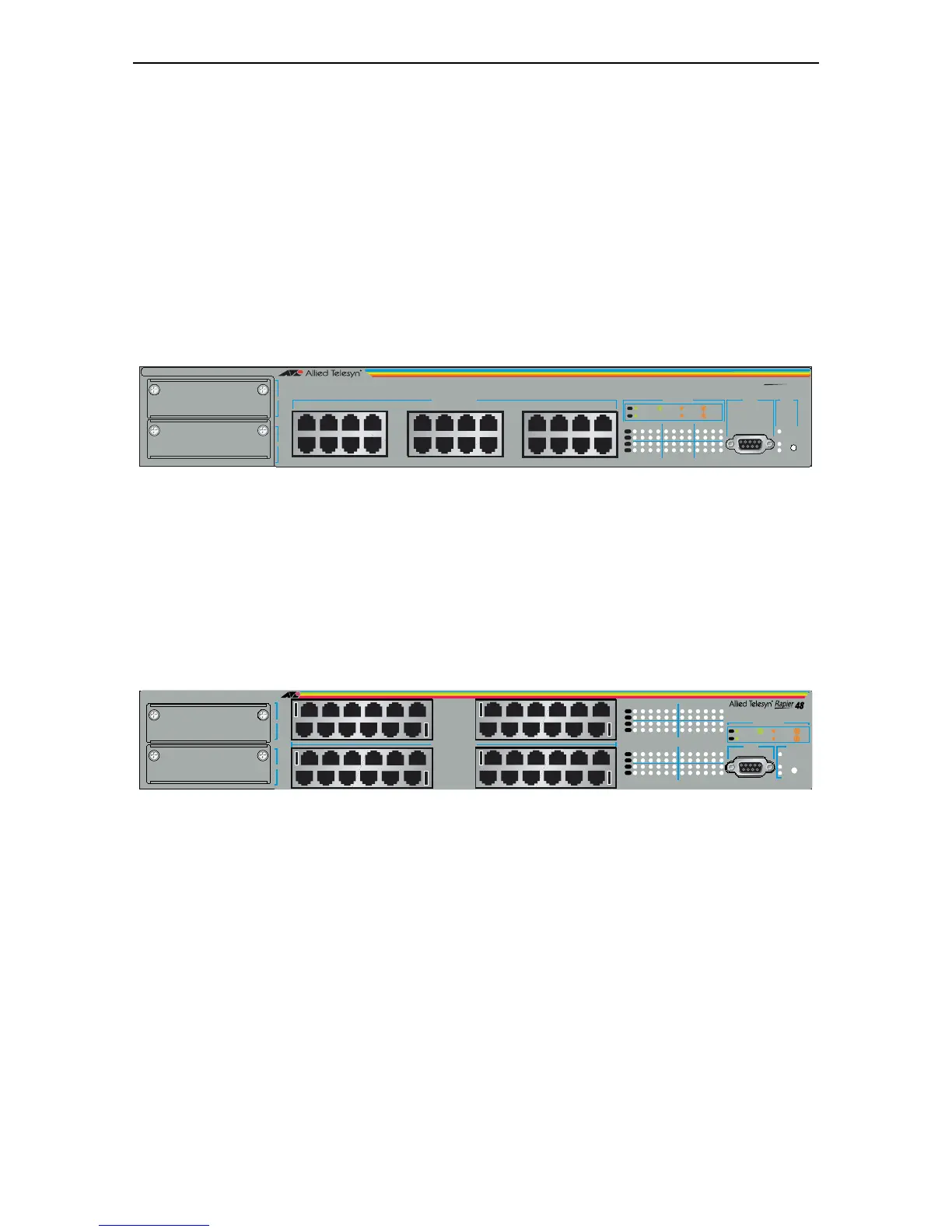

Figure 12: Front panel of the Rapier 24i.
Rapier 48
(Figure 13)
■ 48-port 10BASE-T/100BASE-TX (RJ-45 connectors)
■ Two 1000BASE uplink bays
■ Auto-negotiating Layer 3 Managed Switch
Figure 13: Front panel of the Rapier 48.
Rapier 48i
(Figure 14)
■ 48-port 10BASE-T/100BASE-TX (RJ-45 connectors)
■ Two 10/100/1000BASE uplink bays
■ Auto-negotiating Layer 3 Managed Switch
■ Enhanced switching core
STATUS
RESET
FAULT
PWR
RPS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
10BASE-T / 100BASE-TX
1X 3X 5X 7X
2X 4X 6X 8X
9X 11X 13X 15X
10X 12X 14X 16X
17X 19X 21X 23X
18X 20X 22X 24X
25
26
RS-232
TERMINAL PORT
100M LINK / ACTIVITY 10M LINK / ACTIVITY
HALF DUP/ COL
FULL DUP
PORT ACTIVITY
L/A
L/A
D/C
D/C
L/A
D/
C
ASYN0
Layer 3 Fast Ethernet Switch
Rapier
24i
Layer 3 Fast Ethernet Switch
10BASE-T / 100BASE-TX
49
50
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
L/A
D/C
L/A
D/C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
L/A
D/C
L/A
D/C
RESET
FAU LT
PWR
RPS
RS-232
TERMINAL PORT
ASYN0
26X 48X
2X 24X
25X 47X
1X
36X
12X
35X
11X
38X
14X
37X
13X 23X
100M LINK / 10M LINK /
HALF DUP
FULL DUP
PORT ACTIVITY
L/A
D/C
ACT ACT
COL
STATUS
