Alpha-InnoTec Luxtronik Operating Instructions

14
We reserve the right to make technical changes | 83055400dUK – Translation of the original instruction manual (2.1) | ait-deutschland GmbH
Room temperatures Is displayed if the room control unit is
connected
In addition – depending on the unit type of the connected heat
pump – the cooling circuit information provided by sensors in the
cooling circuit appears here.

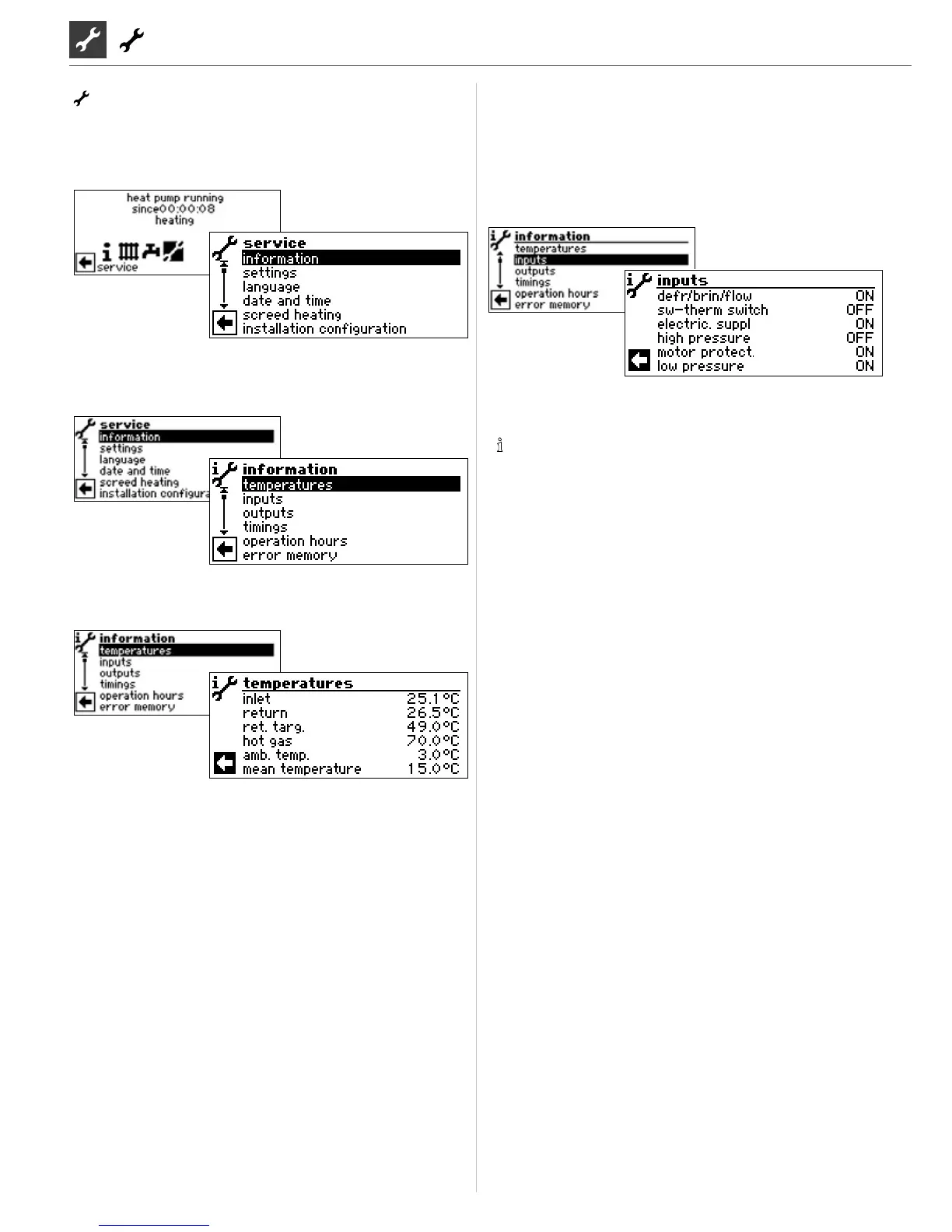

QUERY INPUTS
The menu is not shown in full here. Further menu items
appear if you scroll down the screen.
NOTICE
This menu shows whether the digital inputs of the control-
ler are switched on or o.
Defr/Brin/Flow Defrost, Brine pressure, ow
Depending on the device type, the input can full various
functions:
For L/W-devices Defrost end pressostat:
On = Defrost is terminated.
For LWD, S/W and W/W devices with ow switch connected at
the factory:
On = Flow okay.
For S/W devices without ow switch connected at the factory, a
brine pressostat can be connected:
On = brine pressure sucient.
SW-therm. switch Domestic hot water thermostat
On = Domestic hot water requirement
Electr. suppl. O-time of the electrical supply
O = O-time
High pressure High-pressure pressostat
O = Pressure okay
Motor protect. Motor protection
On = Motor protection okay.
Low pressure Low pressure pressostat
On = Pressure okay.
PEX Connection of an external current
anode
(possible for some devices)
AIn Input analog
Program area “Service“
SEKECT PROGRAM AREA
QUERY INFORMATION
QUERY TEMPERATURES
The menu is not shown in full here. Further menu items
appear if you scroll down the screen .
Inlet Flow temperature heating circle
Return Return ow temp. of heating circle
Ret. targ. Return setpoint heating circle
Return external Return temp. in separate tank.
Hot gas Hot gas temperature
amb. temp. External temperature
Mean temperature Average temperature
outside over (function heating limit)
Act. service water Domestic hot water actual
temperature
Targ. service water Domestic hot water target
temperature
Heats in Heat source inlet temperature
Heats out Heat source outlet temperature
Mixing circle 1 fore. Mixing circle 1
Forward ow temperature
Mixing circle 1 desir. Mixing circle 1
Forward ow set temperature
