Alpha-InnoTec Luxtronik Operating Instructions

26
We reserve the right to make technical changes | 83055400dUK – Translation of the original instruction manual (2.1) | ait-deutschland GmbH
Integrated Integrated in the heat generator (=
heat pump or corresponding hydraulic
component)
Outlet The corresponding output contact for
electrical connection of the respective
ZWE is displayed automatically. If a
type of preparation is selected under
“Type” and it is displayed here as outlet
“---““, the wiring has already been laid
in the factory
SILENT MODE, ONLY LWCV, LWDV, LWV, LWAV, LWP
The compressor and fan will be limited by the rpm in noise-red-
uced mode. This will mean that the maximum heating capacity
cannot be called up anymore. A higher heating rod share can re-
sult in increased heating costs. In order to retain the comfort level,
the required performance dierence will be compensated by the
second heat generator (normally the heating element).
1. With settings selection:
Position Silent Mode to “Yes” (pre-set: No)
2. Selection for time switching programmes:

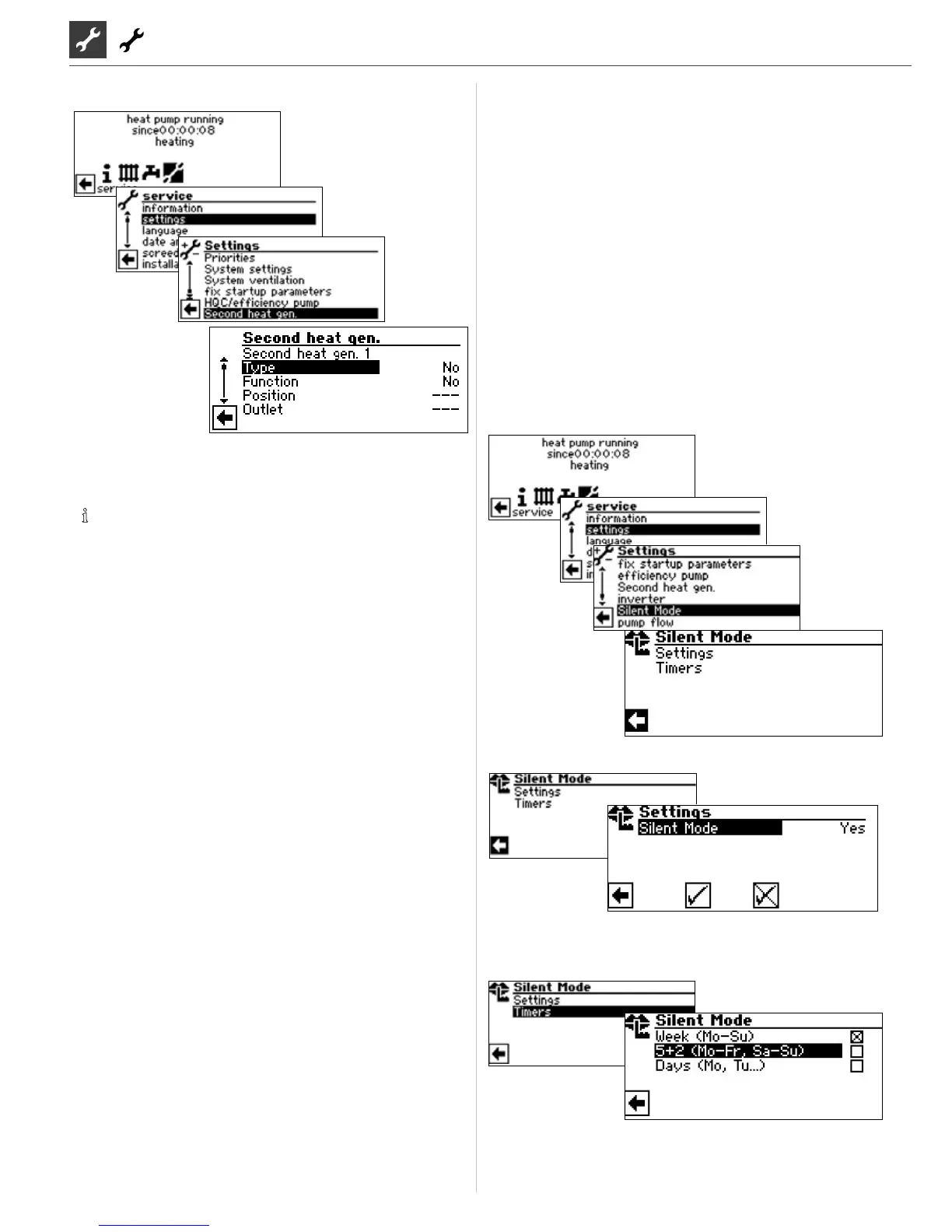

SECOND HEAT GENERATOR
Here you can activate connected additional heat
generators and set their parameters or deactivate
connected heat generators
NOTICE
The possible settings depend on the respective unit type.
Second heat gen.1 Selected additional heat generator (2.
heat gen.)
If several additional heat generators are
connected you can go to their settings
by using the “turn-push button” to
scroll up or down (no submenu eld
may be activated during this scrolling).
Type
No No 2. heat gen. connected, system
operates monovalently
El.Rod Electric heating element with bivalent
level control for heating element (not
released during the El. sup. blockade)
Boiler Heating boiler with bivalent level
control for the boiler (in bivalent level 3
is on continuously, until switched back
to bivalent level 2)
Thermal Water heater with bivalent level control
for water heater (control behaviour is
analogous to that of a heating element;
however, is also active during El. sup.
blockade)
Function
Second heat gen 1
Heating Heating
HW a SW Heating or Hot water
Second heat gen 2
Heating Heating
SW Hot water
Position
Tank Integrated directly in or on the heating
or hot water storage tank
