Montage
INSTALLING THE INSTALLATION CONTROL
In the case of devices for internal mounting, the control card of
the heating and heat pump is integrated in the electrical switch
cabinet of the device.
Operating instructions of your heat pump, assembly of
the operating element
ASSEMBLY OF THE WALL CONTROL, LW160HAV,
LW161HAV
For all work to be carried out:
NOTICE
Observe the locally-applicable accident prevention regula-
tions, statutory provisions, ordinances and directives.
WARNING!
Only qualied technicians may mount the heating and
heat pump control.

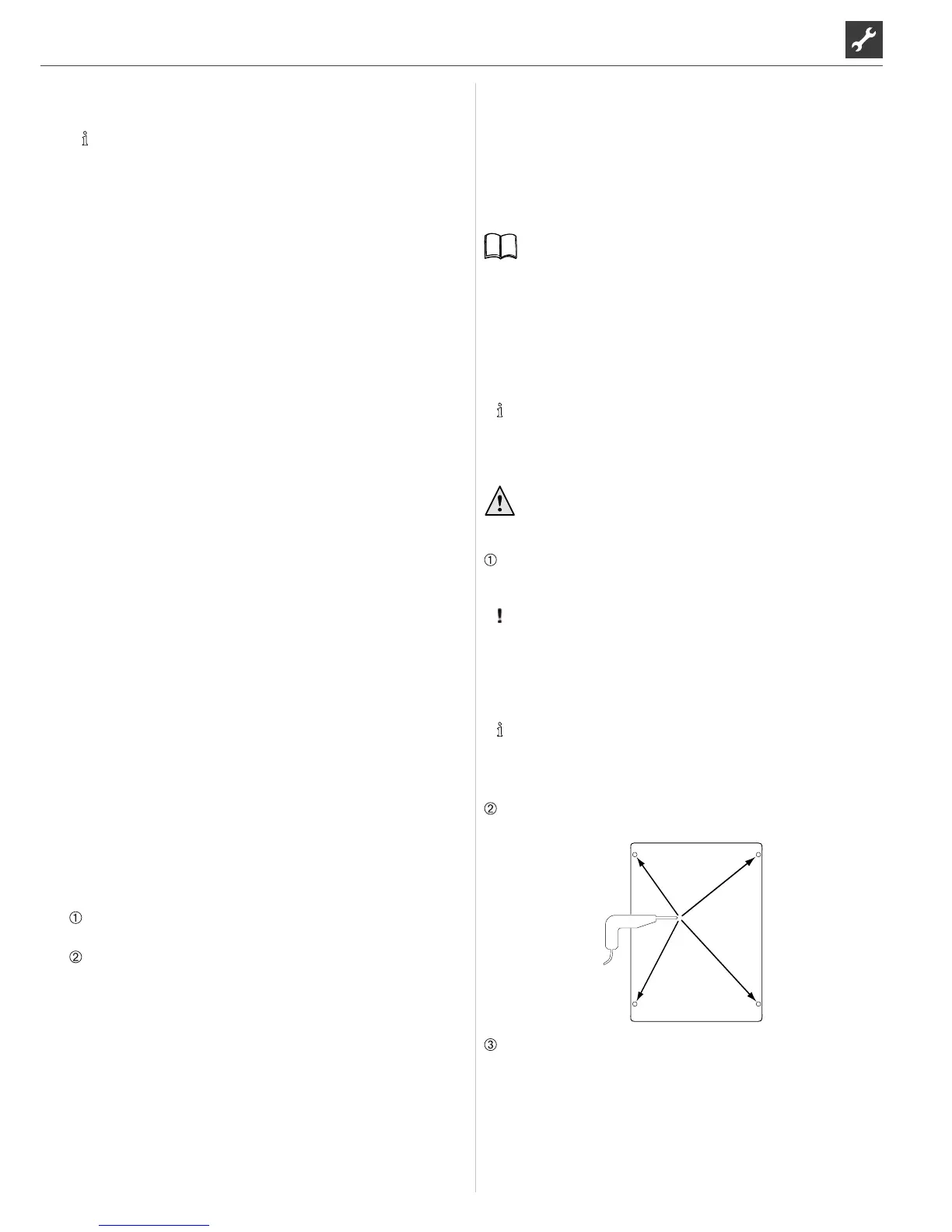

Position the drill template at the point where the heating and
heat pump control is to be located.
ATTENTION
Check the potential mounting location for concealed wi-
ring. Position the drill template in such way that no con-
cealed wiring can be drilled into or damaged during the
subsequent assembly work.
NOTICE
You need to ensure ≥ 2 cm free space to the right and left
of the drill template, so that there is enough space for the
side fastening screws of the housing cover.
Fix drill template onto the wall with adhesive tape, drill holes
(Ø 6 mm, depth ≥ 55 mm).
Take drill template o the wall, insert dowels in the holes,
screw in screws (spacing from the substrate to the screw head
approximately 10mm).
Scope of delivery
NOTICE
Function-critical temperature sensors (return, inlet, hot
gas) are installed in the heat pump and are not part of the
scope of supply of the heating and heat pump regulator.
The heating and heat pump regulator is supplied in two variants.
The variant supplied is dependent on the device type of the heat
pump to the controlled.
INSTALLED CONTROL SCOPE OF SUPPLY
In the case of devices for internal mounting, the control card of
the heating and heat pump regulator is integrated in the relevant
device as an “installed control”. The “installed control” scope of
supply is included in the scope of supply of the device for inter-
nal mounting.
• Heating and heat pump regulator,
• consisting of control card (with terminals) and operating ele-
ment (with status display, screen and “rotary pushbutton”).
• External sensor for the surface mounting.
• operating manual.
• “Brief description of the heat pump control”.
WALL CONTROL SCOPE OF SUPPLY, LW160HAV,
LW161HAV
In the case of devices for external mounting, the control card of
the heating and heat pump control is not integrated in the rele-
vant device. The “wall control” scope of supply is not included in
the scope of supply of the device for external mounting.
• Heating and heat pump control for surface mounting,
• consisting of control card (with terminals), housing and ope-
rating element (with status display, screen and “rotary push-
button”).
• Wall mounting materials (drill template, screws, dowels for so-
lid masonry).
• External sensor for the surface mounting.
• Operating instructions.
• “Brief description of the heat pump control“.
What to do rst:
Check the supplied product for signs of external damage du-
ring delivery.
Check that nothing is missing from the scope of supply. Imme-
diately submit a complaint in the event of delivery defects.
