Chapter II Installation and Wiring
32
(1) The user shall provide the power supply DC12-24V >50mA
(2) If the polarity of the power supply is reversed, the drive will not respond to the
signal.
If the host device is open collector output:

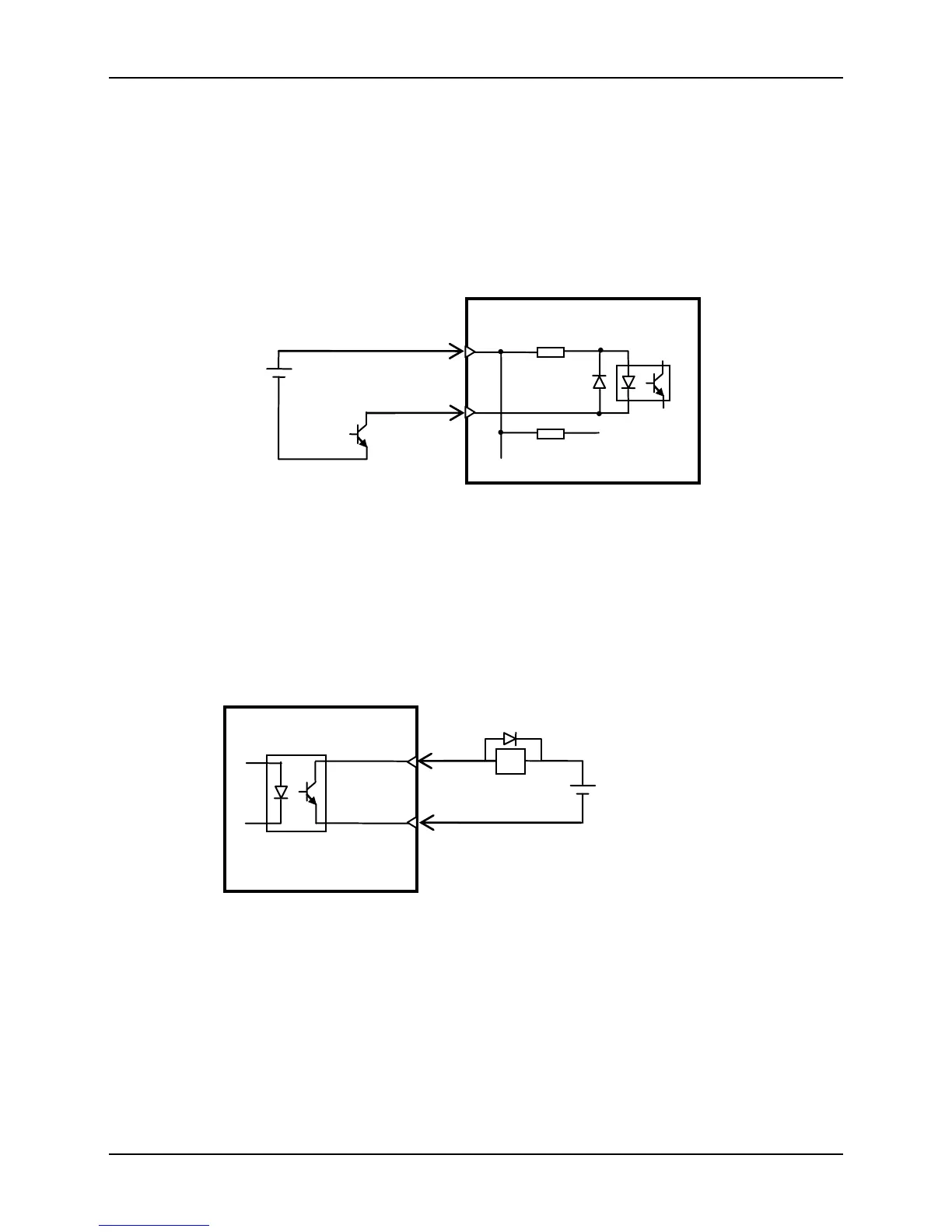

Fig. 2-12 Digital Input Circuit (b)
Digital Output Circuit
IF the host device is relay input:
Fig. 2-13 Digital Output Circuit (a)
(1) The user shall provide the power supply DC12-24V. If the polarity of the power
supply is reversed, the drive will damaged.
(2) The maximum rated value of the open collector output of the drive is DC60V
40mA.
(3) DO1~DO4 are open collector outputs.
