Chapter IV Operation
51
4.1.2 The Checking Points During Operation
 Whether the motor operation is stable.
 Whether the motor operation direction is correct.
 Whether the motor has abnormal vibration.
 Whether the motor is stable when increasing or decreasing speed.
 Whether the keyboard display is correct.
4.1.3 Commissioning When Connecting to Power
The servo drive has two kinds of special trial operation control mode which is used to
determine whether the servo system is normal, namely, speed test run mode and JOG
test run mode. No external control signal is required under the test run mode. The trial
operation operating steps are briefly described below.

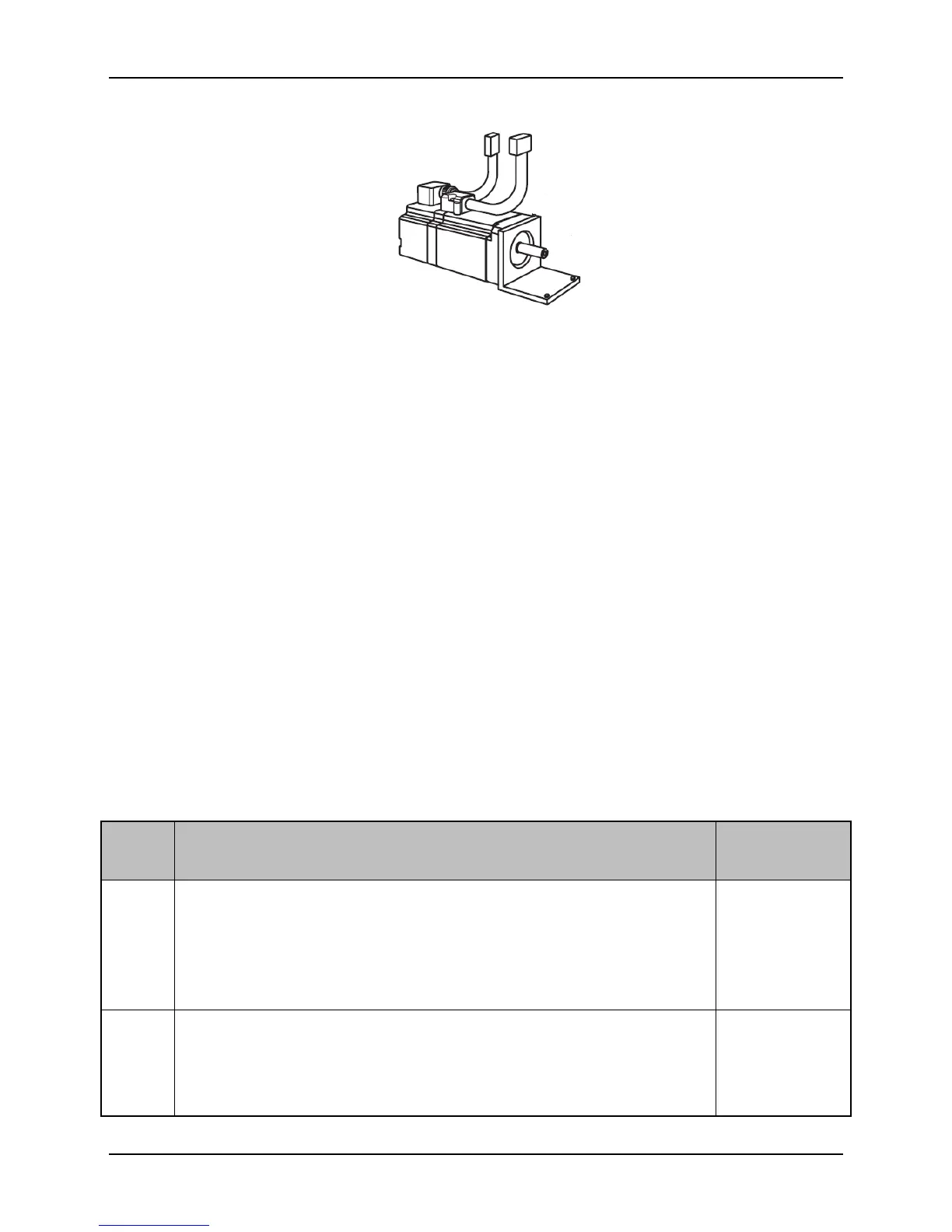

Note: the trial operation shall be performed when the motor is fixed and disconnected
from load, to ensure no accident will occur.
■ Speed Trial Operation (P00.02=4)
Steps
Operations
Reference
Chapter
1
Connect the control circuit power supply (the main circuit
power is disconnected temporarily), and the display of the
drive is on. If there is an alarm, please check the connection.
The input and output interface cable shall not be connected
during test run.
2.4 The main
circuit
terminal
wiring
2
Connect the main circuit power supply.
2.4 The main
circuit
terminal
wiring
