Alpha CXPS-C - Figure 8 - 4 Position TPL; Figure 9 - 12 X 1 Position High Capacity Breaker

9400001-J1 Rev F
18
4.3.1 4 Position TPL Tier Features
• Occupies 1 tier position
• 2000A tier rating
• Each position accepts max 800A TPL fuse
• Current on each TPL is monitored via an 800A shunt
• 2x landings per fuse 2 hole, 3/8" dia. on 1" center or 1/2" dia. on 1 3/4" center
• Option for whole Tier LVD 2000A disconnect
4.3.2 12x 1 Position high Capacity Breaker Tier Features
• Occupies 1 tier positions
• 2000A tier rating
• Can accept 1P (250A max) high capacity breaker
• Individually monitored by 300A Shunts
• 1x landings per position 2 hole, 3/8" dia. on 1" center
• Option for whole Tier LVD 2000A disconnect

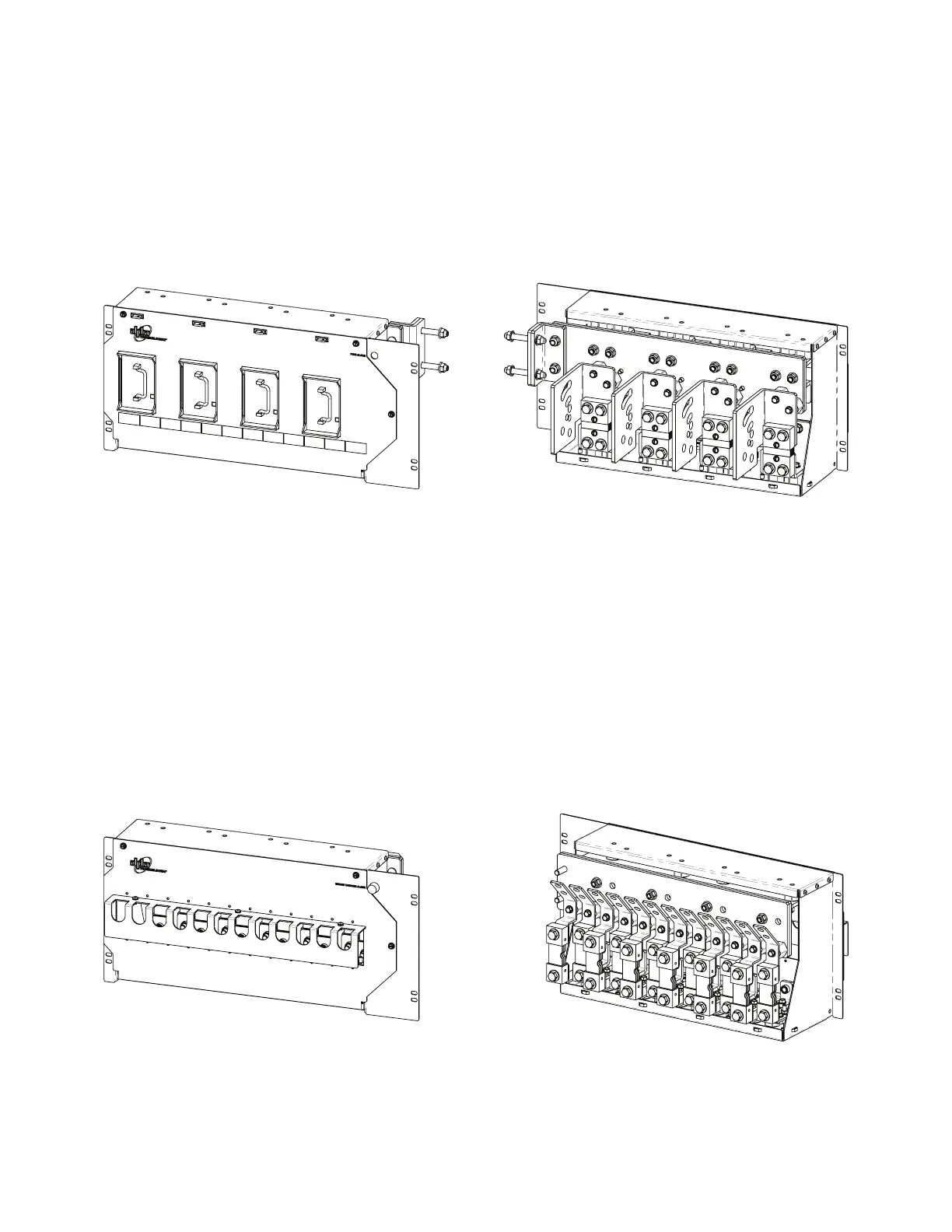

Figure 8 — 4 Position TPL
Figure 9 — 12x 1 Position High Capacity Breaker
