9400001-J1 Rev F

4.3.5 3x 4 Position high Capacity Breaker Tier Features

• Occupies 1 tier positions

• 2000A tier rating

• Can accept 4P (800A) high capacity breaker

• Individually monitored by 1000A Shunts

• 2x landings per position 2 hole, 3/8" dia. on 1" center & 1/2" dia. on 1 3/4" center

• Option for whole Tier LVD 2000A disconnect

4.3.6 2x 5 Position high Capacity Breaker Tier Features

• Occupies 1 tier positions

• 2000A tier rating

• Can accept 5P (1000A) high capacity breaker

• Individually monitored by 1500A Shunts

• 2x landings per position 2 hole, 3/8" dia. on 1" center & 1/2" dia. on 1 3/4" center

• Option for whole Tier LVD 2000A disconnect

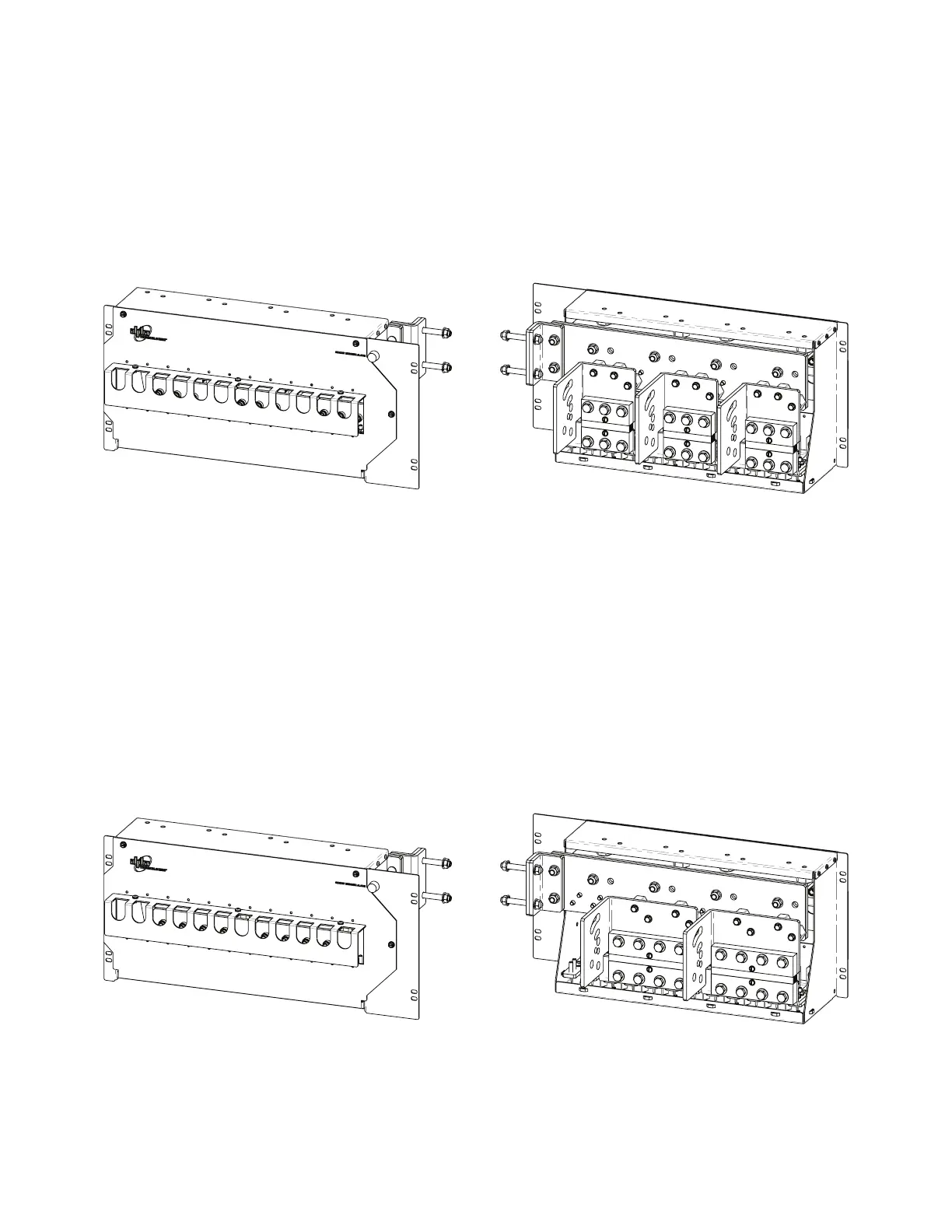

Figure 12 — 3x 4 Position High Capacity Breaker

Figure 13 — 2x 5 Position High Capacity Breaker
