Alpha CXPS-C - Figure 10 - 6 X 2 Position High Capacity Breaker; Figure 11 - 4 X 3 Position High Capacity Breaker

199400001-J1 Rev F
4.3.3 6x 2 Position high Capacity Breaker Tier Features
• Occupies 1 tier positions
• 2000A tier rating
• Can accept 2P (300A-400A) high capacity breaker
• Individually monitored by 800A Shunts
• 2x landings per position 2 hole, 3/8" dia. on 1" center & 1/2" dia. on 1 3/4" center
• Option for whole Tier LVD 2000A disconnect
4.3.4 4x 3 Position high Capacity Breaker Tier Feature
• Occupies 1 tier positions
• 2000A tier rating
• Can accept 3P (500A-700A) high capacity breaker
• Individually monitored by 1000A Shunts
• 2x landings per position 2 hole, 3/8" dia. on 1" center & 1/2" dia. on 1 3/4" center
• Option for whole Tier LVD 2000A disconnect

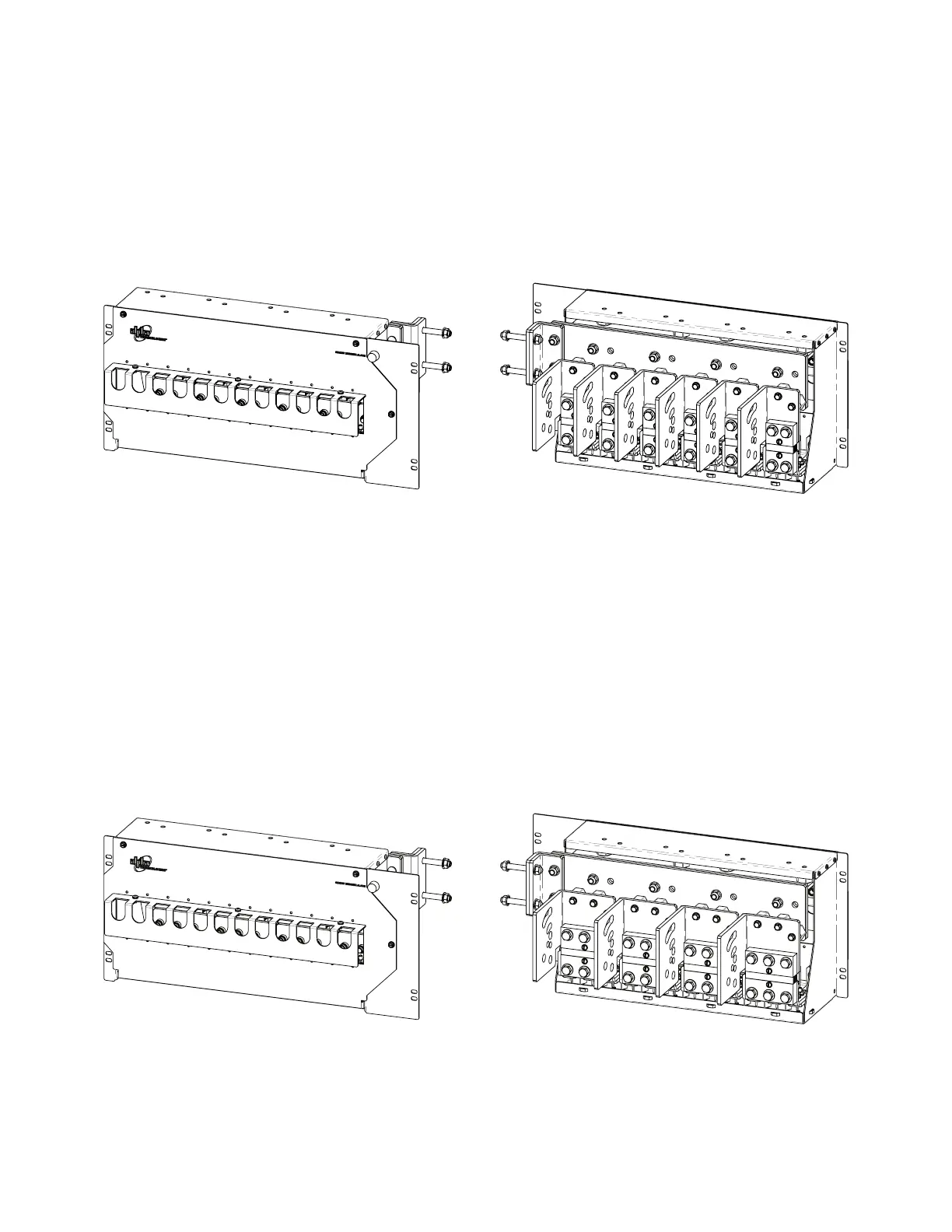

Figure 10 — 6x 2 Position High Capacity Breaker
Figure 11 — 4x 3 Position High Capacity Breaker
