9.2 Standalone Distribution Bay
A standalone distribution bay can be installed at a distance from an existing system to distribute power to even-
more-distant devices.
1. Secure the bay to the floor. (See section 9.1 on page 57.)
2. Connect a cable (typically a 2/0 cable) between the frame of the bay and MGB or FGB.
3. Run cable from the existing system overhead "Hot" power bus to the customer connection busbar in the
distribution bay.

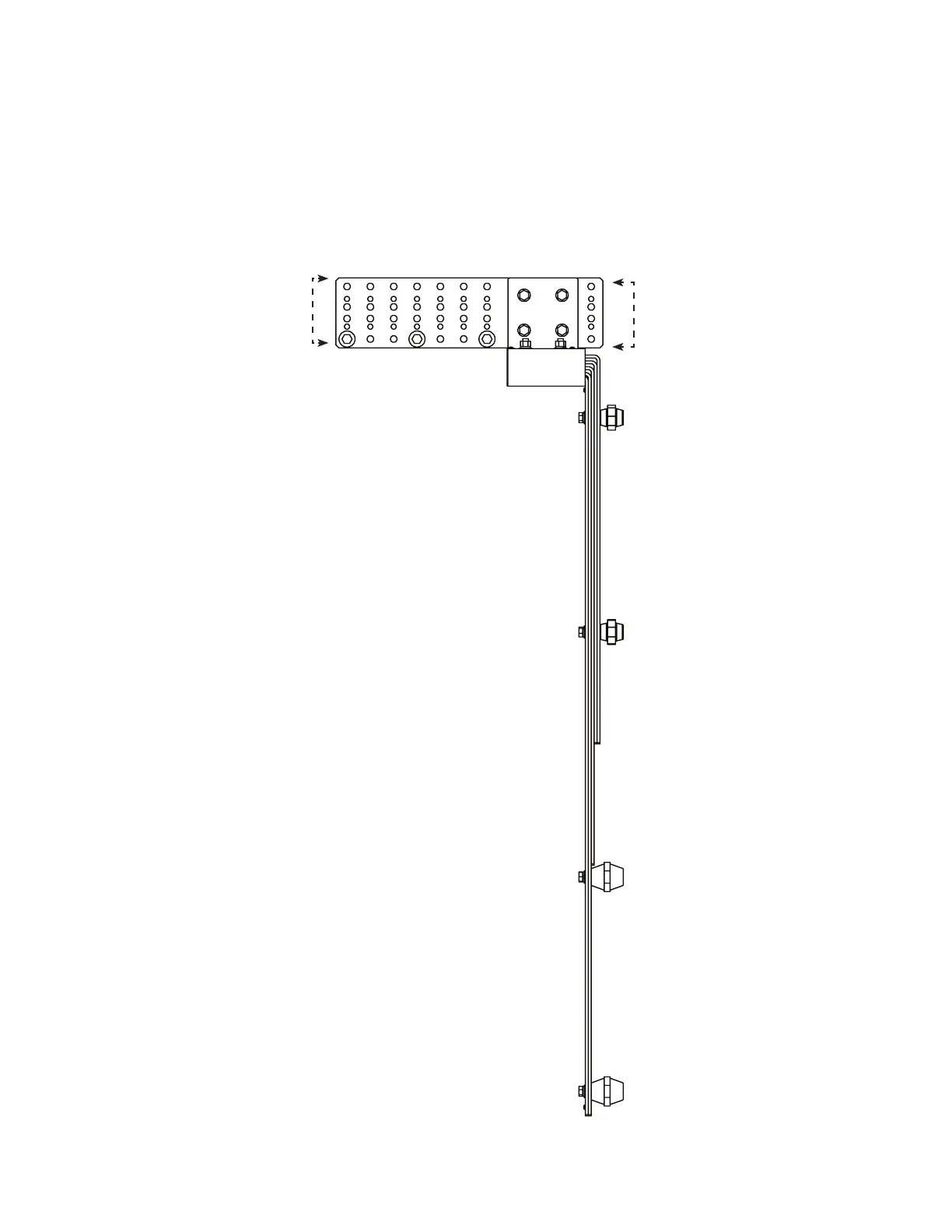

7 X 1/2" on 1.75 centers OR
7 X 3/8" on 1" centers
1 X 1/2" on 1.75 centers OR
1 X 3/8" on 1" centers
