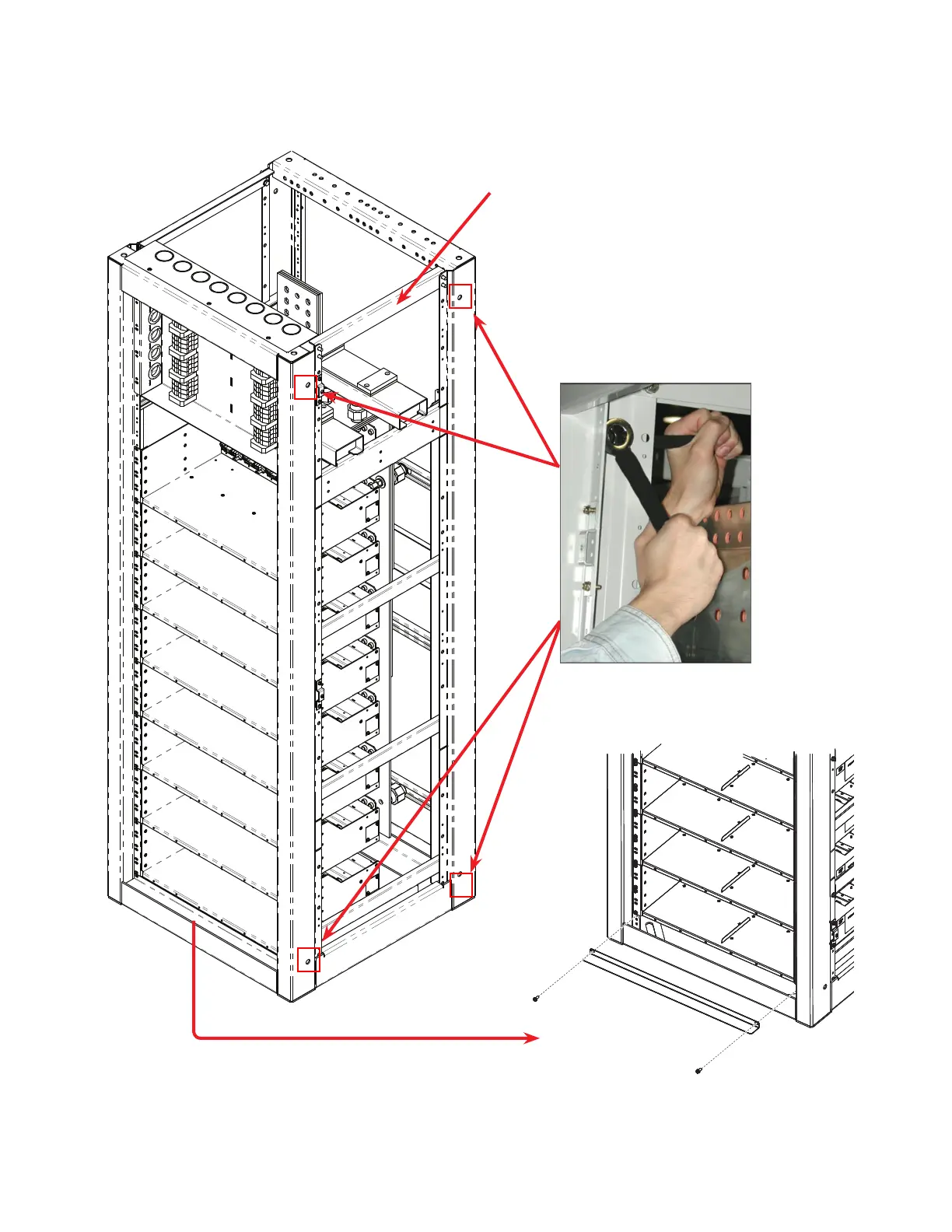

Figure 30 — Bolting Adjacent Bays Together
7.3 Securing Adjacent Bays
Locate the bay-to-bay bolting kits that ship with the equipment.
Bolt each pair of bays to-
gether.
Remove horizontal braces to make it
easier to install horizontal busbars.
Remove the top flange at the front of
the bay to access anchoring holes.
To Next Page
