Alpha CXPS-C - Figure 46 - Terminal Blocks for 8-Feed 3 Wire 208;480 Vac Input; Figure 47 - Terminal Blocks for 16-Feed 208;480 Vac Input; Figure 48 - Terminal Blocks for 6-Feed 480 Vac Input

539400001-J1 Rev F
NOTE:
Verify no rectiers are in-
stalled in the power bays at
this time.
1. Bring AC wires through the
knockouts in the top of the
assembly.
2. Connect to the terminal blocks as
shown in this figure. (Also clearly
labeled on the panel.)
3. Neatly group cables with tie
wraps.

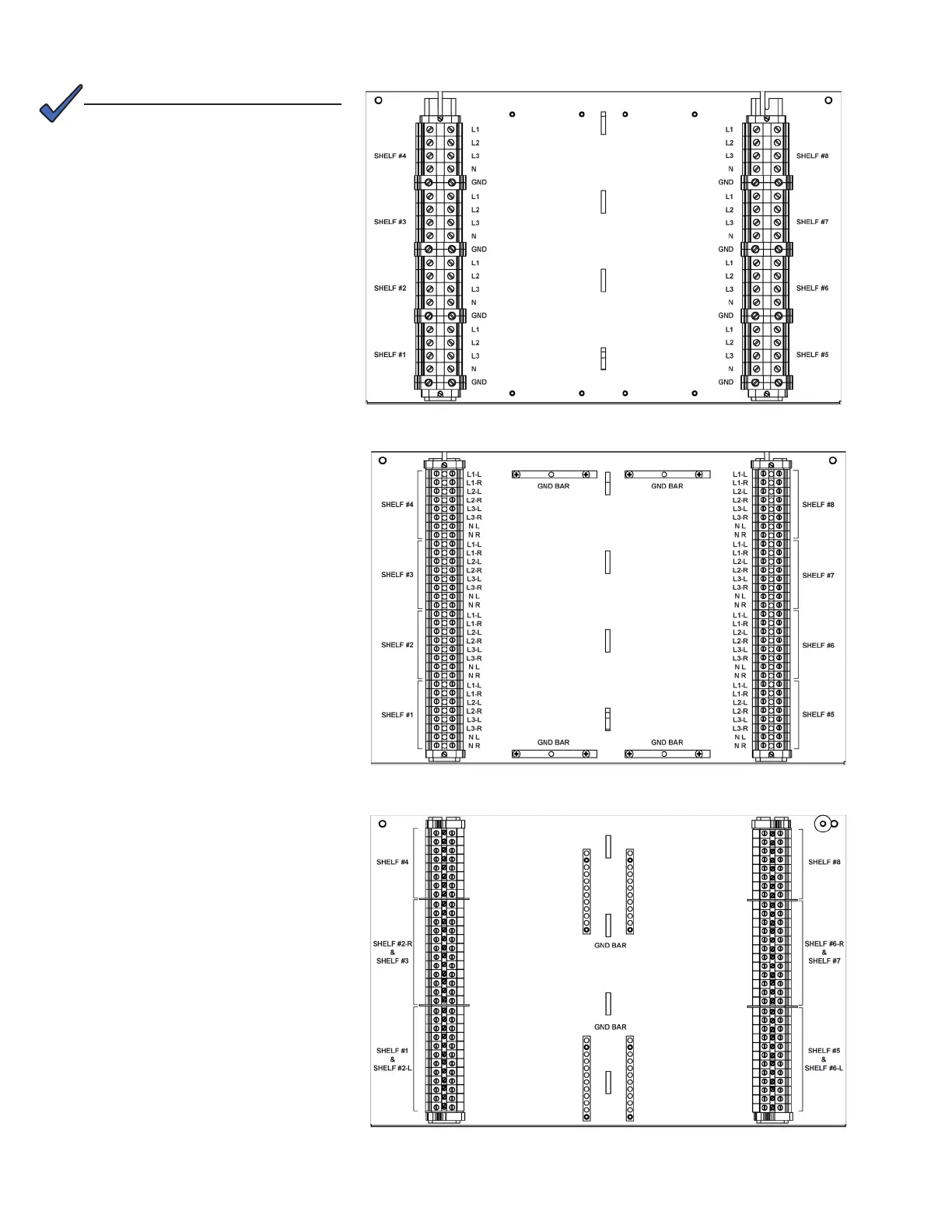

Figure 46 — Terminal Blocks for 8-feed 3 wire 208/480Vac input
Figure 47 — Terminal Blocks for 16-feed 208/480Vac input
Figure 48 — Terminal Blocks for 6-feed 480Vac input
