8.4 Distribution
8.4.1 High Capacity Breaker Panel Alarm Wiring
Connect the Common return for the breaker alarm to the left terminal block located on the front bottom of the
distribution shelf. Connect the Normally Closed contact to the right terminal block located on the front bottom of the
distribution shelf. See Figure 49.
NOTE:
Use #18-22 AWG Wires

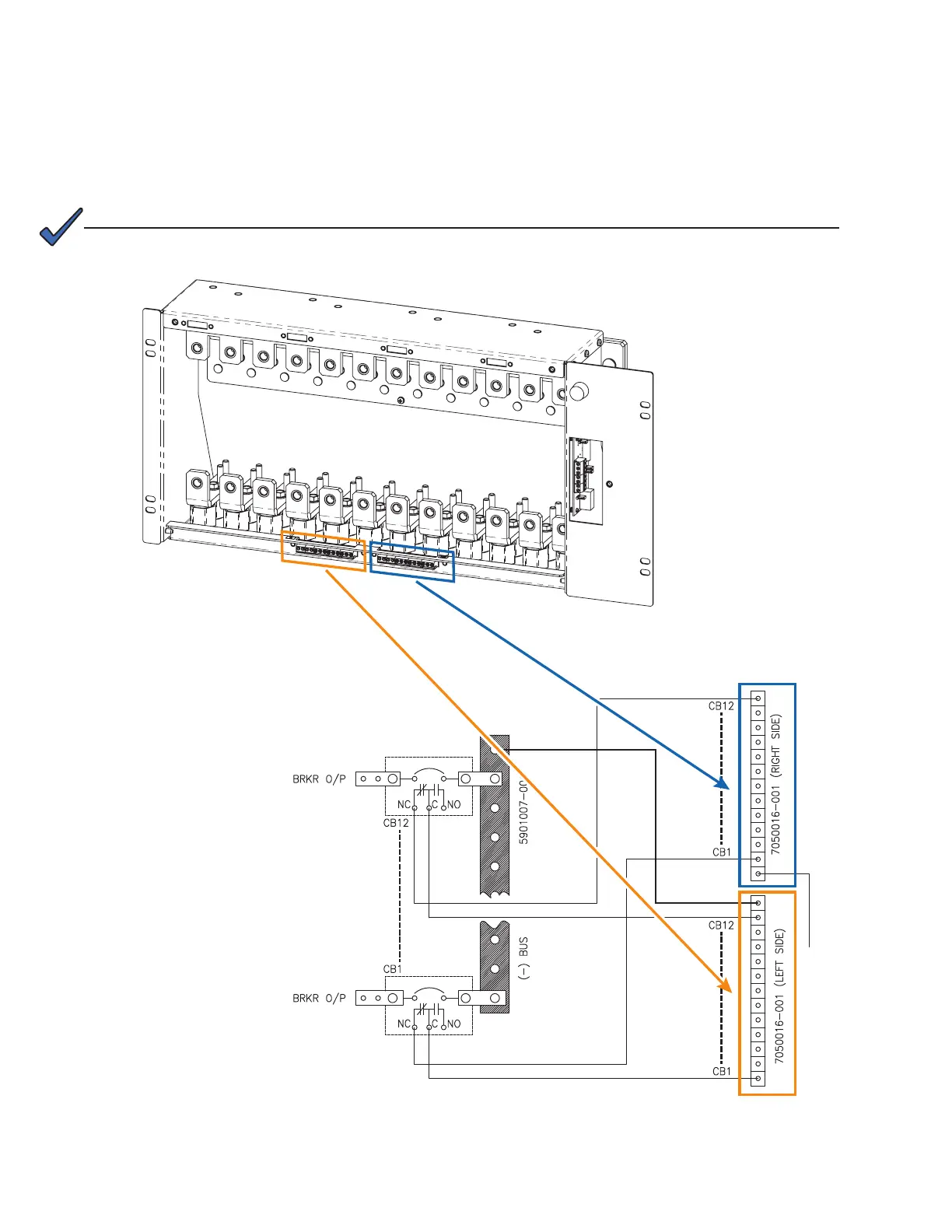

Figure 49 — High Capacity Breaker Panel Alarm Wiring
