439400001-J1 Rev F

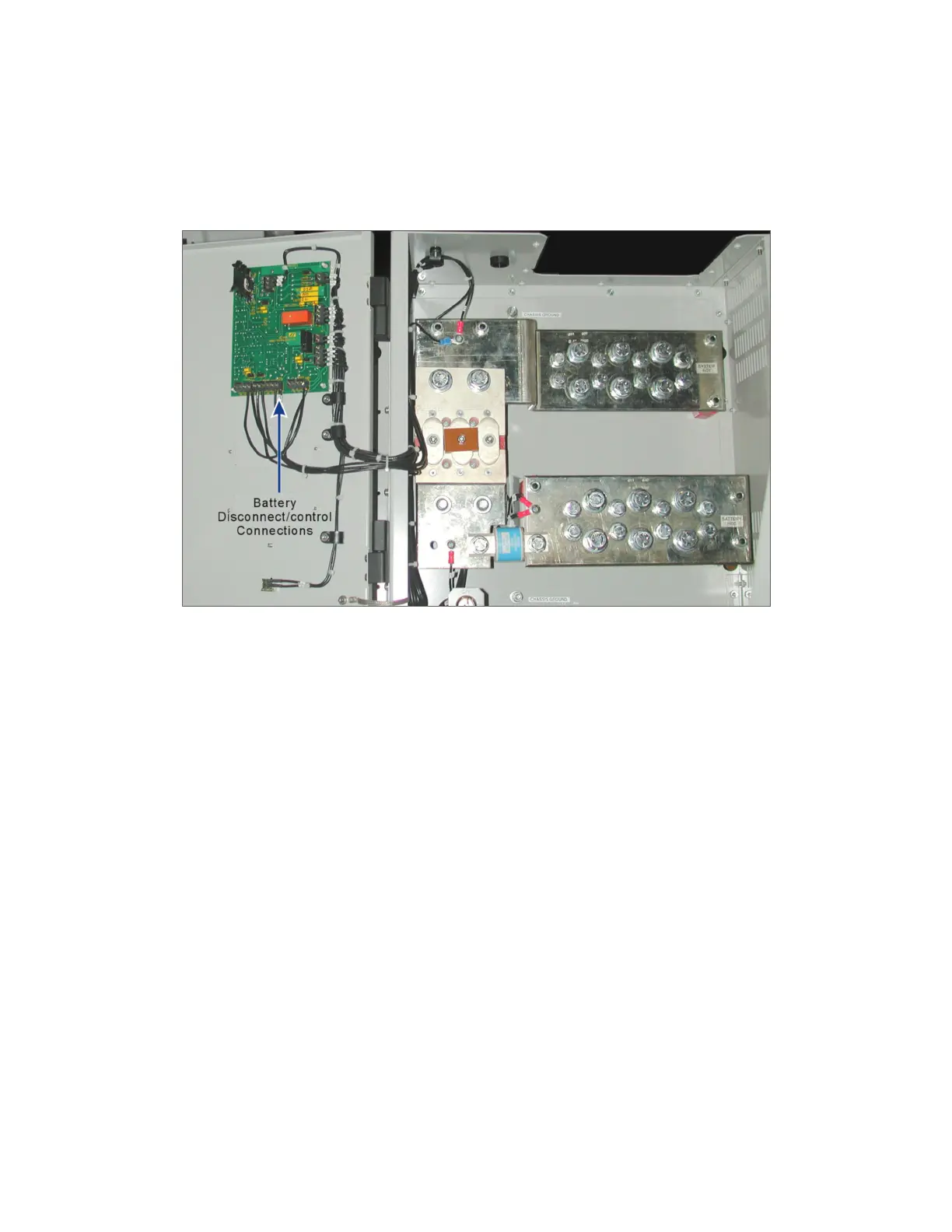

Figure 39 — Battery Disconnect Connections
7.5.2 LVBDs (purchased separately)
If battery disconnect contactors are used:
1. Connect a secondary power source, from either side of the LVBD, to the controller. (Refer to "4.6.3 Redundant
Input Power Module" on page 30)
2. Connect battery disconnect panels to the controller's battery fuse alarm input and LVBD control.
