4. Features
The basic system consists of two bays and inter-bay copper busbarss. The power bay converts AC to fully regulated
and filtered DC power, which is fed through a load shunt to the second bay for distribution.
Basic power system
• 1x 4000A power bay (8 shelves) or 1x 2000A power bay (4 shelves)
• 1x 6000A distribution bay
• System controller
Expandable to include
• 1x or more additional 4000A power bay (8000A or 12000A system capacity)
• 1x or more additional 2000A power bay (4000A, 6000A, 8000A, 10000A or 12000A system capacity)
• 1x or more additional 6000A distribution bays (12000A distribution capacity)
Distribution bayPower bay
Controller
AC Distribution
Assembly
8x CXRF 48V-4kW
shelves
or
8x CXRF-HP 48V-
12kW/480 shelves

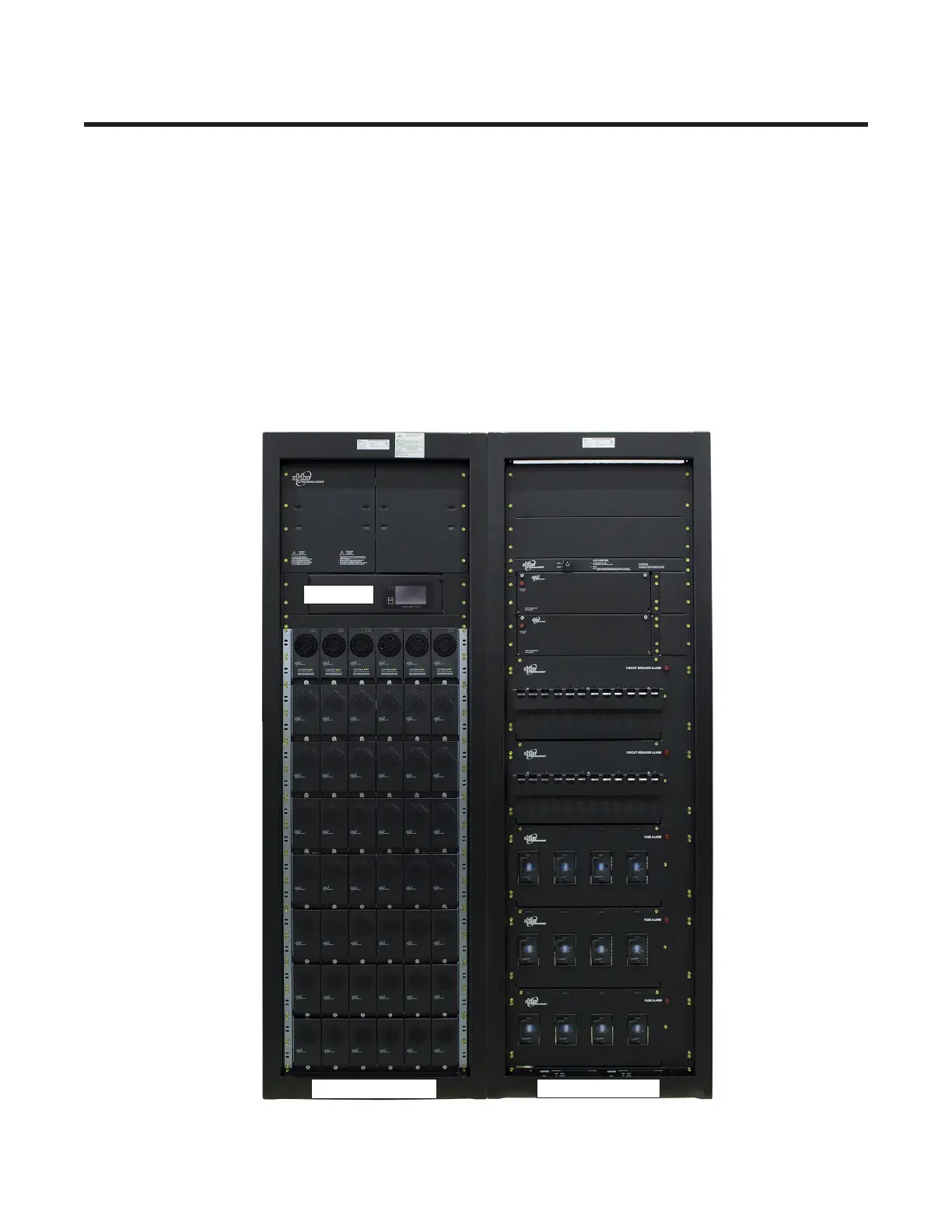

Figure 2 — Basic Power System
