7.7.3 Temperature Probe for Monitoring Battery Temperature
1. Locate the battery temperature probes coiled up in the power bay that has a controller.
2. Connect temperature probes from controller to battery termination post negative.
3. Pick a location at mid-height on one or more battery strings, which will provide a good average temperature
reading; i.e., away from heating or cooling sources.

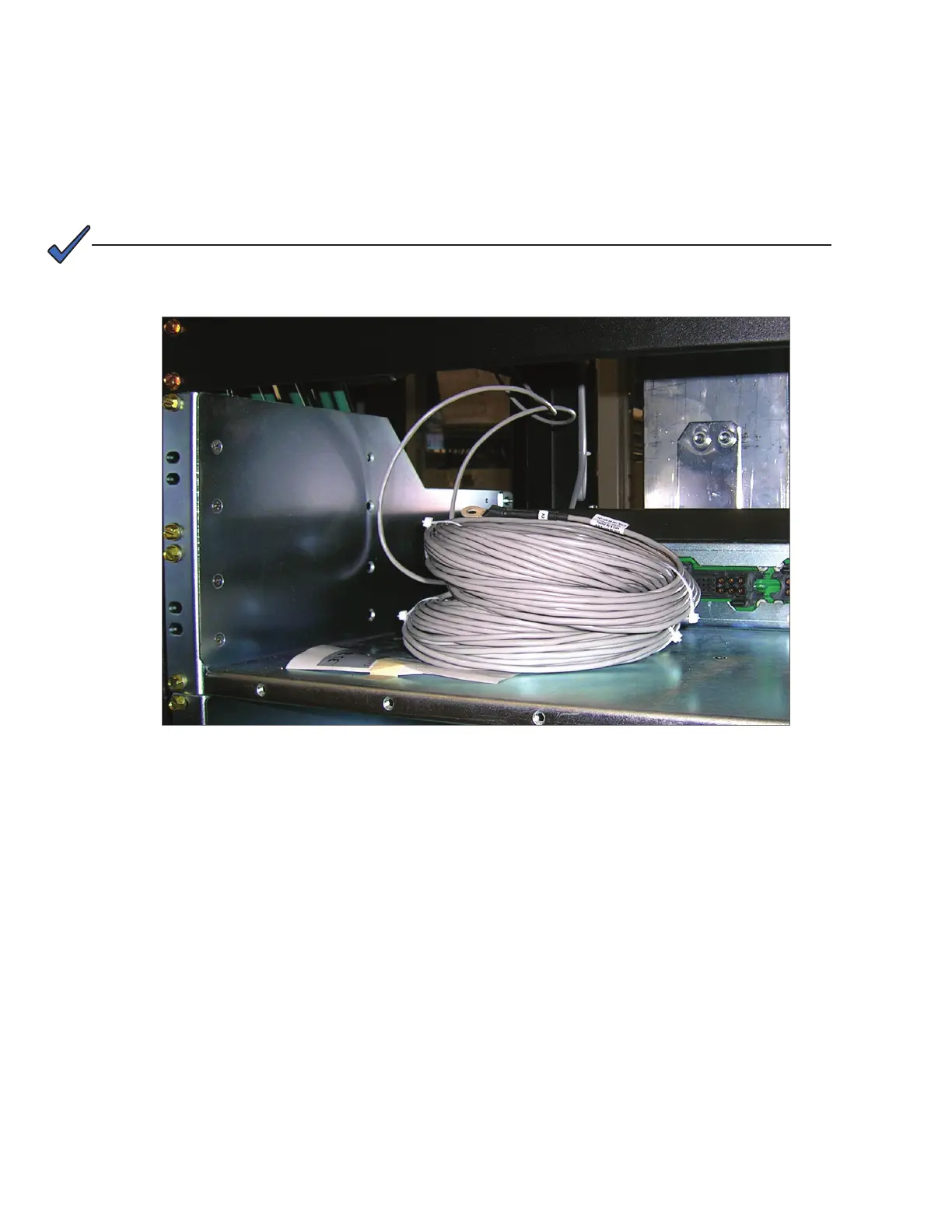

Figure 42 — Battery Temperature Probes
NOTE:
Connect both temperature probes to separate battery posts for a better average read-
ing of the battery.
