Alpha CXPS-C - Figure 14 - 2 X 6 Position High Capacity Breaker; Figure 15 - 4 X2 & 4 X1 Position High Capacity Breaker

219400001-J1 Rev F
4.3.7 2x 6 Position high Capacity Breaker Tier Feature
• Occupies 1 tier positions
• 2000A tier rating
• Can accept 6P (1200A) high capacity breaker
• Individually monitored by 1500A Shunts
• 2x landings per position 2 hole, 3/8" dia. on 1" center & 1/2" dia. on 1 3/4" center
• Option for whole Tier LVD 2000A disconnect
4.3.8 4x 2 & 4x 1 Position high Capacity Breaker Tier Features
• Occupies 1 tier positions
• 2000A tier rating
• Can accept 4x1P (250A Max) high capacity breaker
• Can accept 4x 2p (300A-400A) high capacity breaker
• Individually monitored by 400A and 800A Shunts
• 1 Position 1x landings per position 2 hole, 3/8" dia. on 1" center
• 2 Position 2x landings per position 2 hole, 3/8” dia. on 1" center & 1/2” dia. on 1 3/4" center
• Option for whole Tier LVD 2000A disconnect

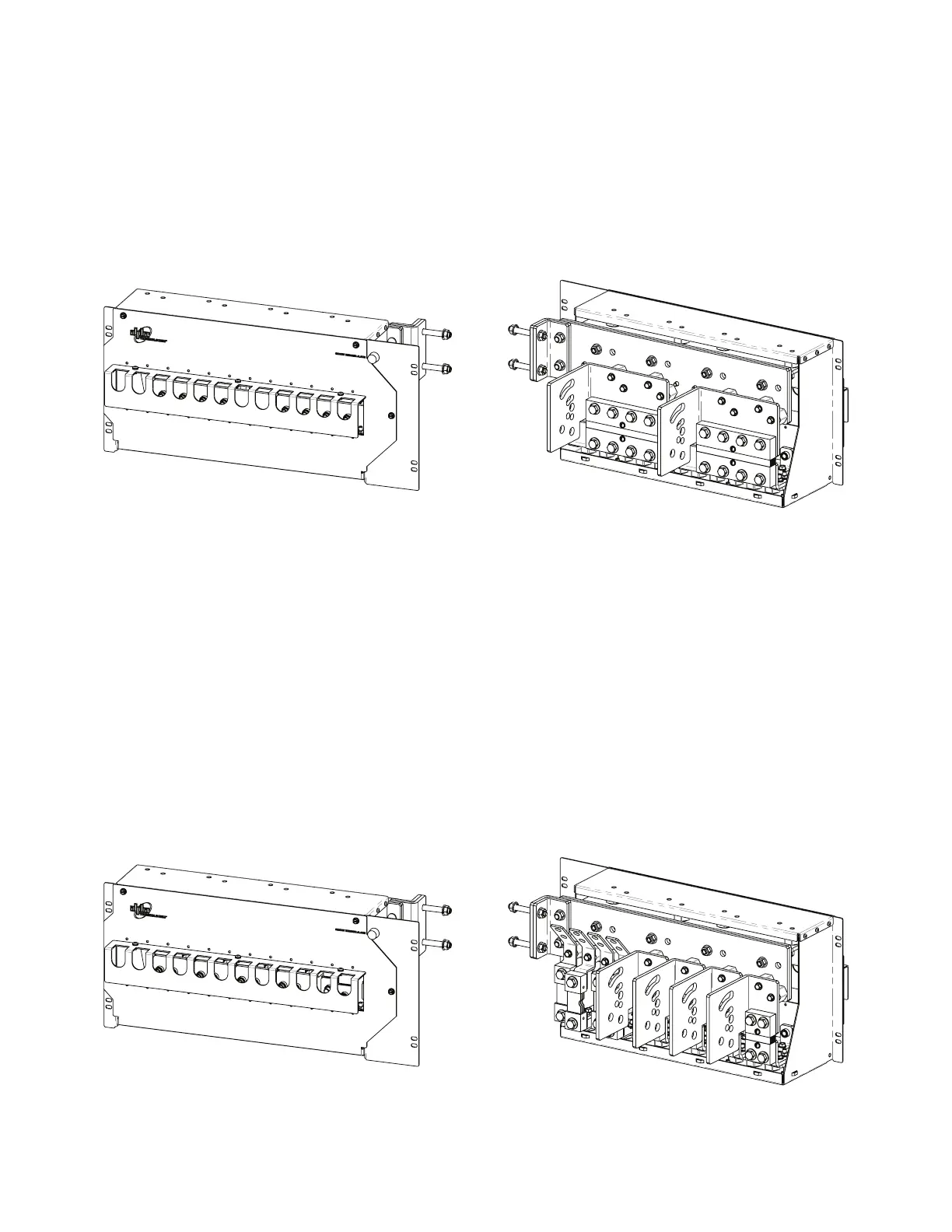

Figure 14 — 2x 6 Position High Capacity Breaker
Figure 15 — 4x2 & 4x1 Position High Capacity Breaker
