This section contains a brief overview of important components on the
Nios development board (see Figure 2). Links to the component
manufacturers are included when available.
A complete set of schematics, a physical layout database, and GERBER
files for the Nios development board are installed in the documents
directory for the Nios development kit.

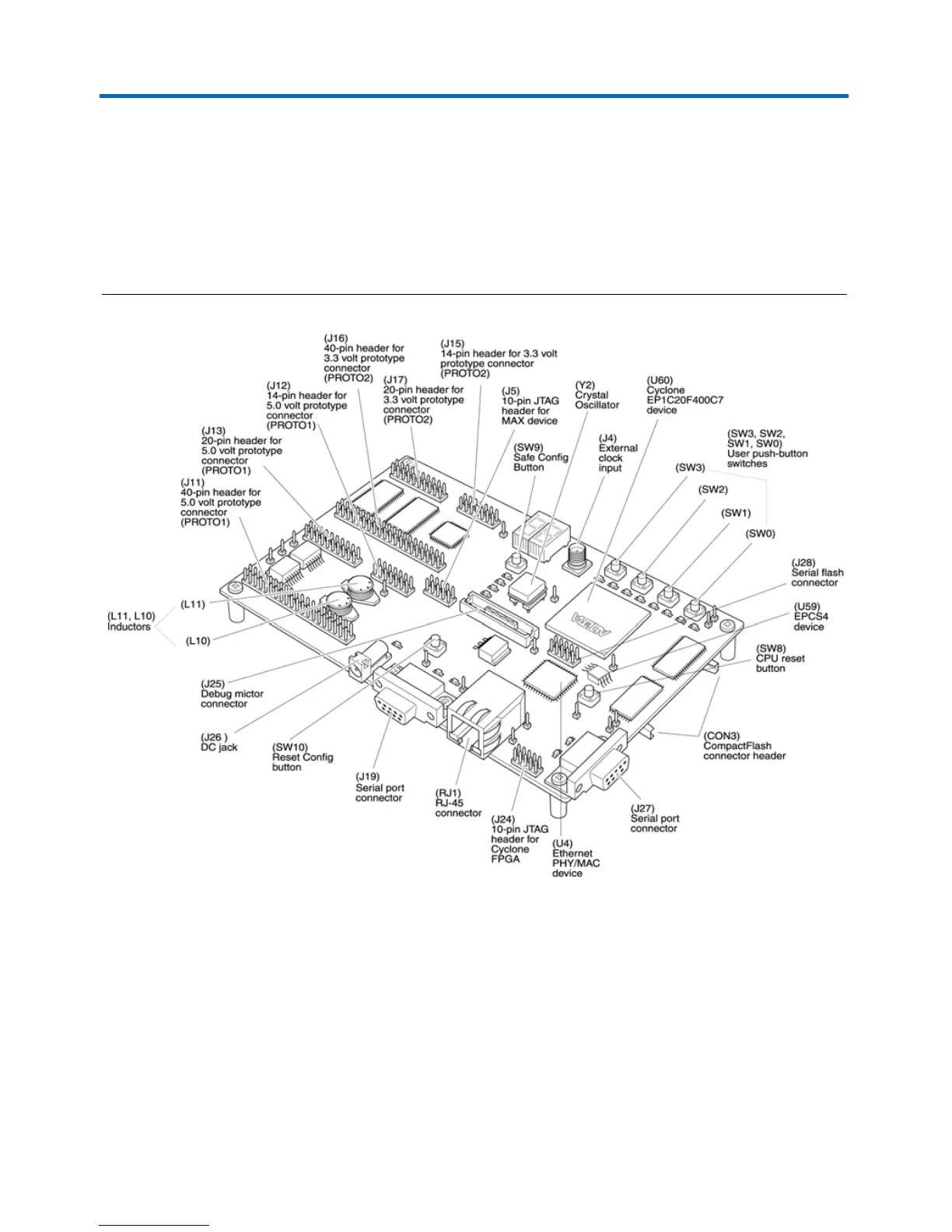

Figure 2. Nios Development Board Components
