22 Altera Corporation
Board Components Nios Development Board Reference Manual, Cyclone Edition

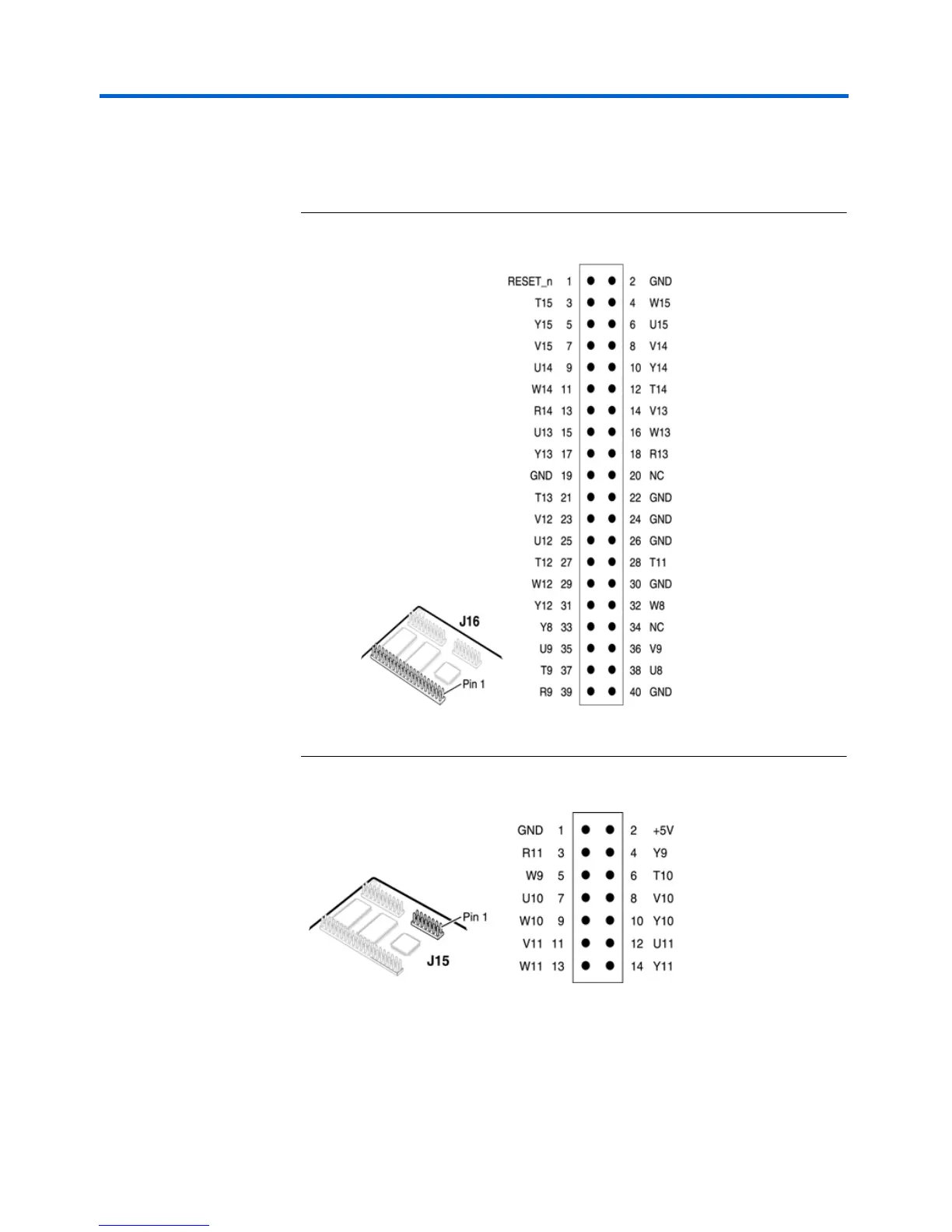

Figure 8 on page 22, Figure 9 on page 22 and Figure 10 on page 23 show
connections from the PROTO2 expansion headers to the Cyclone device.
Unless otherwise noted, labels indicate Cyclone device pin numbers.
Figure 8. Expansion Prototype Connector - J16
Figure 9. Expansion Prototype Connector - J15
