BOOM BARRIER BV586866
PRODUCT DESCRIPTION
Barrier dimensions with installed RBN8 boom — see Fig. 2; with installed RBN6- round
boom — see Fig. 4. The use of RBN6-boom (optional) is recommended in the areas with high
wind loads. When installing asupporting post (Fig. 3), take into account that the eective boom
length (L
1
) will be reduced.
The service life of the barrier is 8years, but no more than 1.000.000 full cycles provided that
maintenance, installation and operating rules are observed. The operating life of the barrier de-

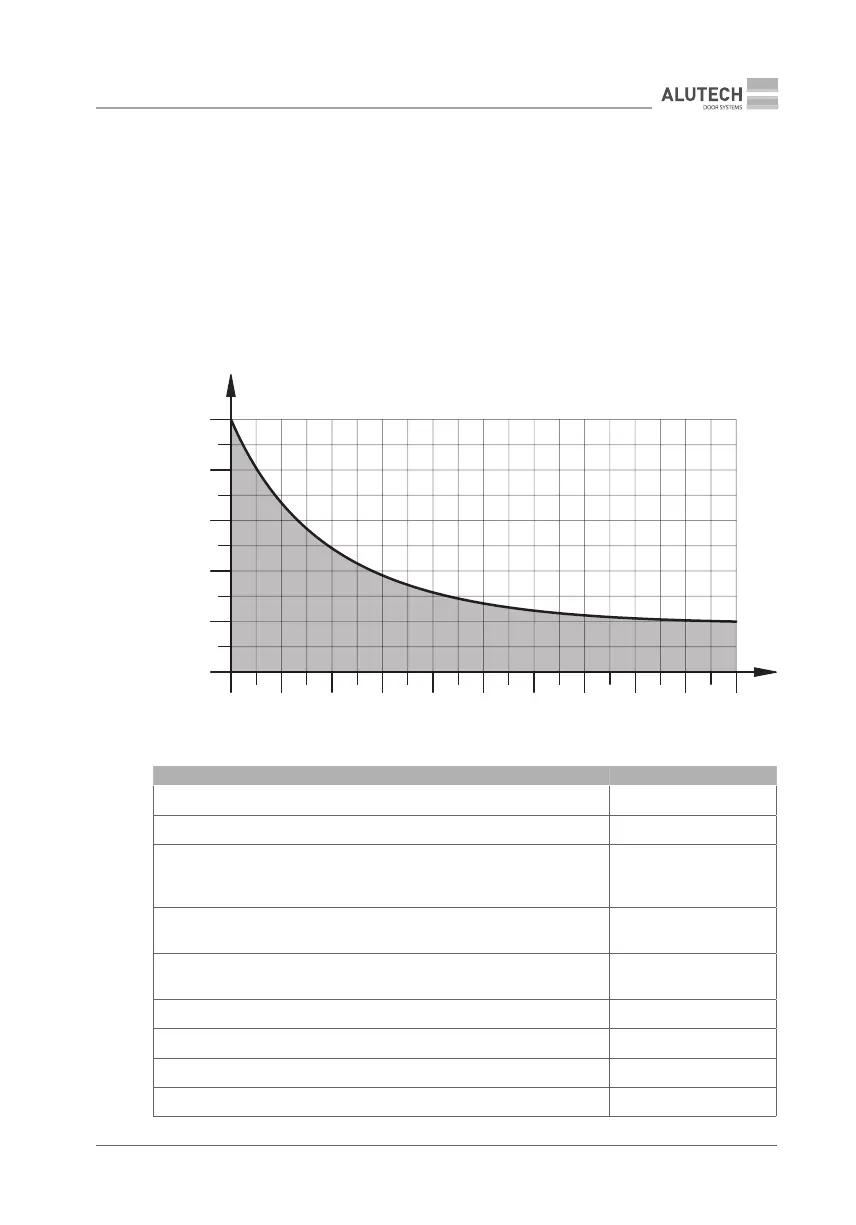

pends on the operating conditions. Use Table 2to determine the expected operating life (number
of complete cycles):
• Sum up the life cycle percentages that apply to your barrier operating conditions.
• Draw a vertical line on the chart from the point of the total value until it intersects the curve.
• Draw a horizontal line from the intersection point on the chart to the lifecycle value.
1 000 000
800 000
600 000
400 000
200 000
0 10 20 30 40 50 60 70 80 90 100
%
Table 2
OPERATING CONDITIONS LIFECYCLE PERCENTAGE, %
Eective boom length (L
1
) exceeds 5 m 5
Movable support is installed 10
Frequent interruptions of movement following the commands of security
devices or STOP control commands (heavy use facilities, parking lots,
checkpoints, residential roads, etc.)
15
Value 3.0. of P1–F1 setting
(section ‘7.2. Setting operation parameters’)
5
Movement speed value in settings exceeds 7
(section ‘7.2. Setting operation parameters’ P6–F1 and P6–F2)
10
Unstable power line voltage; voltage surges 5
Ambient temperature above +40° and below 0° 5
Presence of sand and dust (sand or dust storms), salt mist, etc. 10
High wind load (> 20 m / s) 5
