ALZRC DEVIL X360 - 页 10

9

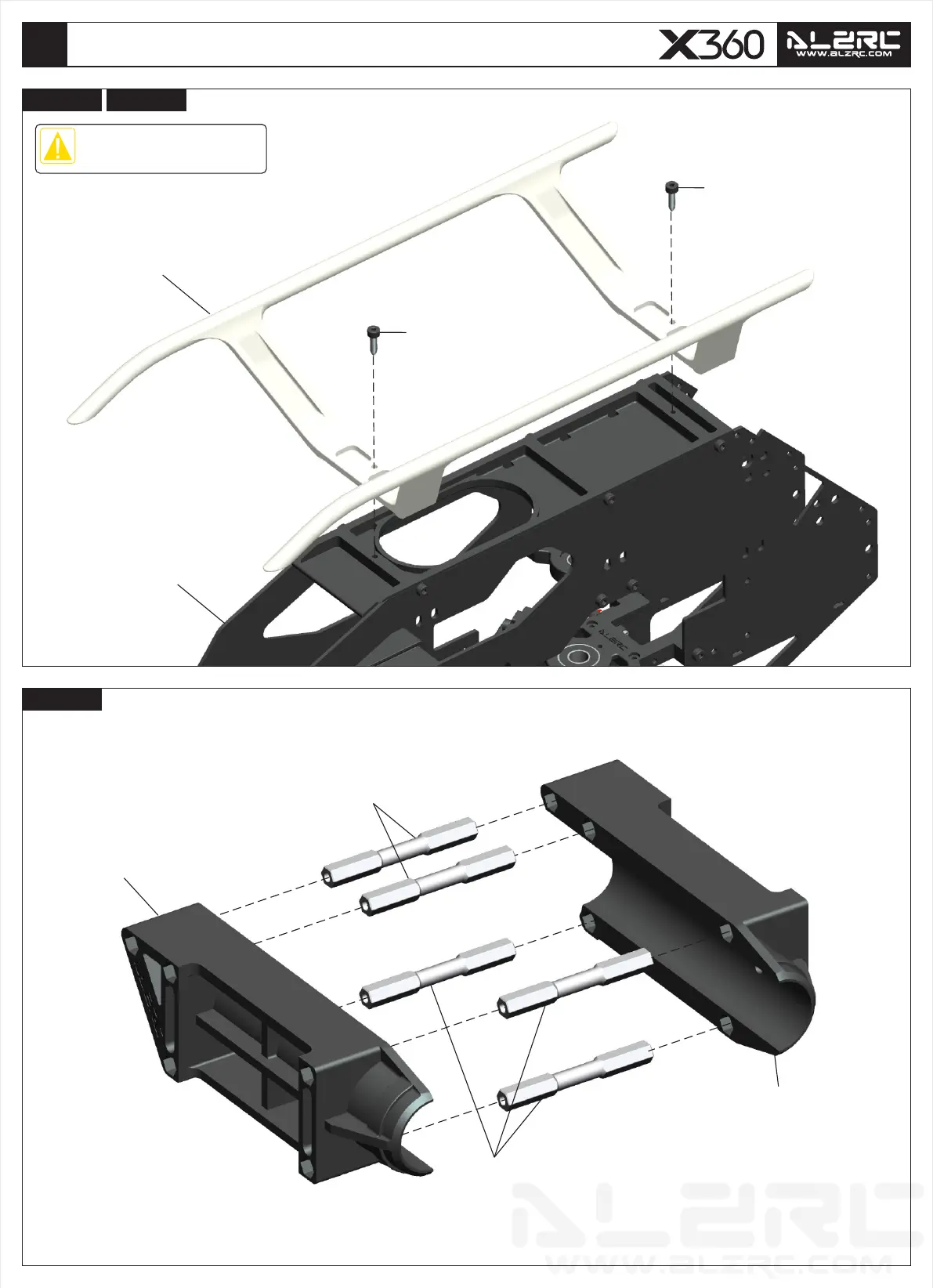

组装说明 ASSEMBLY SECTION
尾管固定座
Tail Boom Mount
Chapter 12
脚架
Landing Skid
Chapter 11
DX360-C DX360-D
DX360-E
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
第10步组装完成
Assembled in Chapter 10
脚架
Landing Skid
不锈钢六角柱
Stainless Steel Hexagonal Bolt
H4x33.6mm
不锈钢六角柱
Stainless Steel Hexagonal Bolt
H4x33.6mm
尾管固定座-左
Tail Boom Mount - L
尾管固定座-右
Tail Boom Mount - R
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
