ALZRC DEVIL X360 - 页 19

组装说明 ASSEMBLY SECTION
18

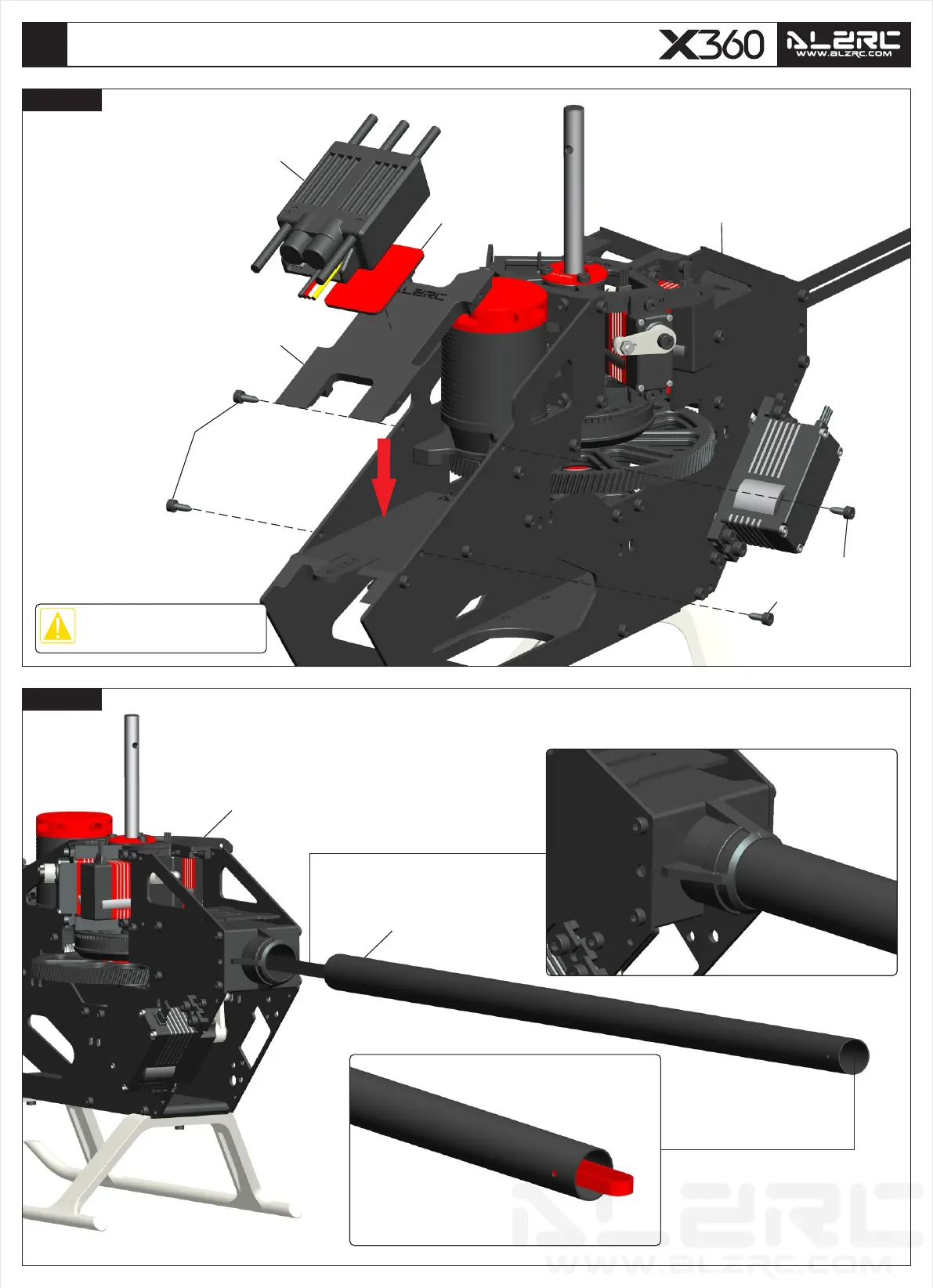

无刷电调
Brushless ESC
Chapter 27
无刷电调
Brushless ESC
双面胶
Double Side Tape
电调固定板
ESC Mount
第26步组装完成
Assembled in Chapter 26
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x6mm
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x6mm
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
尾管-皮带版
Tail Boom-Belt Version
Chapter 28
DX360-H
尾管-皮带版
Tail Boom-Belt Version
400mm
第27步组装完成
Assembled in Chapter 27
将尾管插入尾管固定座。
Insert the tail boom into the boom clamp.
将尾齿传动皮带穿过尾管抽出。
Pass the tail belt through the tail boom
and pull it out.
DX360-G
