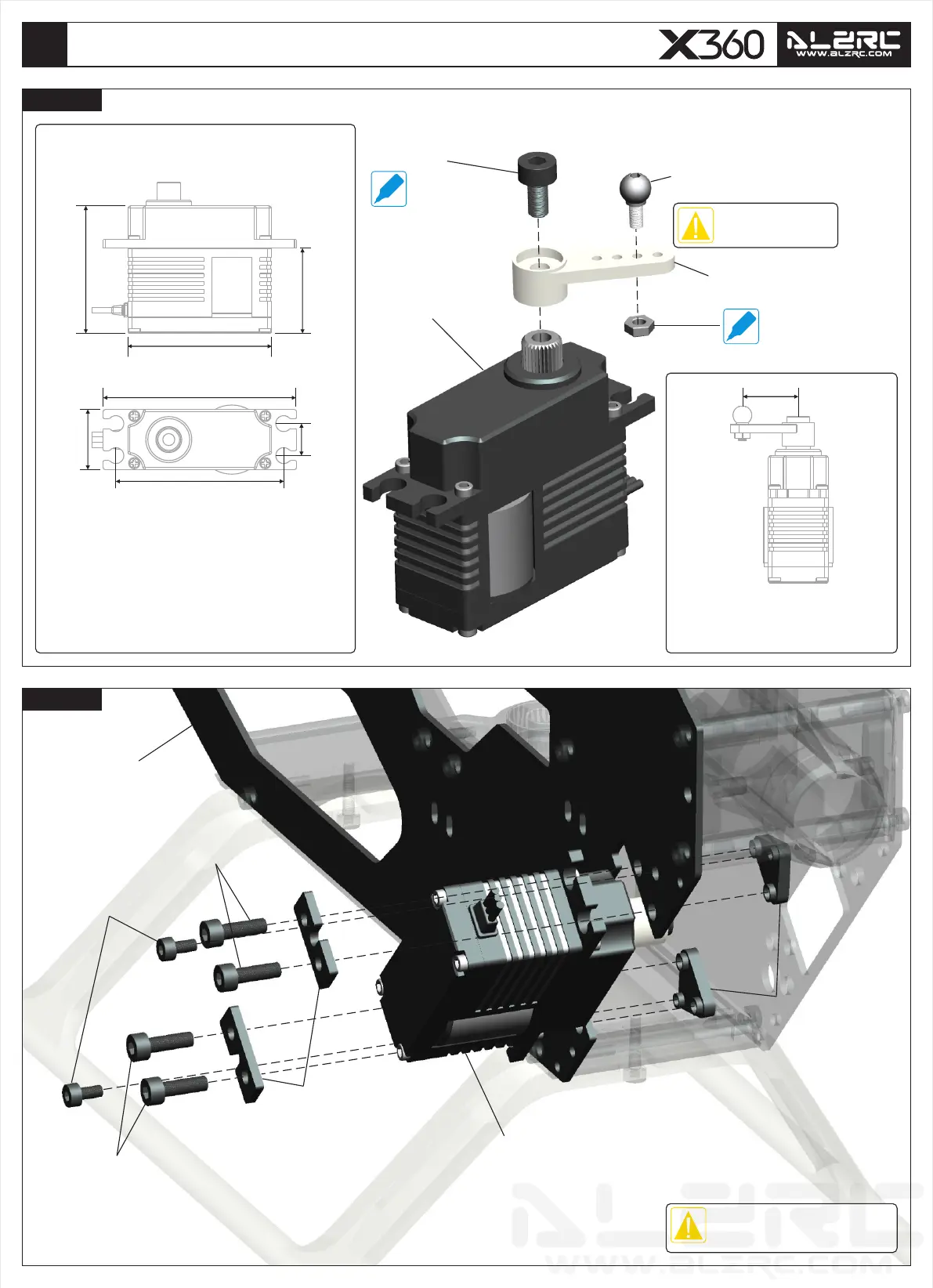

组装说明 ASSEMBLY SECTION
11
中型数字金属舵机
Medium Digital Metal Servo
Chapter 15
24
3
圆头内六角螺丝
Socket Button Head Screw
M3x6mm
球头 M2
Linkage Ball M2
Φ4.70x9.0mm
禁止过度拧紧。
Do not over tighten.
舵机臂
Servo Arm
螺帽 M2
Nut M2
24
3
中型数字金属舵机
Medium Digital Metal Servo
建议使用扭力 4Kg*cm 以上、
速度 0.06~0.04秒舵机。
Recommend to use above 4Kg*cm
torsion and with speed of 0.06~0.04s
servo.
32mm
21.5mm
36mm
15mm
48.5mm
41mm
8mm
舵机尺寸参考
Reference Size for Servo
中型锁尾舵机安装
Installation of Medium Locked Rudder Servo
Chapter 16
DX360-E
DX360-E
9-11mm
舵机臂球头与螺丝中心距约：9-11mm。
The distance between the central of
linkage ball and servo arm screw
about 9-11mm.
圆头内六角螺丝
Socket Button Head Screw
M2x4mm
圆头内六角螺丝
Socket Button Head Screw
M2.5x8mm
圆头内六角螺丝
Socket Button Head Screw
M2.5x8mm
舵机固定片-中型
Servo Washer-Medium
15x6x1.2mm
舵机固定片
Servo Mount Washer
第15步组装完成
Assembled in Chapter 15
第14步组装完成
Assembled in Chapter 14
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
